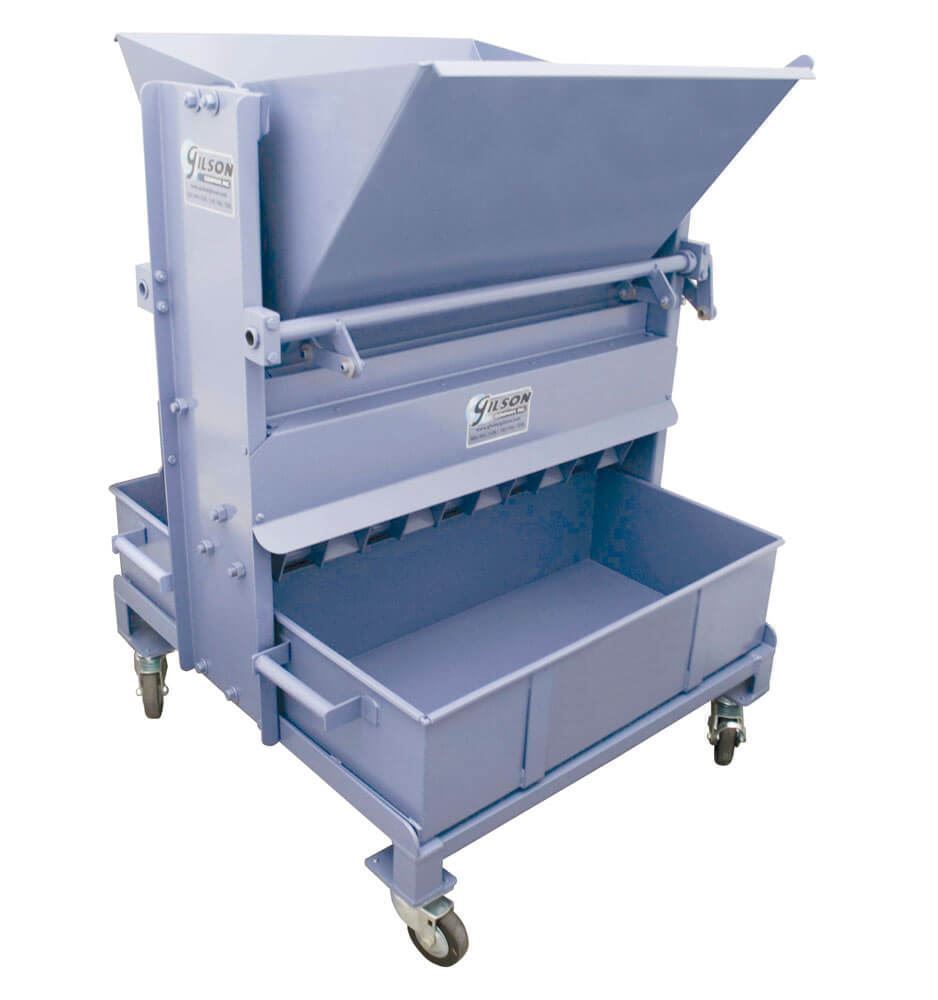

Gilson California Fixed Chute Sample Splitter

Product Files
California Fixed Chute Sample Splitter w/ Steel Pans

California Fixed Chute Sample Splitter w/ Steel Pans

Model: SP-12CA
$3030.0000
Price: $3,030.00
California Fixed Chute Sample Splitter w/ Aluminum Pans

California Fixed Chute Sample Splitter w/ Aluminum Pans

Model: SP-12CG
$3165.0000
Price: $3,165.00

California Fixed Chute Sample Splitters were designed by and constructed for the California Department of Transportation to meet CalTrans 201 requirements for coarse aggregate splitters. The large capacity, 1.9ft³ (53.8L) gate-release hopper assures accuracy when mixing and dividing bulk aggregate into representative samples. Ten 2.25in (57.2mm) fixed chutes process particle sizes up to 1.125in (28.6mm). The sturdy, heavy-gauge welded steel frame with painted, baked finish built for extended service life with heavy use. Swivel casters permit mobility and easy storage. Reinforced pans have sturdy handles for convenient handling of heavy samples.

SP-12CA model is supplied with standard steel sample pans

SP-12CG model is identical to SP-12CA models, except they include sample pans fabricated of light-weight aluminum for easier handling when loaded

Features:

  • Compliant with CalTrans 201 specifications for coarse aggregate splitters
  • Large-capacity gate-release hopper delivers representative samples
  • Durable steel frame designed for extended service life
  • Swivel casters promote lab mobility
  • Compliant with ASTM, AASHTO and California standards

Included Items:

  • California Fixed Chute Sample Splitter, with steel or aluminum sample pans
    • Two 1.2ft³ (34L) capacity, welded steel sample pans (with SP-12CA model), or
      Two 1.2ft³ (34L) capacity aluminum sample pans (with SP-12CG model)

Accessories:

Maximum Particle Size 1.125in (28.6mm)
Hopper Capacity 1.9ft³ (53.8L)
Number of Chute Bars 10
Chute Width 2.25in (57.2mm)
Product Dimensions 29 x 28 x 46in (737 x 711 x 1,169mm), WxDxH
Estimated Shipping Weight

SP-12CA: 238.0lb (107.96kg)

SP-12CG: 215.0lb (97.52kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Maximum Particle Size 1.125in (28.6mm)
Hopper Capacity 1.9ft³ (53.8L)
Number of Chute Bars 10
Chute Width 2.25in (57.2mm)
Product Dimensions 29 x 28 x 46in (737 x 711 x 1,169mm), WxDxH
Estimated Shipping Weight

SP-12CA: 238.0lb (107.96kg)

SP-12CG: 215.0lb (97.52kg)

Meets Standard(s):
