3in Acrylic Frame Precision Electroformed Sieve, 32µm

3in (74mm) diameter Precision Electroformed Acrylic Frame Test Sieve has ASTM E161 electroless nickel mesh with 32µm openings and an acrylic frame. The overall height is 1.46in (37.1mm) and the stacked height is 1.38in (35.1mm).

Required for the GA-6 Gilsonic AutoSiever Sonic Sifter.

Features

• Individually serial numbered
• Greater accuracy of ±2µm for precision particle sizing operations
• Compliant with ASTM E161 requirements for Compliance Test Sieves

Included Items

• 3in Acrylic Frame Test Sieve, Stainless, 32µm

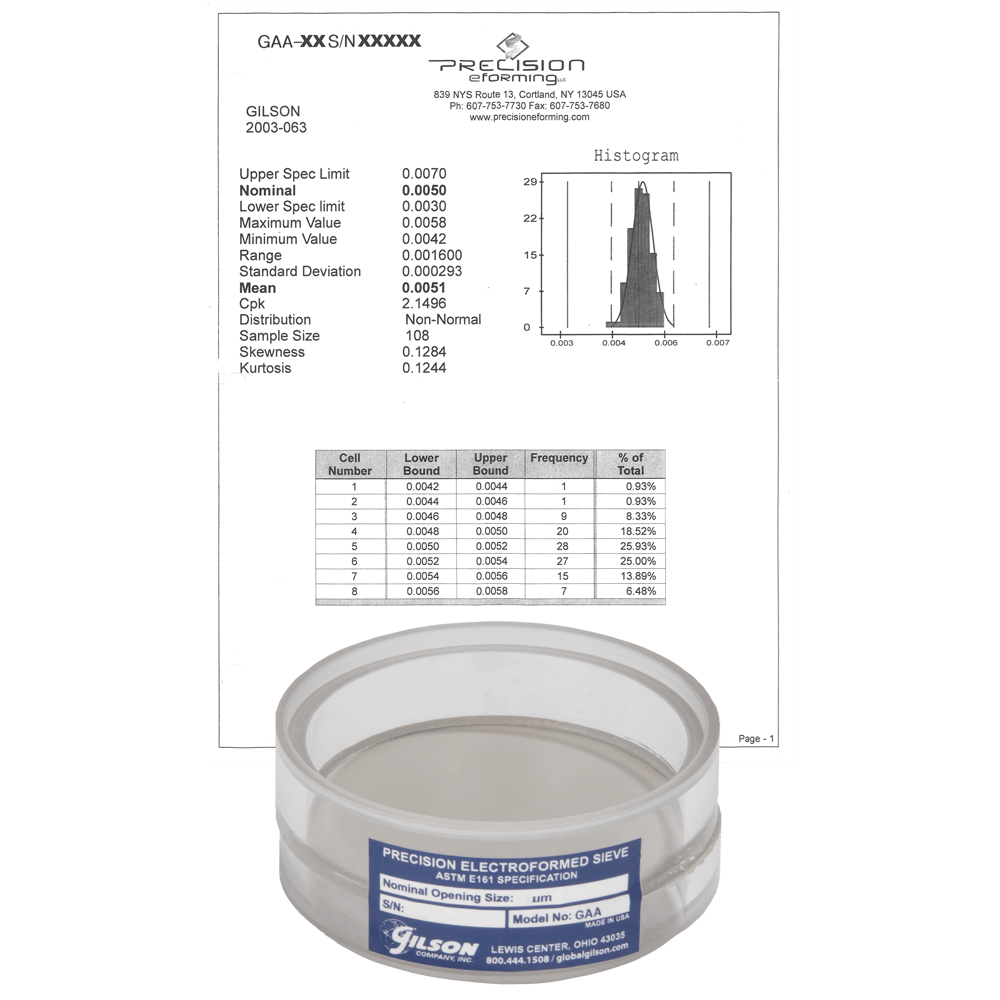

• Certificate of Conformance to ASTM E11 requirements

Accessories

• Stainless Sieve Pans nest underneath sieves to collect fines.
• Stainless Sieve Covers prevent sample loss during agitation.
• 3in Acrylic Sieve Adapter is necessary to use a stainless steel pan with a 3in Acrylic Sieve.
