W.S. Tyler® Coarse Sieve Shaker

W.S. Tyler® Coarse Sieve Shaker (115V / 60Hz)

W.S. Tyler® Coarse Sieve Shaker (115V / 60Hz)

Model: SS-82
$1506.5000
Price: $1,506.50
W.S. Tyler® Coarse Sieve Shaker (220V / 50Hz)

W.S. Tyler® Coarse Sieve Shaker (220V / 50Hz)

Model: SS-82F
$1506.5000
Price: $1,506.50

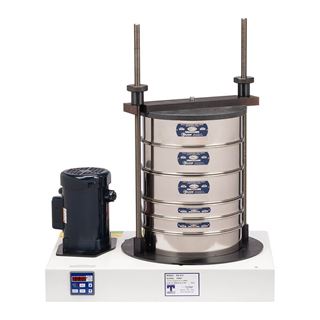

W.S. Tyler® Coarse Sieve Shaker is durable and versatile enough for lab or field use for separations of coarse materials between No. 4—No. 100 (4.75mm—150µm) size ranges. An effective circular sifting motion is imparted to sieves via the 1/4hp motor. The built-in digital timer with a 99-minute range is accurate to 0.1 seconds.

The shaker accommodates 8in/200mm and 12in/300mm sieves with the included adapter for the 8in/200mm sieves. Shaker accepts six full-height or thirteen half-height 8in/200mm sieves, four full-height or six half-height 12in/300mm sieves or three intermediate-height sieves with a pan. Mounting holes are provided in the frame for securing the unit to a table or benchtop.

8in/200mm Sieve Capacity
(Full-Height / Half-Height)
12in/300mm Sieve Capacity
(Full-Height / Half-Height)
12in Sieve Capacity
(Intermediate-Height)
6 / 134 / 63

Features:

  • Powerful 1/4hp motor enables separations of coarse materials between No. 4—No. 100 (4.75mm—150µm)
  • Digital timer is built into machines and has the accuracy of 0.1 second
  • Mounting holes make it easy to secure units to a table or benchtop

Included Items:

  • W.S. Tyler® Coarse Sieve Shaker (115V/60Hz or 230V/50Hz)
  • Adapter for 8in Sieves

Accessories:

Related blogs:

Sieve Frame Diameter 12in (305mm), 8in (203mm), 8in, 12in, 200mm, & 300mm
Particle Size Range No.4—No.100 (4.75mm—150µm)
Motion/Agitation Circular
Sieve Capacity with Pan

Full Height: (6) 8in/200mm Sieves or (4) 12in/300mm Sieves

Half Height: (13) 8in/200mm Sieves or (8) 12in/300mm Sieves

Intermediate Height: (3) 12in Sieves

Mounting Capability Yes
Timing Capacity Up to 99 Minutes
Electrical

SS-82: 115V / 60Hz / 4.4Amps

SS-82F: 230V / 50Hz / 2.9Amps

Product Dimensions 28 x 22 x 34in (711 x 559 x 864mm), WxDxH
Estimated Shipping Weight 80.0lb (36.29kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Sieve Frame Diameter 12in (305mm), 8in (203mm), 8in, 12in, 200mm, & 300mm
Particle Size Range No.4—No.100 (4.75mm—150µm)
Motion/Agitation Circular
Sieve Capacity with Pan

Full Height: (6) 8in/200mm Sieves or (4) 12in/300mm Sieves

Half Height: (13) 8in/200mm Sieves or (8) 12in/300mm Sieves

Intermediate Height: (3) 12in Sieves

Mounting Capability Yes
Timing Capacity Up to 99 Minutes
Electrical

SS-82: 115V / 60Hz / 4.4Amps

SS-82F: 230V / 50Hz / 2.9Amps

Product Dimensions 28 x 22 x 34in (711 x 559 x 864mm), WxDxH
Estimated Shipping Weight 80.0lb (36.29kg)
