Triaxial Analog Component Set with 1,000lbf Load Ring

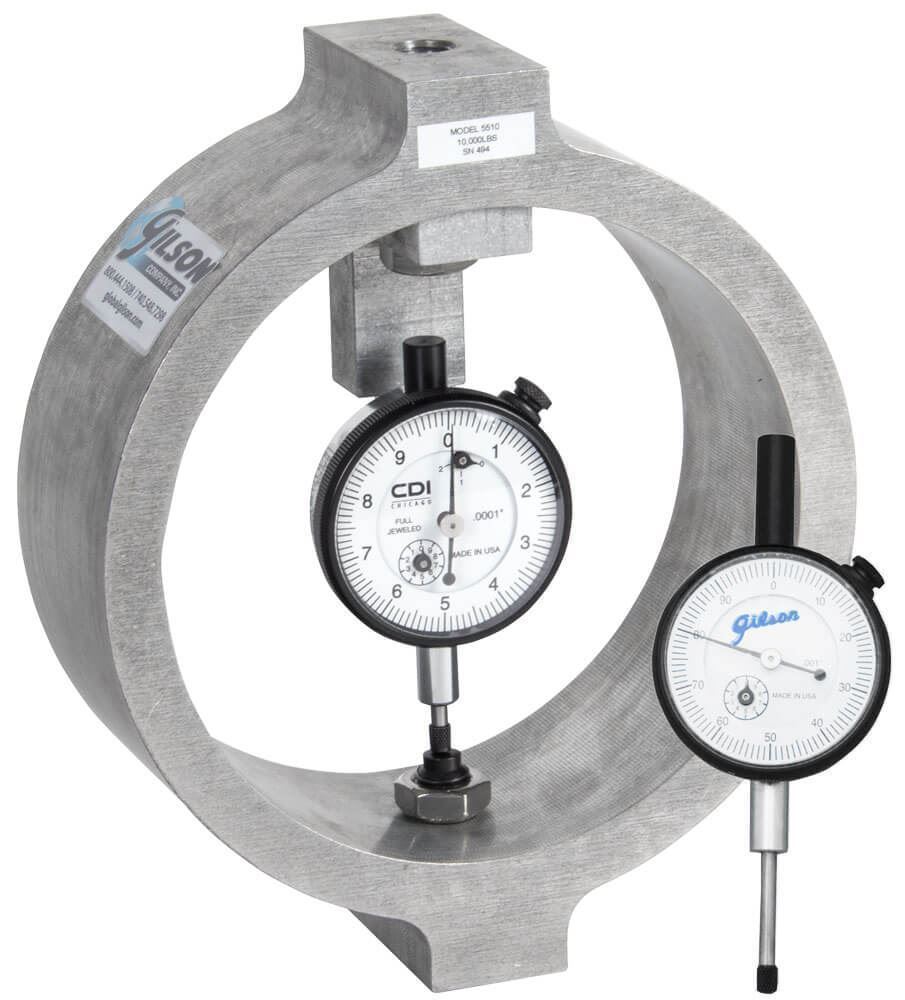

Triaxial Analog Component Set includes a 1,000lbf Load Ring is used with Load Frames for measuring the triaxial shear strength of the soil. The set contains an HM-422 1,000lbf Load Ring and an MA-334 1x0.001in Mechanical Dial Indicator. Load Ring is machined from high-strength aluminum alloy for repeatable compression measurements. Load Ring is supplied with a calibration chart.

Features:

• 1,000lbf Load Ring
• Allows for repeatable compression measurements

Included Items:

• 1in Mechanical Dial Indicator, 1x0.0001in Resolution
• 1,000lbf Load Ring

Accessories:

• MA-334 1in Mechanical Dial Indicator, 1x0.001in Resolution provide accurate readings of displacement
• HM-422 1,000lbf Load Ring for repeatable measurements under load
• Loading Buttons thread into load ring mounts to provide a uniform contact point for testing fixtures
