Base Plate for SCC Passing Ability Test

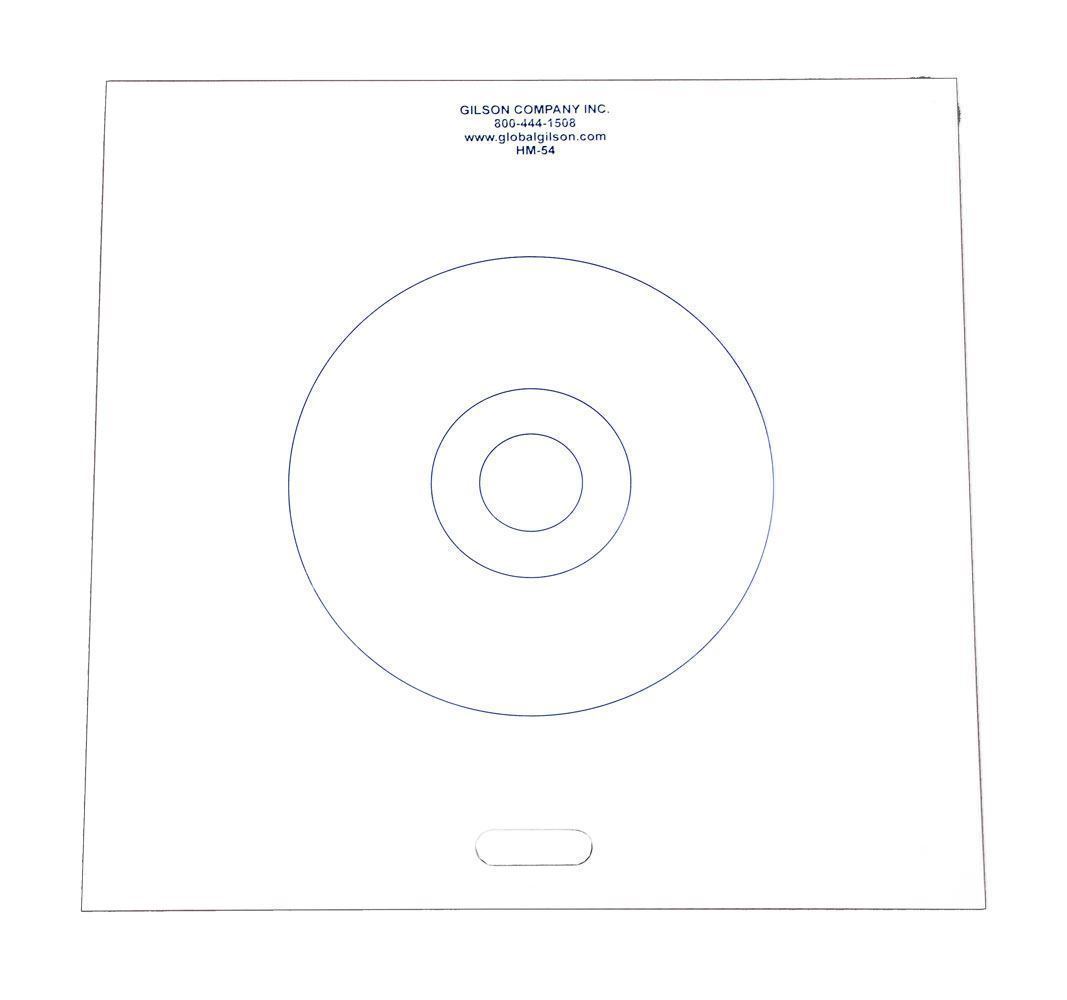

Base Plate for SCC Passing Ability Test is used with a J-Ring and a Modified Slump Cone for testing the passing ability of Self-Consolidating Concrete (SCC). It is made of plastic and has cut-out handles. The base plate is constructed with inscribed concentric circles as required to perform slump flow testing in accordance with ASTM C1611. The inner circle has a 4.25in (108mm) diameter, the middle circle has a 8.25in (209.6mm) diameter, and the outer circle has a 20in (508mm) diameter. Base Plate is sold separately or included as part of SCC Passing Ability Set for J-Ring Test.

Features:

• Inscribed concentric circles
• ASTM-compliant

Included Items:

• Base Plate for SCC Passing Ability Test
