Profoscope Rebar Locators / Cover Meters

Product is unavailable.

This model has been discontinued. Please see our other rebar and cover meters.

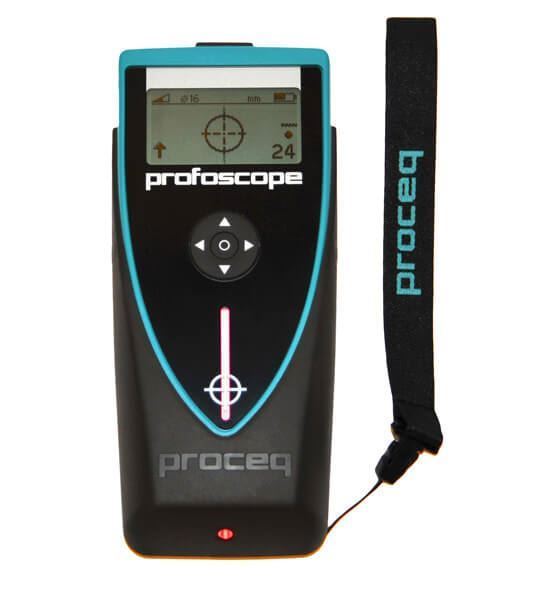

The Profoscope+ Rebar Locators/Cover Meters by Proceq are versatile, fully integrated rebar detectors and cover meters with detection capabilities to a maximum depth of 7in (178mm). Both Profoscope units are powered by two AA batteries and have a battery life of up to 50 hours with the display backlight off.

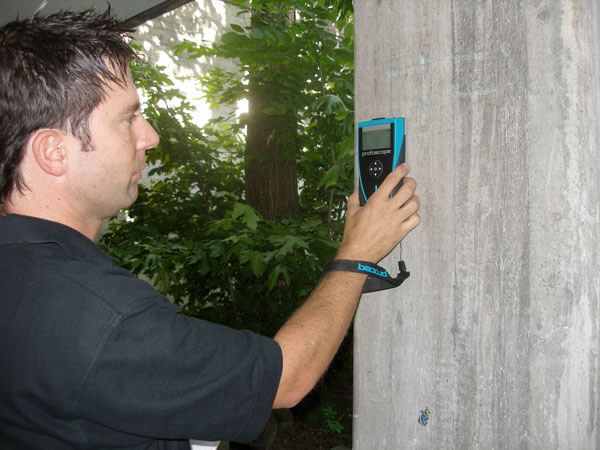

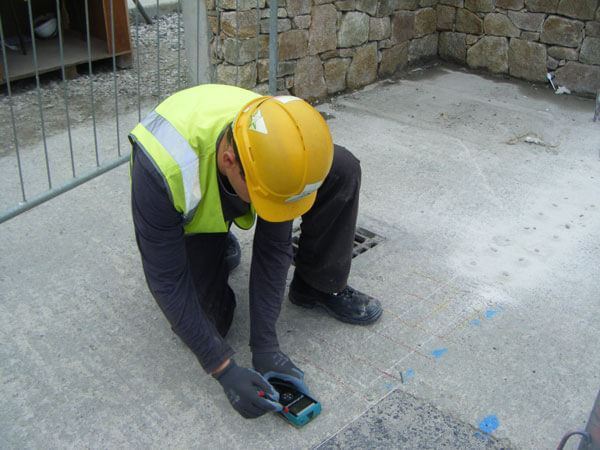

HM-196 Profoscope Rebar Locator/Cover Meter, Standard, can locate a single No.5 reinforcing bar to a depth of 5.5in (140mm). It is designed for one-handed operation and features rebar-proximity indicators with visual and acoustic locating aids for location and minimum cover alert. The detector can identify the midpoint between bars as well as their orientation. Rebar diameter can also be estimated within the specified testing range. These unique features and Proceq’s intuitive user interface make the task of locating reinforcing steel simple and efficient.

The icon-based menu system on the display shows all settings, detection, and navigation information. A simple crosshair icon shows the relative location of the strongest signal beneath the meter. All values are easily switched between metric and imperial units of measure. The display itself has a switchable backlight for low-light environments. The 30-second sleep mode and 120-second auto-shutdown features extend battery life. A start-up test kit consists of two short lengths of rebar in a cardboard box with a lid. The included kit allows for simple user orientation and training for all functions in a comfortable environment before use on a job site. A canvas carrying bag, carrying strap, batteries, and marking chalk is also included.

HM-197 Profoscope+ Rebar Locator/Cover Meter, Upgraded, has all the same features and capabilities as the HM-196. It additionally has the ability to manually or automatically record up to 500 objects, with a total storage of 49,500 measurements, and upload them to a PC with included ProfoLink software for later analysis. The Profoscope+ also includes a memory card and ProfoLink software.

Both Profoscope units are powered by two AA batteries and have a battery life of up to 50 hours with the display backlight off.

Check out our other Rebar Locators and Cover Meters.

Features:

  • Capable of locating reinforcing steel to a max depth of 7in (178mm)
  • Indicators offer visual and acoustic locating
  • Can be operated with one hand
  • Measures in metric and imperial units
  • Easy-to-read display menu with backlight
  • HM-197 records measurements manually or automatically and can upload to a PC

Included Items:

  • Profoscope Rebar Locator/Cover Meter, Standard, or
    Profoscope+ Rebar Locator/Cover Meter, Upgraded, with ProfoLink Software and Memory Card
  • Canvas Carrying Bag with Strap
  • Two AA Batteries
  • Marking Chalk

Related blogs:

Cover Measuring Range Up to 7in (178mm)
Cover Measuring Accuracy ±0.04–0.16in (1–4mm), depending on cover
Diameter Measuring Range Up to 2.5in (63mm)
Diameter Measuring Accuracy ±1 rebar size
Memory Capacity HM-197: 49,500 measurements
Power Supply (2) AA Batteries
Product Dimensions 8.0 x 3.6 x 1.6in (205 x 92 x 41mm), WxDxH
Estimated Shipping Weight 3.0lb (1.36kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Cover Measuring Range Up to 7in (178mm)
Cover Measuring Accuracy ±0.04–0.16in (1–4mm), depending on cover
Diameter Measuring Range Up to 2.5in (63mm)
Diameter Measuring Accuracy ±1 rebar size
Memory Capacity HM-197: 49,500 measurements
Power Supply (2) AA Batteries
Product Dimensions 8.0 x 3.6 x 1.6in (205 x 92 x 41mm), WxDxH
Estimated Shipping Weight 3.0lb (1.36kg)
Meets Standard(s):
