Load Frame, 0.00001–0.29999in/min, 10,000lbf

Product Files
Load Frame, 0.00001–0.29999in/min, 10,000lbf  (120V, 50/60Hz)

Load Frame, 0.00001–0.29999in/min, 10,000lbf (120V, 50/60Hz)

Model: HM-397B
$5370.0000
Price: $5,370.00
Load Frame, 0.00001–0.29999in/min, 10,000lbf  (230V, 50/60Hz)

Load Frame, 0.00001–0.29999in/min, 10,000lbf (230V, 50/60Hz)

Model: HM-397BF
$5370.0000
Price: $5,370.00

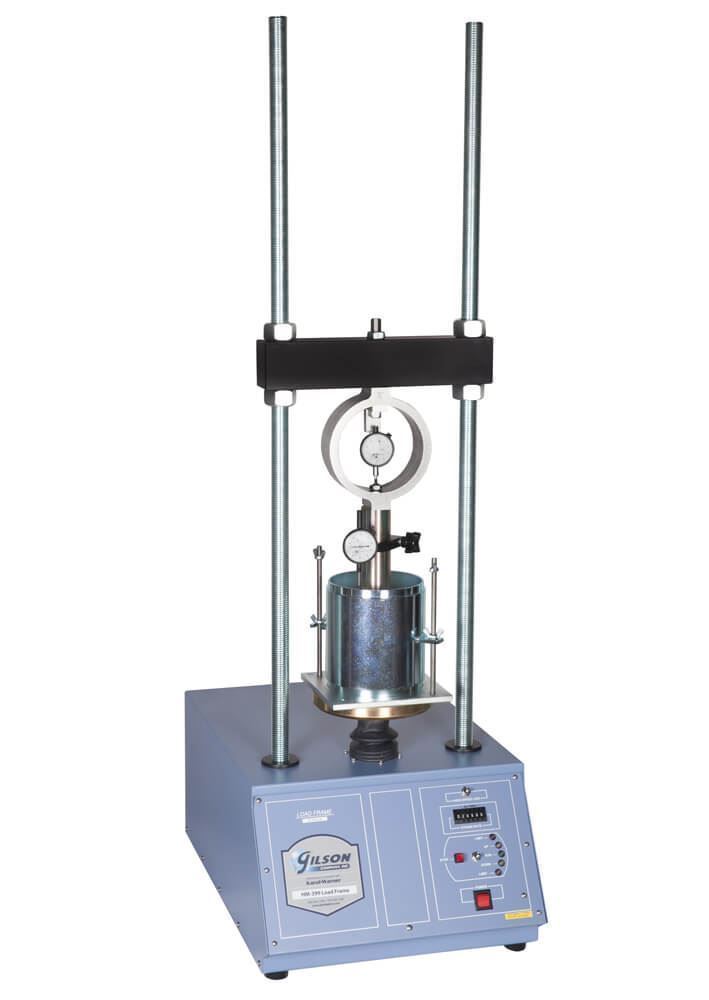

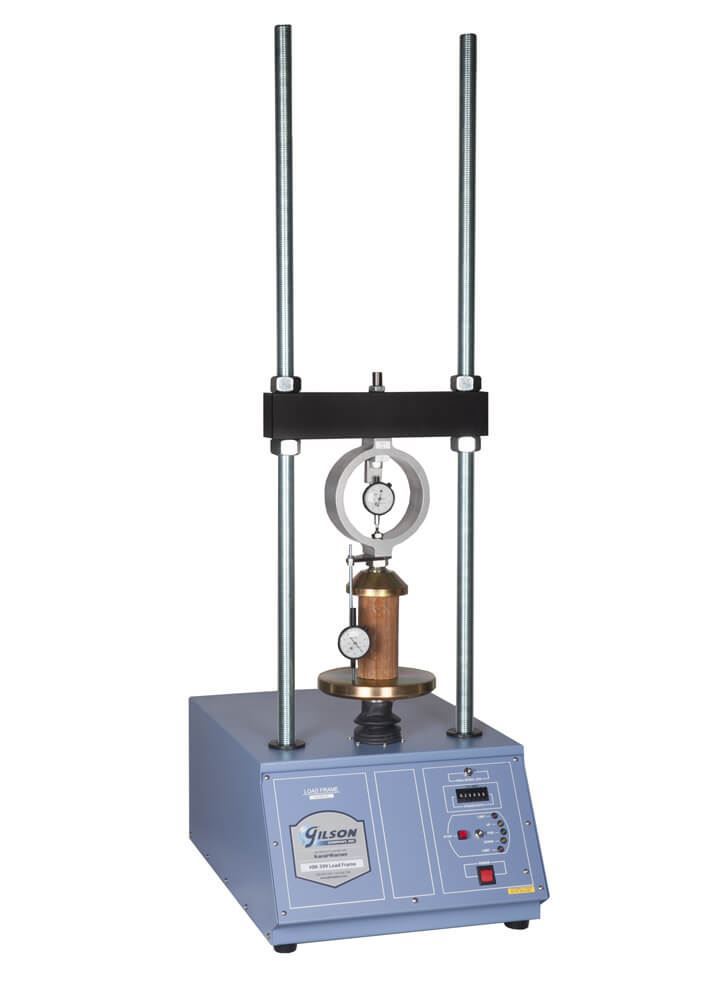

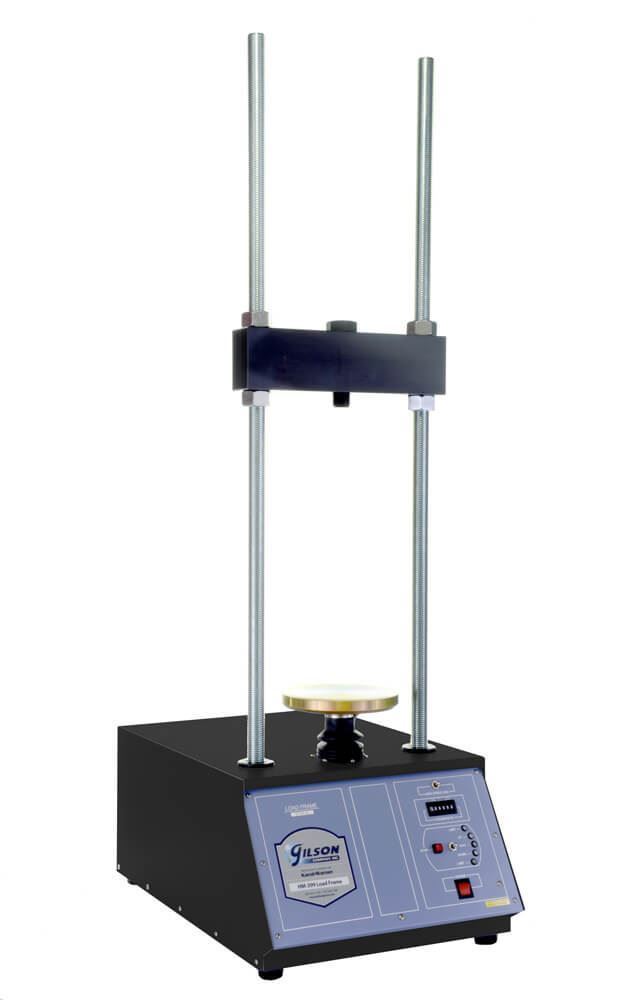

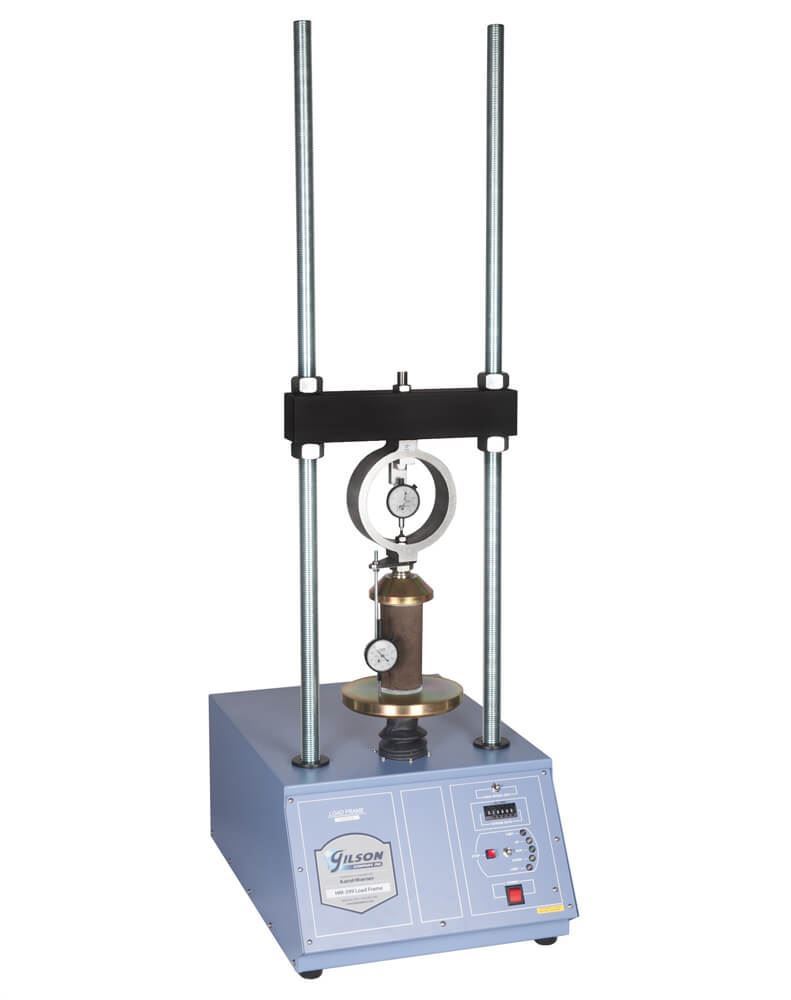

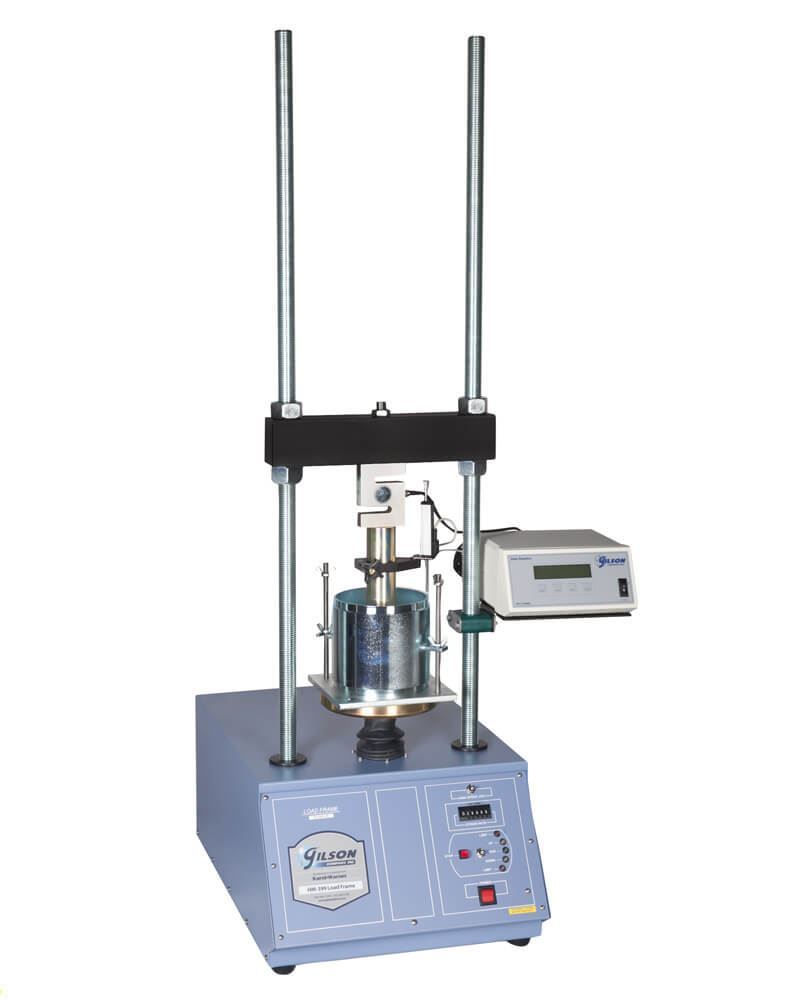

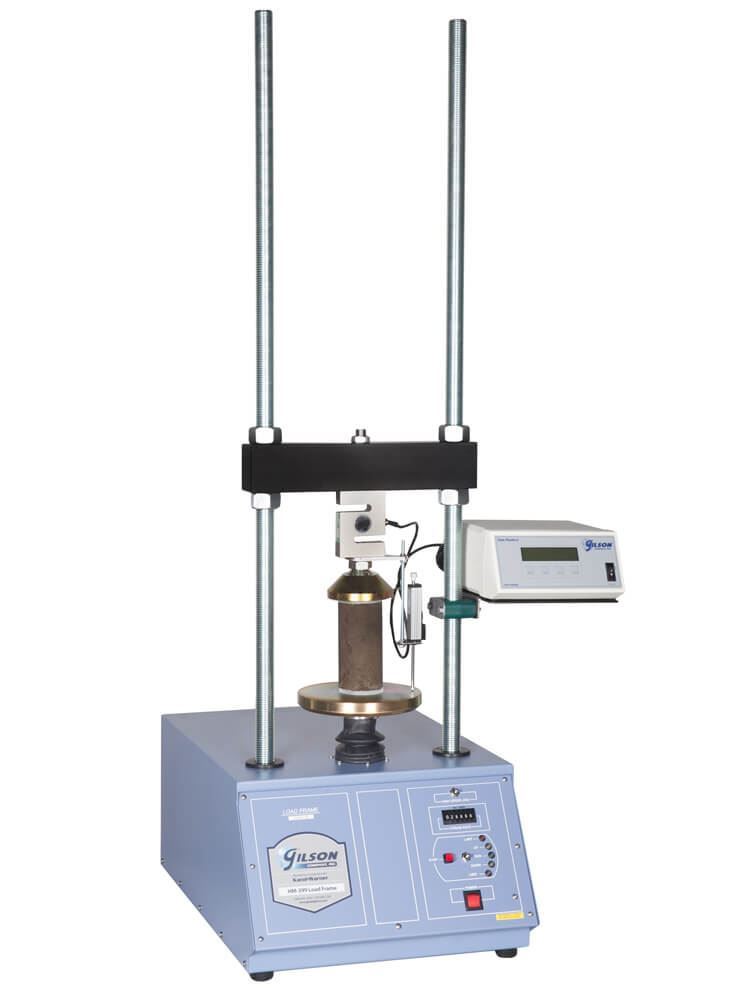

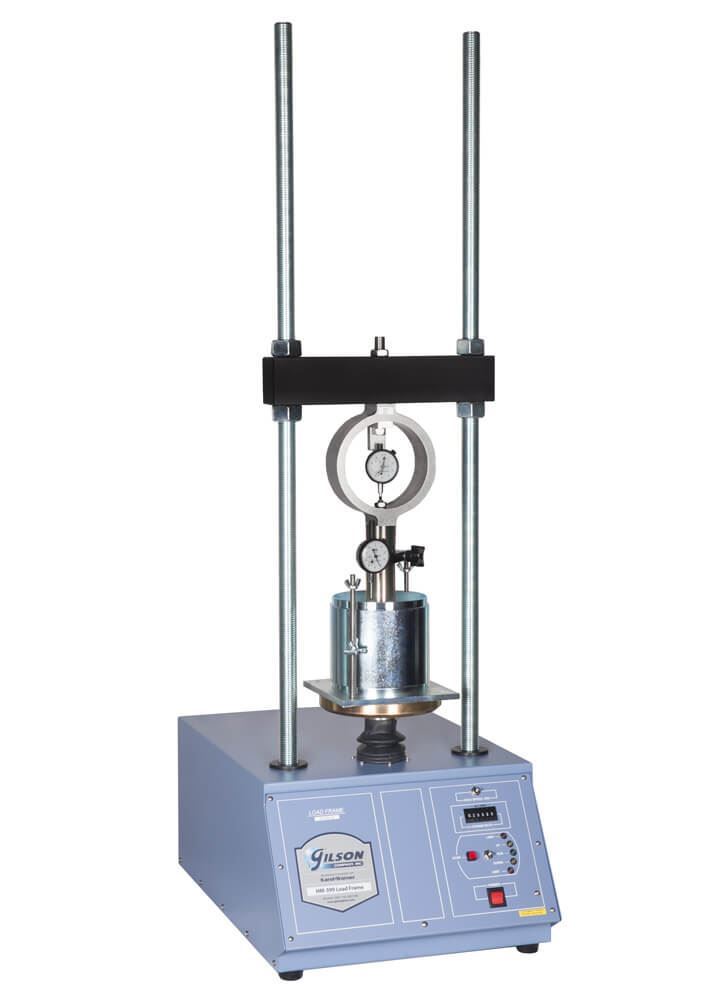

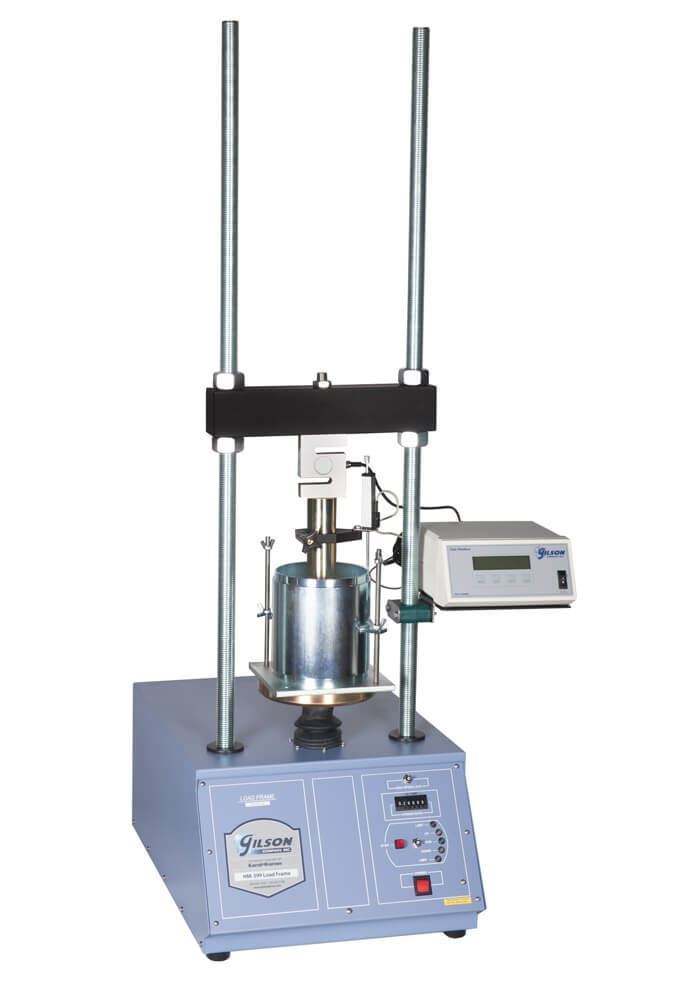

Load Frame, 0.00001 to 0.29999in/min is for use in CBR and LBR testing, as well as soil-cement, unconfined compressive strength, and triaxial testing when fitted with the required test-specific Component Set (available separately). It offers the greatest strain rate sensitivity of Gilson’s line of load frames, with a range of 0.00001 to 0.29999in/min (0.000254 to 7.62mm/min).

This unit features a jog function that increases the speed of the platen to the maximum speed of the load frame jack screw (0.3in/min), allowing for faster positioning of the 8in (203mm) diameter platen. A micro-stepping drive controller offers precise control of loading rates to ±1%. It has a total capacity of 10,000lbf (44.5kN) and an 11.9x37.3in (302x947mm) frame opening. Cased in a powder-coated steel finish. A reliable DC stepper motor is matched to the unique speed, and torque requirements of the load frame, and precisely regulates strain rates to ±1% of the set point. Horizontal cross-head heights can be easily changed using adjusting nuts. The coarse-threaded 1.25in (32mm) high-strength plated vertical rods are corrosion resistant. The product operates at 120V/50-60Hz or 230V/50-60Hz.

Features:

  • Highest range strain rate of Gilson’s 10,000lbf Load Frames
  • Performs well for different soil tests using test-specific component sets
  • Strain rates regulated to ±1% accuracy

Included Items:

  • Load Frame, 0.00001 to 0.29999in/min (120V/50-60Hz or 230V/50-60Hz)

Accessories:

Related blogs:

Load Capacity 10,000lbf (44.5kN)
Strain Rate 0.00001–0.29999in/min (0.000254–7.619mm/min)
Rate of Load ±1%
Motor DC stepper Motor
Electrical

HM-397B: 120V/50-60Hz, 480 Watts

HM-397BF: 230V/50-60Hz, 480 Watts

Frame Opening Dimensions 11.9 x 37.3in (302 x 947mm) WxH
Product Dimensions 18 x 29 x 54.5in (457 x 737 x 1,384mm), WxDxH
Net Weight 190lb (86.4kg)
Estimated Shipping Weight 250.0lb (113.40kg)
