Heavy-Duty Oilless Vacuum Pump

Heavy-Duty Oilless Vacuum Pump (115V / 60Hz)

Heavy-Duty Oilless Vacuum Pump (115V / 60Hz)

Model: MA-23
$1518.5000
Price: $1,518.50
Heavy-Duty Oilless Vacuum Pump (230V / 50Hz)

Heavy-Duty Oilless Vacuum Pump (230V / 50Hz)

Model: MA-23F
$1540.5000
Price: $1,540.50

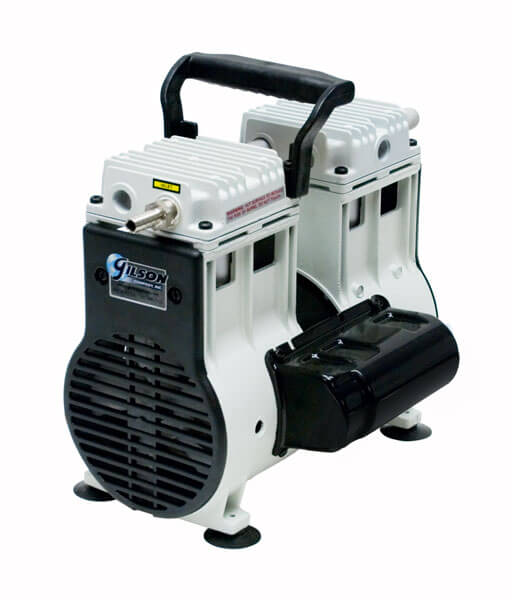

The MA-23 Oilless Vacuum Pump enables allows operators to perform multiple specific gravity tests at the same time. This heavy-duty unit combines large capacity with maintenance free operation. The 1/3hp motor pulls 29.6in Hg (759.46mm) with free air displacement up to 99L/min (3.5cfm) and ultimate pressure of 5.0Torr.

Features:

  • Ideal option if performing multiple specific gravity tests simultaneously
  • No maintenance needed with oilless pump
  • Large capacity unit

Included Items:

  • MA-23 Heavy-Duty Oilless Vacuum Pump
  • NEMA guarded switch
  • Grounded electric cord
Free Air Capacity 99L/min (3.5cfm)
Ultimate Vacuum 5 Torr
Intake Port 0.375in (9.5mm) O.D.
Electrical

MA-23: 115V / 60Hz / 4Amps

MA-23F: 230V / 50Hz / 20Amps

Motor 1/3hp (0.25kW)
Product Dimensions 11.1 x 9.2 x 11.0in (28 x 234 x 279mm),W x D x H
Estimated Shipping Weight 25.0lbs (11.34kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Free Air Capacity 99L/min (3.5cfm)
Ultimate Vacuum 5 Torr
Intake Port 0.375in (9.5mm) O.D.
Electrical

MA-23: 115V / 60Hz / 4Amps

MA-23F: 230V / 50Hz / 20Amps

Motor 1/3hp (0.25kW)
Product Dimensions 11.1 x 9.2 x 11.0in (28 x 234 x 279mm),W x D x H
Estimated Shipping Weight 25.0lbs (11.34kg)
