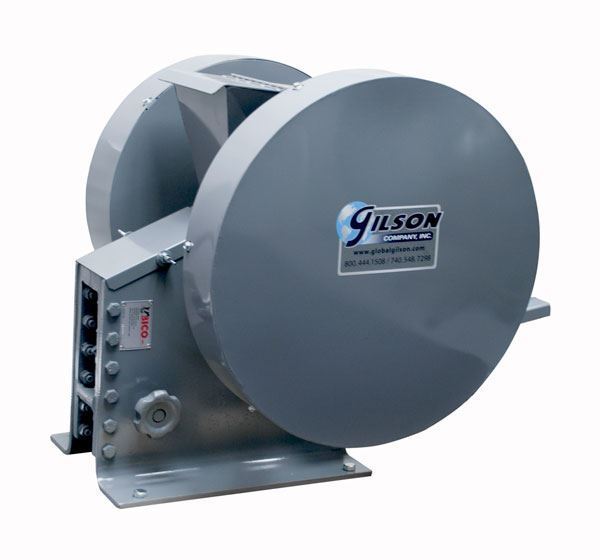

Heavy-Duty Chipmunk Jaw Crushers

Heavy-Duty Chipmunk Jaw Crusher, (110V, 60Hz, 1 Phase)

Heavy-Duty Chipmunk Jaw Crusher, (110V, 60Hz, 1 Phase)

Model: LC-35
$12170.0000
Price: $12,170.00
Heavy-Duty Chipmunk Jaw Crusher, (220V, 60Hz, 1 Phase)

Heavy-Duty Chipmunk Jaw Crusher, (220V, 60Hz, 1 Phase)

Model: LC-35A
$12170.0000
Price: $12,170.00
Heavy-Duty Chipmunk Jaw Crusher, (220V, 3 Phase)

Heavy-Duty Chipmunk Jaw Crusher, (220V, 3 Phase)

Model: LC-36
*
$11220.0000
Price: $11,220.00
Heavy-Duty Chipmunk Jaw Crusher, (460V, 3 Phase)

Heavy-Duty Chipmunk Jaw Crusher, (460V, 3 Phase)

Model: LC-36A
*
$11220.0000
Price: $11,220.00

Heavy-Duty Chipmunk Jaw Crushers allow for easy size reduction of hard rock, ores, and minerals with minimal power consumption. Reversible jaw plates extend service life and the stationary jaw lifts easily from the frame for cleaning the inner parts. Sealed heavy bronze bearings are protected from dust and dirt, and lubricated by grease cups. Jaw size is 4x9in (102x229mm) with a 4x2.375in (102x60mm) opening. Reduction adjusts for 1/16–5/8in (1.6–15.9mm) particle size. The maximum feed size is 2.4x4in (56x76mm), with an 800lb (363kg) capacity per hour. A Dust Enclosure Bench and Replacement Filter are available options for both.

All parts can be reached easily for cleaning and maintenance. The crushers are made of wear-resistant alloy steel, have sealed bronze bearings and alloy steel shafts. They come with Sample Pan, Feed Hopper, Belt Guards, and Flywheel. An electric motor starting switch also comes with each unit, but the switch must be installed on-site. Single-phase motors can be configured for 110V or 220V operation, while three-phase motors enable the units to operate on 220V or 440V power sources.

Features:

  • LC-35 is a 3hp/1 Phase motor while LC-36 is a 3HP/3 Phase motor
  • Grease cups eliminate the need for special greasing tools
  • Bearings can be easily replaced
  • 2.24x4in (56x76mm) maximum feed size
  • 800lb capacity per hour

Included Items:

  • Heavy-Duty Chipmunk Jaw Crusher (1 Phase/110 or 220V or 3 Phase/220 or 440V)
  • Electric Motor Starter Switch (must be installed on-site)
  • Sample Pan
  • Feed Hopper
  • Belt Guards
  • Flywheel

Accessories:

  • LCA-91 Dust Enclosure Bench for pulverizers and crushers helps contain nuisance dust during operations
  • LCA-92 Replacement Filter for Dust Enclosure Bench is easily removed and replaced as needed

Related blogs:

Maximum Particle Size 2.4 x 4in (56 x 76mm)
Max. Feed Capacity 800lb (363kg)/hr
Final Size 0.062 – 0.625in (1.6 – 15.9mm)
Composition Steel Alloy, 9 x 4in (229 x 102mm) Jaws
Application rocks, minerals
Electrical

LC-35: 110V, 60Hz, 25 amps, 1 phase

LC-35A: 220V, 60Hz, 16.8 amps, 1 phase

LC-36: 220V, 50/60Hz, 10 amps, 3 phase

LC-36A: 460V, 50/60Hz, 5 amps, 3 phase

Product Dimensions 28x19x32in (710x480x810mm), WxDxH
Estimated Shipping Weight 610.0lb (276.70kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Maximum Particle Size 2.4 x 4in (56 x 76mm)
Max. Feed Capacity 800lb (363kg)/hr
Final Size 0.062 – 0.625in (1.6 – 15.9mm)
Composition Steel Alloy, 9 x 4in (229 x 102mm) Jaws
Application rocks, minerals
Electrical

LC-35: 110V, 60Hz, 25 amps, 1 phase

LC-35A: 220V, 60Hz, 16.8 amps, 1 phase

LC-36: 220V, 50/60Hz, 10 amps, 3 phase

LC-36A: 460V, 50/60Hz, 5 amps, 3 phase

Product Dimensions 28x19x32in (710x480x810mm), WxDxH
Estimated Shipping Weight 610.0lb (276.70kg)
