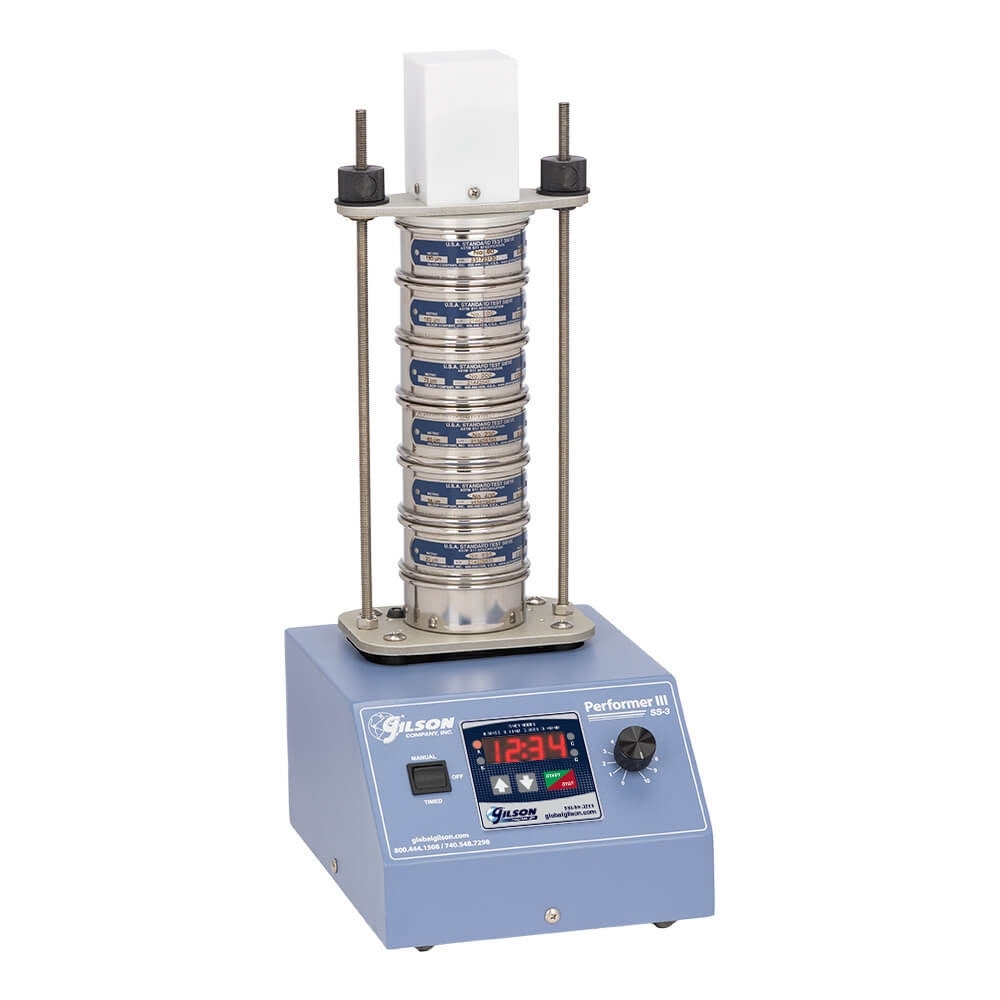

Gilson 3in Vibratory Sieve Shaker

Model: SS-3
$1343.0000
Price: $1,343.00
Product Files

Gilson 3in Sieve Shaker is compact, quiet, and ideal for efficient dry powder separations of small samples with a size range from No. 4No. 635 (4.75mm20µm) with woven-wire sieves. Extended sizes are possible with some materials. This electromagnetic sieve shaker is designed for dry chemicals, minerals, pharmaceuticals, powdered metals, cosmetics, abrasives, ores, foods, and other fine powders. Its small size and portability allow easy set-up in areas near process operations or for remote QC/QA applications.

Gilson's 3in shaker features a high frequency of 3,600vpm electromagnetic vibratory action with 0100% amplitude control allows optimal settings for fine particle separations. In-line solenoid-actuated tapping action works at 60 taps/min during sieving to redistribute the sample on the sieves and break static blinding. Which helps to clear undersize particles from mesh openings rapidly.

Shaker has a rugged powder-coated steel case, variable control for vibration intensity, and a manual/timed mode switch. It has a digital countdown timer with a timer capacity of up to 99min, 59 secs. The easy-to-read timer has a 0.5in (12.7mm) LED display, a pause function that allows the cycle to be suspended and resumed with no loss of test time, and a five-second audible alarm sounds after testing is complete.

SS-3 shaker also features the exclusive  Gilson EZ-Clamp system. The unique EZ-Clamp sieve clamping mechanism makes the insertion and removal of sieve stacks simple and convenient while keeping the top cover secure at a fixed height. The mechanism remains at the fixed height until the knobs are tightened to secure the sieves in place. The knobs on the clamping mechanism allow the stack to be released with a quick twist.

The shaker accepts 3in (76mm) diameter ASTM test sieves or Gilson's Acrylic and Non-Metallic frame sieves. Included with the electromagnetic sieve shaker are the SSA-17 3in Acrylic Sieve Adapter and metal sieve cover. Order the SSA-15 or GAA-88 Acrylic Spacers for observing sample action while leveling the platform or for setting vibration.

The Gilson 3in Sieve Shaker operates on 115V/50-60Hz, for operation on 230V order the TR-502 Step-Up/Step-Down Transformer.

Note: When using the Non-Metallic Sieves the tapping action should not be used, the shaker top cover is not compatible with these types of sieves.

3in Metal or Non-Metallic Frame
Sieve Capacity (Full-Height)
3in Metal or Acrylic Frame
Sieve Capacity (Half-Height)
714

Features:

  • A quiet and efficient electromagnetic vibratory action
  • Accurately separates from No. 4No. 635 (4.75mm20µm) sample sizes
  • 0–100% amplitude control
  • Selectable tapping action
  • Gilson EZ-Clamp system quickly secures sieve stack
  • Accepts metal or acrylic frame sieves

Included Items:

  • Gilson Performer III 3in Sieve Shaker, 115V/50-60Hz
  • 3in Acrylic Sieve Adapter
  • Sieve cover

Accessories:

Sieve Frame Diameter 3in (76mm)
Particle Size Range No.4—No.635 (4.75mm—75µm)
Motion/Agitation Vibratory/Tapping
Sieve Capacity with Pan

Metal Full Height Sieves: (7) 3in (76mm)

Metal Half-Height Sieves: (14) 3in (76mm)

Acrylic Sieves: (14) 3in (76mm)

Non-Metallic Sieves: (7) 3in (76mm)

Timing Capacity Up to 99 Minutes
Mounting Capability No
Electrical 115V / 50-60Hz / 2 Amps
Product Dimensions 8 x 11 x 22in (203 x 279 x 559mm), WxDxH
Estimated Shipping Weight 33.0lb (14.97kg)
