8" Sieve, All Stainless, 6" Deep, #170 with Backing Cloth

Model: WT-86S #170 BU
$205.0000
Price: $205.00

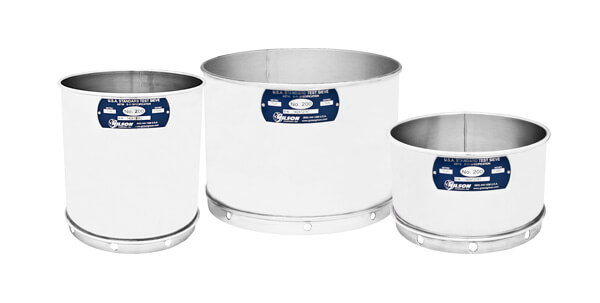

8in (203mm) diameter ASTM E11 Deep Frame Wet-Wash Test Sieve is constructed of all stainless steel with No. 170 (90µm) openings. Overall frame depth is 6in (152mm) and is supplied with back-up cloth.

Features:

  • Optimal for fines content determinations or sample preparation for particle size testing
  • Compliant with ASTM E11
  • Deep frames contain wash water
  • Nesting capability with standard sieves

Included Items:

  • 8in (203mm) Deep Frame Wet-Wash Sieve, All Stainless Steel, 6in (152mm) depth
  • Certificate of Conformance to ASTM E11 requirements
  • Back-up cloth

Accessories:

  • Wet Sieving Accessories with pans, tubing, brushes, gaskets and other products used to prepare specimens for wet wash sieving
Sieve Frame Diameter 8in (203mm)
Frame Height Above Cloth 6in (152mm)
Material All Stainless Steel
ASTM E11 Opening Size No.170 (90µm)
Backing Cloth Included Yes
Estimated Shipping Weight 5.0lb (2.27kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Sieve Frame Diameter 8in (203mm)
Frame Height Above Cloth 6in (152mm)
Material All Stainless Steel
ASTM E11 Opening Size No.170 (90µm)
Backing Cloth Included Yes
Estimated Shipping Weight 5.0lb (2.27kg)
Meets Standard(s):
