4in Spacers

4in Spacer for 250 Series Compression Machines

4in Spacer for 250 Series Compression Machines

Model: MCA-14
$197.5000
Price: $197.50
4in Spacer for 300 Series Compression Machines

4in Spacer for 300 Series Compression Machines

Model: MCA-19
$193.5000
Price: $193.50
4in Spacer for 400 / 500 Series Compression Machines

4in Spacer for 400 / 500 Series Compression Machines

Model: MCA-15
$313.5000
Price: $313.50

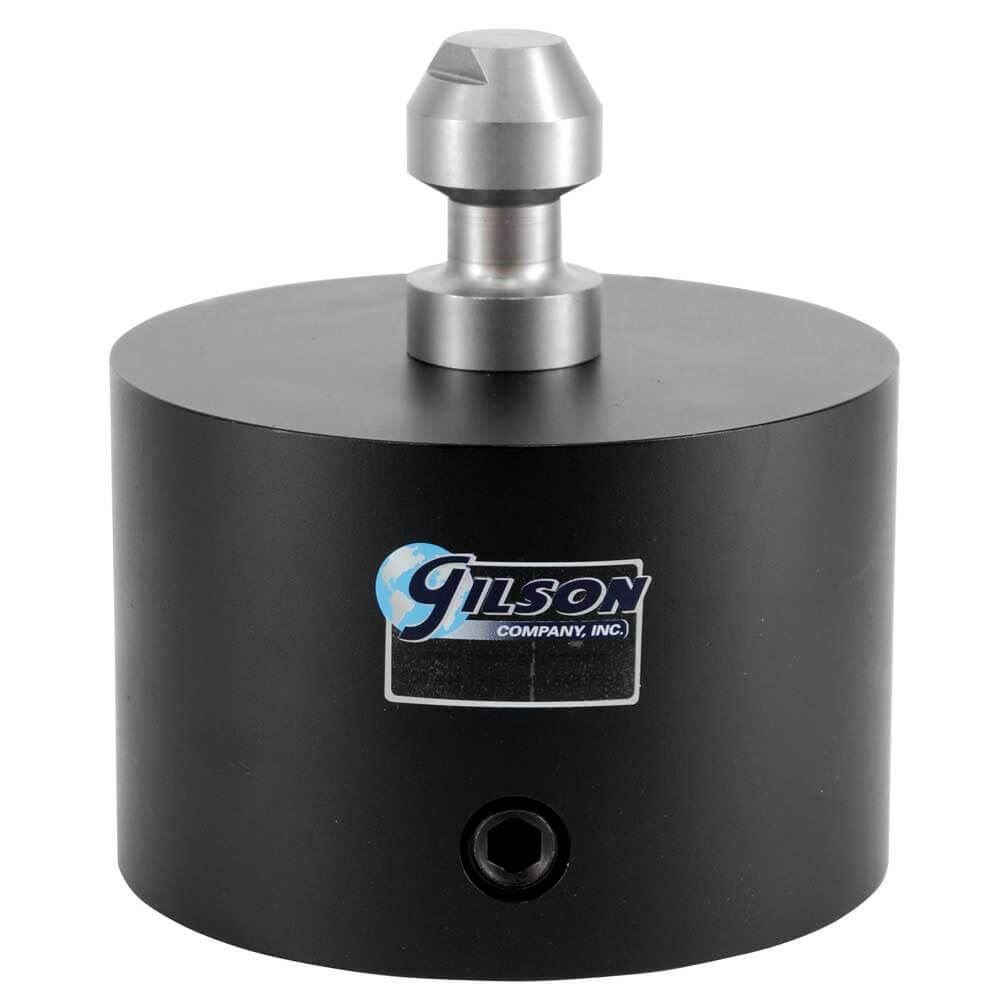

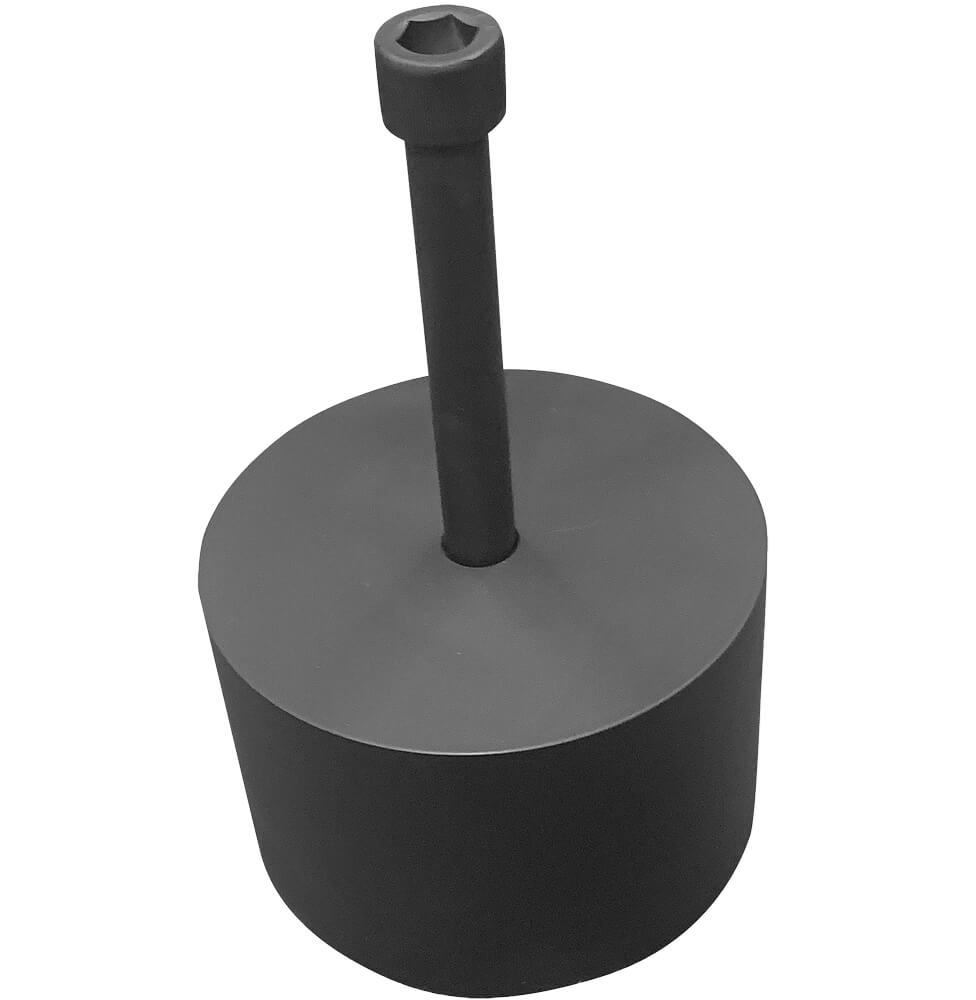

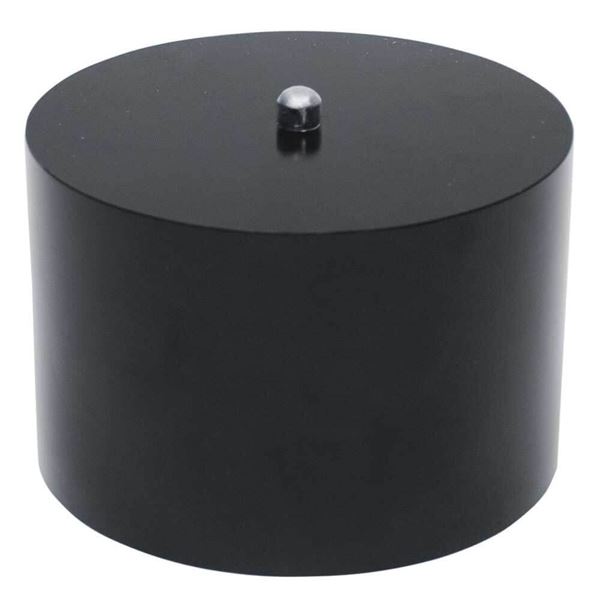

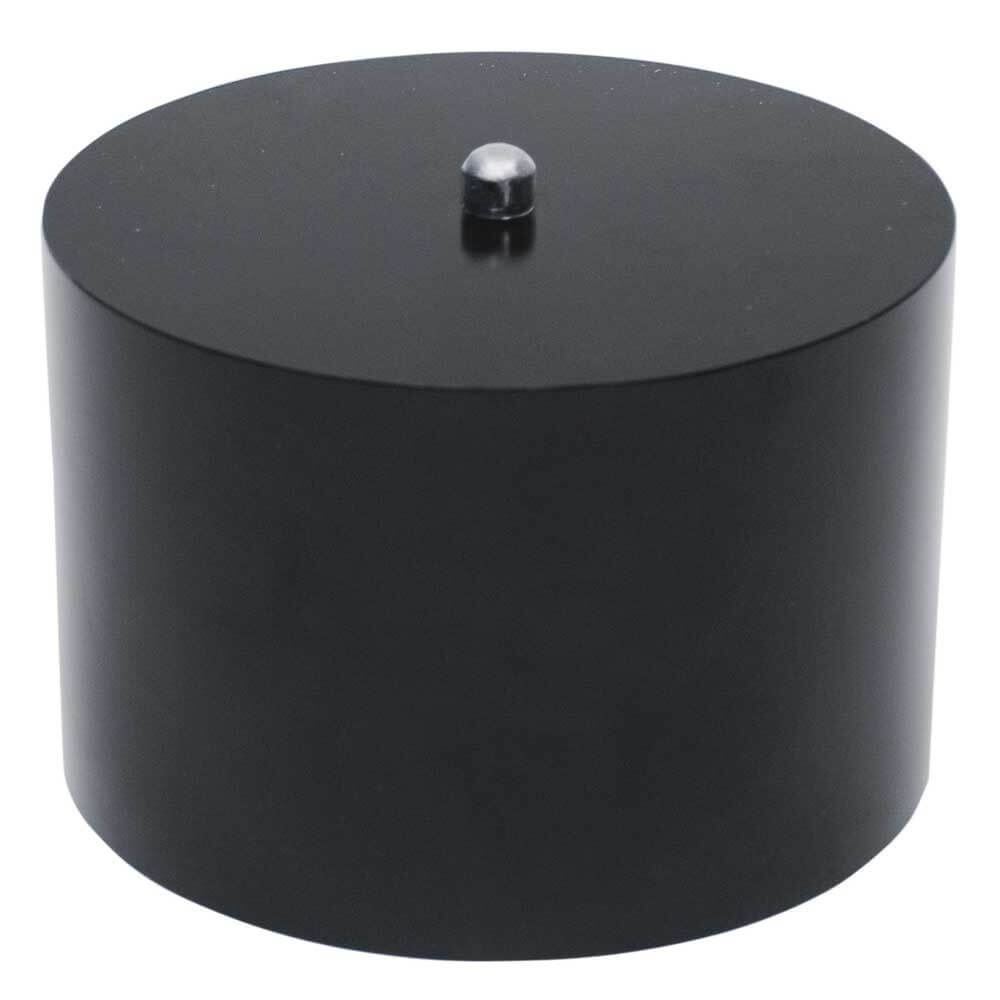

4in Spacers for Gilson's Concrete Compression Machines adjust the vertical working opening for testing of 4x8in (102x203mm) cylinders in machines set up for 6x12in (152x305mm) specimens. The spacer is constructed of steel and painted to resist corrosion, and machined planed on top and bottom for parallel alignment between the test platens and spacer. The spacer attaches to the machine crosshead with the included screw-in bolt.

Features:

  • Sturdy steel construction
  • Resists corrosion

Included Items:

  • 4in Spacer
  • Mounting bolt

Related blogs:

Material Steel
Product Dimensions 6 x 4in (152.4 x 101.6 mm), Dia. x H
Estimated Shipping Weight

MCA-14: 34.0lb (15.42kg)

MCA-19: 32.0lb (14.52kg)

MCA-15: 33.0lb (14.97kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Material Steel
Product Dimensions 6 x 4in (152.4 x 101.6 mm), Dia. x H
Estimated Shipping Weight

MCA-14: 34.0lb (15.42kg)

MCA-19: 32.0lb (14.52kg)

MCA-15: 33.0lb (14.97kg)

Meets Standard(s):
