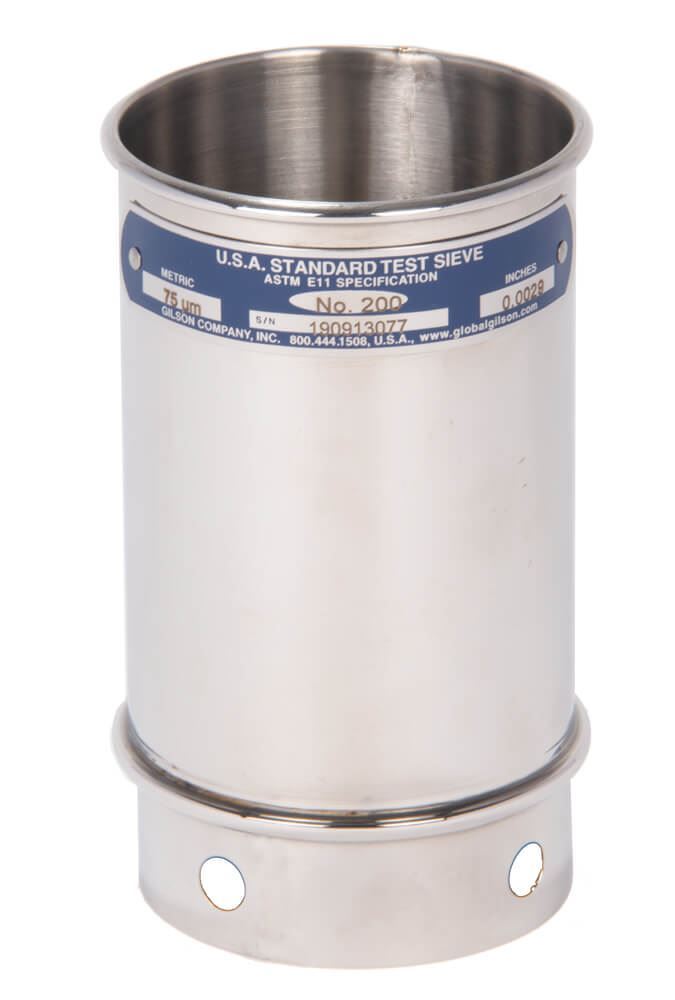

3" Sieve, All Stainless, 4" Deep, #200 with Backing Cloth

Model: WT-34S #200 BU
$101.5000
Price: $101.50

3in (76mm) diameter ASTM E11 Deep Frame Wet-Wash Test Sieve is constructed of all stainless steel with No.200 (75µm) openings. Overall frame depth is 4in (102mm) and is supplied with No. 30 Backing Cloth.

Features:

  • Optimal for fines content determinations or sample preparation for particle size testing
  • Compliant with ASTM E11
  • Deep frames contain wash water
  • Nesting capability with standard sieves

Included Items:

  • 3in (76mm) Deep Frame Wet-Wash Sieve, All Stainless Steel, 4in (102mm) depth
  • Certificate of Conformance to ASTM E11 requirements
  • No. 30 Backing Cloth

Accessories:

  • Sieve Pans nest underneath sieves to collect fines
  • Sieve Covers prevent sample loss during agitation
Frame Diameter 3in (76mm)
Frame Height Above Cloth 4in (102mm)
Material All Stainless Steel
ASTM E11 Opening Size No.200 (75µm)
Backing Cloth Included Yes
Estimated Shipping Weight 5.0lbs (2.27kg)
  • Question: What do you mean by backing cloth? What is this used for?
    • Answer: Backing cloth is designed to prevent sagging and tearing of fine mesh for longer service life of the Wet Wash Sieve. #35 stainless steel mesh is located below the primary sieve cloth to increase the strength of the sieve and reduce the distortion of the openings during use.

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Frame Diameter 3in (76mm)
Frame Height Above Cloth 4in (102mm)
Material All Stainless Steel
ASTM E11 Opening Size No.200 (75µm)
Backing Cloth Included Yes
Estimated Shipping Weight 5.0lbs (2.27kg)
Meets Standard(s):
