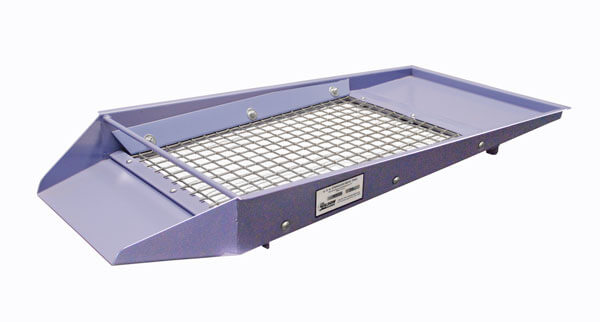

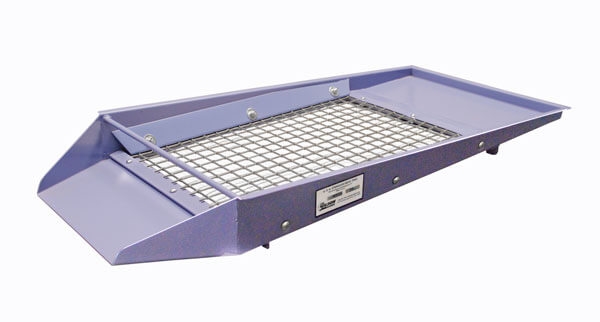

No.10 (2mm) Continuous-Flow Screen Tray

Model: CFA-101 #10
$708.0000
Price: $708.00

CFA-101  No.10 (2mm) Screen Tray for Gilson Continuous-Flow Screens features a feed tray and discharge chute for continuous inclined feed or scalping operations of coarse materials. Tray construction is welded and bolted heavy-gauge painted steel and is fitted with ASTM E11 Compliance Grade wire cloth. Replacement Wire Cloth Only sections are interchangeable with Gilson Testing Screen Trays.

Features:

  • Heavy gauge steel trays for use with Gilson Continuous-Flow Screens
  • Wire cloth meets ASTM E11 compliance-grade specifications

Included Items:

  • No.10 (2mm) Continuous-Flow Screen Tray
ASTM E11 Opening Size No.10 (2.0mm)
Cloth Material Stainless Steel
Dimensions Cloth Only: 16 x 24in (406.4 x 609.6mm), WxD
Clear Screen Size of Trays 21.7 x 14.4in (551.2 x 365.8mm), WxD
Product Dimensions 40.4 x 17.75 x 3.6in (1,026.2 x 450.9 x 91.44mm), WxDxH
Estimated Shipping Weight 28.0lb (12.70kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

ASTM E11 Opening Size No.10 (2.0mm)
Cloth Material Stainless Steel
Dimensions Cloth Only: 16 x 24in (406.4 x 609.6mm), WxD
Clear Screen Size of Trays 21.7 x 14.4in (551.2 x 365.8mm), WxD
Product Dimensions 40.4 x 17.75 x 3.6in (1,026.2 x 450.9 x 91.44mm), WxDxH
Estimated Shipping Weight 28.0lb (12.70kg)
