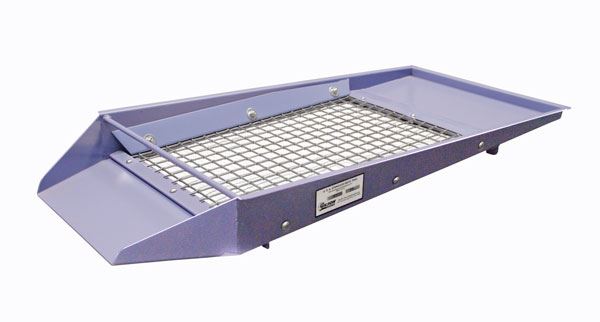

1in Continuous-Flow Screen Tray

Model: CFA-100 1"

$554.0000

Price: $554.00

Qty:

1in Continuous-Flow Screen Tray

Description
Specifications
Questions?

CFA-100 1.00in (25.0mm) Screen Tray for Gilson Continuous-Flow Screens features a feed tray and discharge chute for continuous inclined feed or scalping operations of coarse materials. Tray construction is welded and bolted heavy-gauge painted steel and is fitted with ASTM E11 Compliance Grade wire cloth. Replacement Wire Cloth Only sections are interchangeable with Gilson Testing Screen Trays.

Features:

Heavy gauge steel trays for use with Gilson Continuous-Flow Screens
Wire cloth meets ASTM E11 compliance-grade specifications

Included Items:

1in Continuous-Flow Screen Tray

ASTM E11 Opening Size	1in (25.0mm)
Cloth Material	Stainless Steel
Dimensions	Cloth Only: 16 x 24in (406.4 x 609.6mm), WxD
Clear Screen Size of Trays	21.7 x 14.4in (551.2 x 365.8mm), WxD
Product Dimensions	40.4 x 17.75 x 3.6in (1,026.2 x 450.9 x 91.44mm), WxDxH
Estimated Shipping Weight	30.0lb (13.61kg)
