2-Stage High Vacuum Pump

Product Files
2-Stage High Vacuum Pump (115V / 60Hz)

2-Stage High Vacuum Pump (115V / 60Hz)

Model: MA-27A
$884.5000
Price: $884.50
2-Stage High Vacuum Pump (230V / 50Hz)

2-Stage High Vacuum Pump (230V / 50Hz)

Model: MA-27AF
$905.5000
Price: $905.50

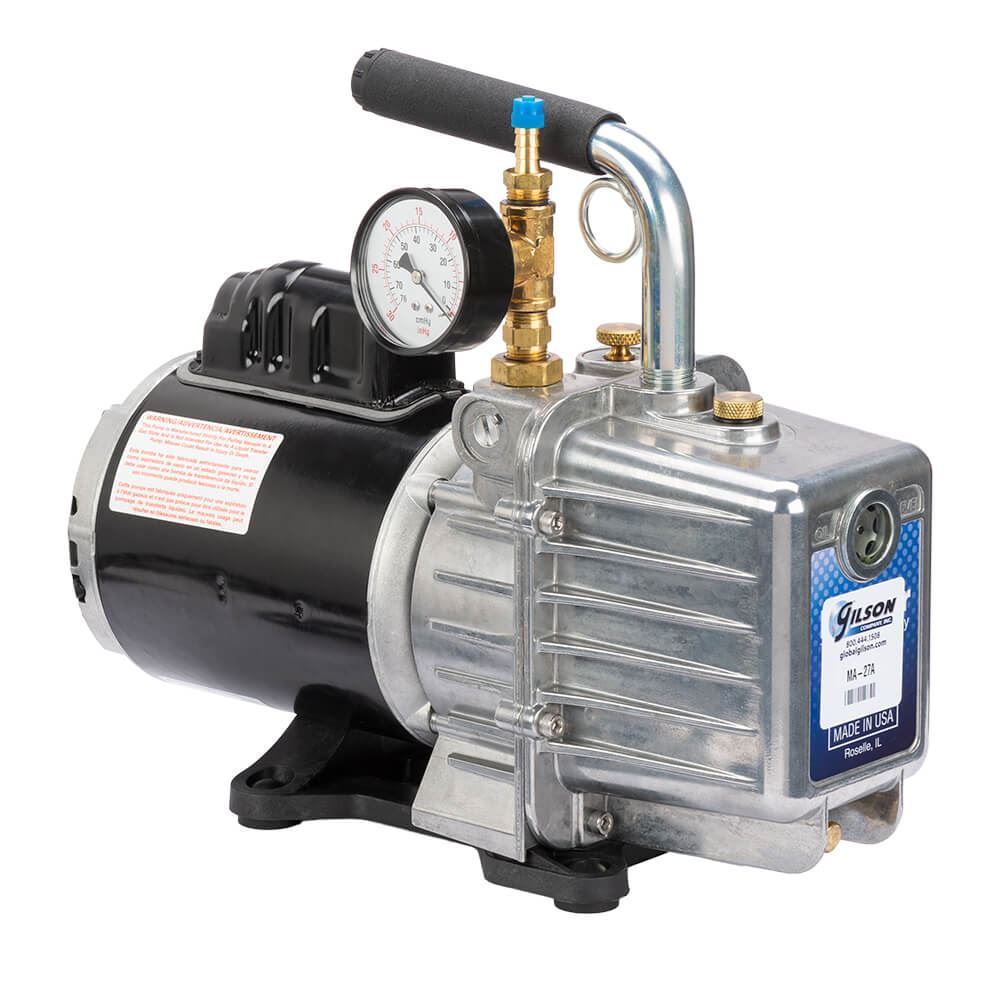

High Vacuum Pump is a two-stage, direct-drive rotary vane pump that offers superior specific gravity testing performance for an economical choice. This lightweight 1/2hp pump features 0.001 Torr ultimate vacuum pressure and 3.0cfm free air capacity with a compact design to reduce space requirements.  A 2.5in (64mm) diameter Bourdon style 0—30in (0—762mm) vacuum gauge is mounted on the intake side. A gas ballast valve permits the purging of water vapor. The handy plastic grip handle allows easy portability.

Features:

  • The powerful two-stage pump is economical
  • Space-saving design is compact and easy to store
  • Gas ballast valve permits the purging of water vapor
  • Convenient plastic carrying handle for ultimate portability

Included Items:

  • High Vacuum Pump
Free Air Displacement 85L/min (3.0cfm)
Ultimate Vacuum 0.001 Torr
Intake Port 0.375in (9.5mm)
Motor 1/2hp (0.37kW)
Electrical

MA-27A: 115V / 60Hz / 7Amps

MA-27AF: 230V / 50Hz / 3.5Amps

Oil Capacity 27oz. (785cc)
Product Dimensions 14 x 5.25 x 11in (355 x 133 x 279mm), W x D x H
Estimated Shipping Weight 30.0lb (13.61kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Free Air Displacement 85L/min (3.0cfm)
Ultimate Vacuum 0.001 Torr
Intake Port 0.375in (9.5mm)
Motor 1/2hp (0.37kW)
Electrical

MA-27A: 115V / 60Hz / 7Amps

MA-27AF: 230V / 50Hz / 3.5Amps

Oil Capacity 27oz. (785cc)
Product Dimensions 14 x 5.25 x 11in (355 x 133 x 279mm), W x D x H
Estimated Shipping Weight 30.0lb (13.61kg)
