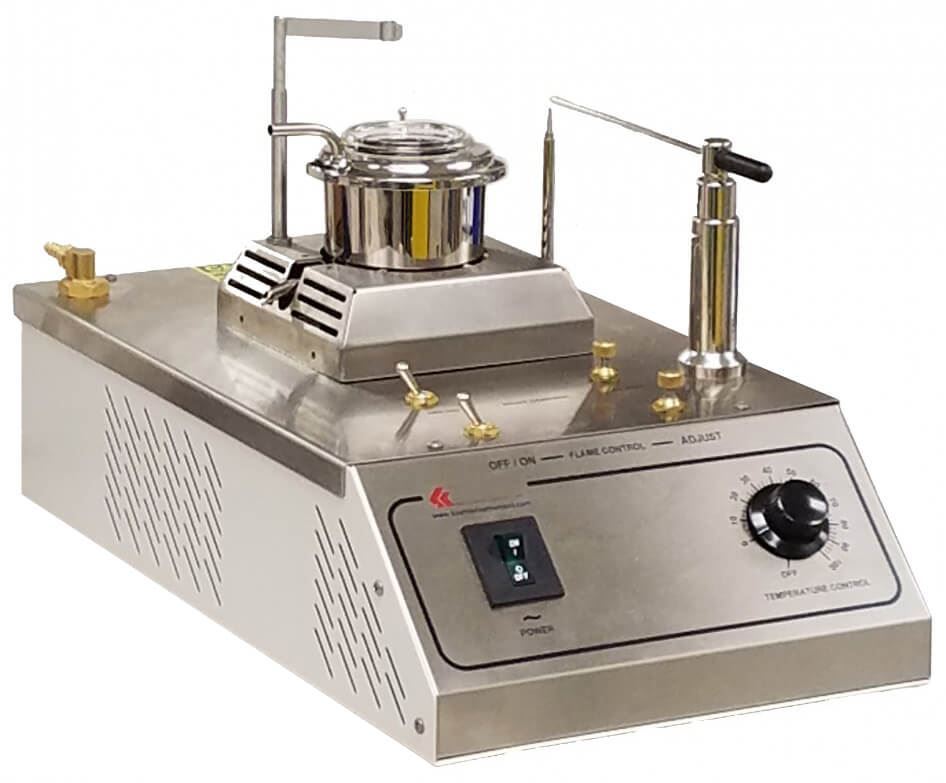

Tag Open Cup Flash Tester

Tag Open Cup Flash Tester (120V / 60Hz)

Tag Open Cup Flash Tester (120V / 60Hz)

Model: PT-8
$3931.0000
Price: $3,931.00
Tag Open Cup Flash Tester (230V / 50-60Hz)

Tag Open Cup Flash Tester (230V / 50-60Hz)

Model: PT-8F
$4195.0000
Price: $4,195.00

Tag Open Cup Flash Tester determines flash and fire points of liquids at temperatures up to 325°F (163°C), and the flashpoint of cutback asphalts with temperatures at 200°F (93°C) or lower. This tester is heated electronically and has stepless variable heat control for accurate control of the rate of temperature rise in accordance with ASTM and AASHTO standards.

It is equipped with a heater and cast aluminum base. It includes a plated brass liquid bath with constant level overflow, borosilicate glass sample cup, pivoting ignition taper with pilot light, reference bead, and a pivoting thermometer holder. Product dimensions are 10x17.5x11.5in (254x445x292mm).

Features:

  • Electrically heated
  • Stepless variable heat control
  • Meets ASTM and AASHTO standards
  • Rugged base constructed of cast aluminum
  • Liquid bath has a constant level overflow

Included Items:

  • Tag Open Cup Flash Tester (120V/60Hz or 230V/50-60Hz)

Accessories:

Flash Point Liquids: up to 325°F (163°C); Cutback Asphalts: less than 200°F (93°C)
Electrical

PT-8: 120V / 60Hz / 2Amps

PT-8F: 230V / 50-60Hz / 1Amps

Product Dimensions 10 x 17.5 x 11.5in (254 x 445 x 292mm)
Estimated Shipping Weight 24.0lb (10.89kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Flash Point Liquids: up to 325°F (163°C); Cutback Asphalts: less than 200°F (93°C)
Electrical

PT-8: 120V / 60Hz / 2Amps

PT-8F: 230V / 50-60Hz / 1Amps

Product Dimensions 10 x 17.5 x 11.5in (254 x 445 x 292mm)
Estimated Shipping Weight 24.0lb (10.89kg)
Meets Standard(s):
