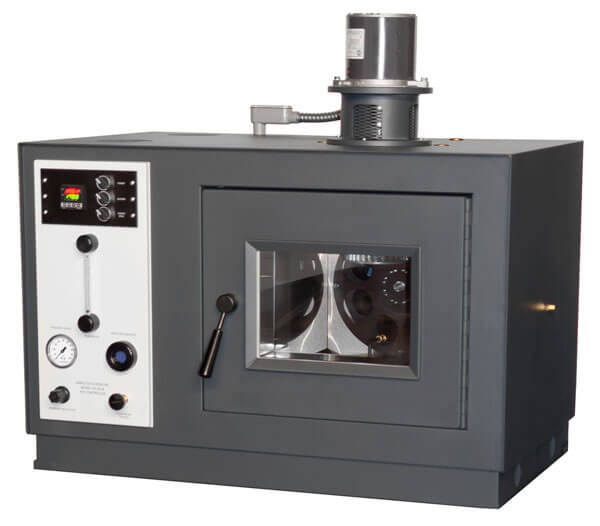

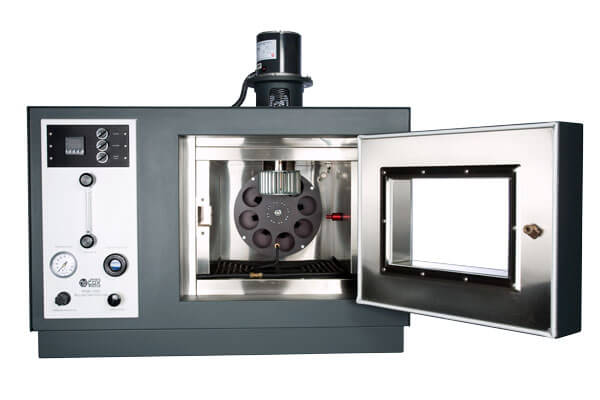

Rolling Thin Film Oven (RTFO)

MO-30F Rolling Thin Film Oven provides chamber temperatures with minimal overshoot for measuring the effect of heat and air on a moving film of asphalt binder. This simulates short-term aging during production, handling and paving operations as a controlled flow of heated air is directed into rotating glass bottles.

It features a PID controller, Resistance Temperature Detector (RTD) and dual four-digit display for simultaneous viewing of actual and set point temperatures. A solid-state digital temperature controller with built-in over-temperature protection and 200 Watt heating controls temperature to ±1°F at 325°F (±0.5°C at 163°C). Ovens have enameled steel exterior and double-wall construction. Older MO-30 units can be upgraded with a Digital Flowmeter. Optional MOA-12 or Data Logging MOA-14 electronic platinum resistance thermometers (PRT) can be specified when ordering a new oven, or ordered separately. These precision thermometers are accurate to ±0.05°C (±0.09°F) and are acceptable alternatives to mercury thermometers and avoid regulatory restrictions. Compare our Rolling Thin Film Oven models.

Features:

• Chamber temperature with minimal overshoot
• Dual four-digit display provides simultaneous view of actual & set point temperatures
• Solid-state digital temperature controller controls temperature to ±1°F at 325°F (±0.5°C at 163°C)

Included Items:

• Rolling Thin Film Oven
• Eight RTFO Bottles
• Stainless Steel Tongs with gripper pads
• Mechanical Flowmeter
• Moisture Indicator
• Air Pressure Gauge with regulator

Accessories:

• MA-223C ASTM 13C Thermometer has measurement range of -155° to 170°C
• MOA-6 Sample Bottle for RTFO is made of glass, and numbered for traceability
• MOA-10 Cooling Rack holds nine specimen bottles
• MOA-5 Bottle Scraper for removing interior film
• MOA-3 Oven Tongs for handling hot specimen bottles
