Holmes Coal Pulverizers

Holmes Coal Pulverizer with Manual Feed (115V, 60Hz)

Holmes Coal Pulverizer with Manual Feed (115V, 60Hz)

Model: LC-350
*
*
*
*
*
$8117.0000
Price: $8,117.00

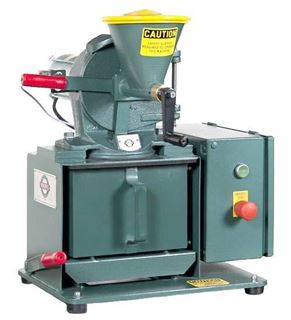

Holmes Coal Pulverizer with Manual Feed (230V, 50Hz)

Holmes Coal Pulverizer with Manual Feed (230V, 50Hz)

Model: LC-350F
*
*
*
*
*
$8684.0000
Price: $8,684.00

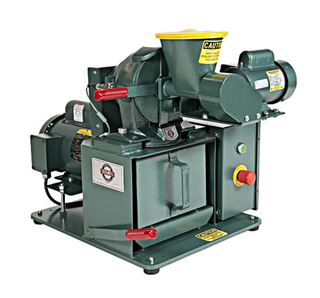

Holmes Coal Pulverizer with Auger Feed, Direct Drive (115V, 60Hz)

Holmes Coal Pulverizer with Auger Feed, Direct Drive (115V, 60Hz)

Model: LC-500
*
*
*
*
*
$11076.0000
Price: $11,076.00
Holmes Coal Pulverizer with Auger Feed, Direct Drive (220V, 50Hz)

Holmes Coal Pulverizer with Auger Feed, Direct Drive (220V, 50Hz)

Model: LC-500F
*
*
*
*
*
$11076.0000
Price: $11,076.00
Holmes Coal Pulverizer with Auger Feed (230V, 60Hz)

Holmes Coal Pulverizer with Auger Feed (230V, 60Hz)

Model: LC-502
*
*
*
*
*
$16046.0000
Price: $16,046.00
Holmes Coal Pulverizer with Auger Feed (220V, 50Hz)

Holmes Coal Pulverizer with Auger Feed (220V, 50Hz)

Model: LC-502F
*
*
*
*
*
$17304.0000
Price: $17,304.00

Holmes Coal Pulverizers are bench-type units that perform well in reducing coal or coke from No. 4 to No. 60 sieve size. Models are available with manual or auger feed. All units are constructed of painted steel and cast iron, and have a one-piece balanced rotor with hard coated hammers, driven by 1hp, single-phase motor with overload protection. Chambers are fully sealed with a quick-opening latch with a safety interlock for cleaning or changing screen plates. Feed hoppers and sample cups are galvanized. Standard feed hoppers have 0.5L capacity and a vinyl snap-on cover. Inquire for 1L hoppers. Each model has a lightweight steel base plate mounted on four rubber pads. A sensor stops power when the chamber door is open and resumes when it is closed and latched.

Five screen plates are supplied with each machine – select from six available perforation diameters: 0.020, 0.024, 0.033, 0.040, 0.0625 and 0.093in (0.508, 0.610, 0.838, 1.02, 1.59 and 2.36mm). Lock pins secure screen plates in the pulverizing chamber. Each model also comes with approximately 10ft of the power cord (but no plug) for connecting to a power source.

LC-350 is equipped with a manual feed from the hopper to the pulverizing chamber. Approximate processing rate is 0.9lb/min (400g/min) with 0.024in screen plate.

LC-500 has a 1/8hp chain-driven auger feed and an approximate processing rate of 0.9lb/min (400g/min) with a 0.024in screen plate.

LC-502 is also equipped with a 1/8hp chain-driven auger feed and includes a 325-cubic inch sample container. Its approximate processing rate is 1lb/min (450g/min) with a 0.024in screen plate. Inquire for 115V/60Hz.

Features:

  • Manual or auger feed models to choose from
  • Rugged steel and cast iron construction
  • Overload protection
  • Sensor halts power when the chamber door is open
  • Fully sealed pulverizing chamber

Included Items:

  • Holmes Coal Pulverizer, Manual or Auger Feed
Maximum Particle Size No.4 (4.75mm)
Final Size No.60 (250µm)
Max. Feed Capacity

LC-350 and LC-500 Models: 0.9lb/min (400g/min)

LC-502 Models: 1lb/min (450g/min)

Grinding Elements Select from (6) Included Plates: 0.020, 0.024, 0.033, 0.040, 0.0625 and 0.093in (0.508, 0.610, 0.838, 1.02, 1.59 and 2.36mm)
Application Coal or coke
Hopper Capacity 18.5gal (0.5L)
Electrical

LC-350: 115V/60Hz, 12 Amps

LC-350F: 230V/50Hz, 12 Amps

LC-500: 115V/60Hz, 13.5 Amps

LC-500F: 220V/50Hz, 13 Amps

LC-502: 230V/60Hz, 7 Amps

LC-502F: 220V/50Hz, 8.2 Amps

Product Dimensions

LC-350: 18 x 22 x 21.5in (508 x 711 x 610mm) WxDxH

LC-500: 19 x 19.5 x 25in (483 x 495 x 635mm) WxDxH

LC-502: 20 x 28 x 24in (508 x 711 x 610mm) WxDxH

Estimated Shipping Weight

LC-350: 100.0lb (45.36kg)

LC-350F: 100.0lb (45.36kg)

LC-500: 130.0lb (58.97kg)

LC-500F: 130.0lb (58.97kg)

LC-502: 150.0lb (68.04kg)

LC-502F: 150.0lb (68.04kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Maximum Particle Size No.4 (4.75mm)
Final Size No.60 (250µm)
Max. Feed Capacity

LC-350 and LC-500 Models: 0.9lb/min (400g/min)

LC-502 Models: 1lb/min (450g/min)

Grinding Elements Select from (6) Included Plates: 0.020, 0.024, 0.033, 0.040, 0.0625 and 0.093in (0.508, 0.610, 0.838, 1.02, 1.59 and 2.36mm)
Application Coal or coke
Hopper Capacity 18.5gal (0.5L)
Electrical

LC-350: 115V/60Hz, 12 Amps

LC-350F: 230V/50Hz, 12 Amps

LC-500: 115V/60Hz, 13.5 Amps

LC-500F: 220V/50Hz, 13 Amps

LC-502: 230V/60Hz, 7 Amps

LC-502F: 220V/50Hz, 8.2 Amps

Product Dimensions

LC-350: 18 x 22 x 21.5in (508 x 711 x 610mm) WxDxH

LC-500: 19 x 19.5 x 25in (483 x 495 x 635mm) WxDxH

LC-502: 20 x 28 x 24in (508 x 711 x 610mm) WxDxH

Estimated Shipping Weight

LC-350: 100.0lb (45.36kg)

LC-350F: 100.0lb (45.36kg)

LC-500: 130.0lb (58.97kg)

LC-500F: 130.0lb (58.97kg)

LC-502: 150.0lb (68.04kg)

LC-502F: 150.0lb (68.04kg)

Meets Standard(s):
