Morse Jaw Crushers

4x6in Morse Jaw Crusher, 60Hz

4x6in Morse Jaw Crusher, 60Hz

Model: LC-20
*
$12058.0000
Price: $12,058.00
4x6in Morse Jaw Crusher, 50Hz

4x6in Morse Jaw Crusher, 50Hz

Model: LC-20F
*
$11915.5000
Price: $11,915.50
5x6in Morse Jaw Crusher, 60Hz

5x6in Morse Jaw Crusher, 60Hz

Model: LC-22
*
$20662.0000
Price: $20,662.00
5x6in Morse Jaw Crusher, 50Hz

5x6in Morse Jaw Crusher, 50Hz

Model: LC-22F
*
$20662.0000
Price: $20,662.00
8x8in Morse Jaw Crusher, 60Hz

8x8in Morse Jaw Crusher, 60Hz

Model: LC-24
*
$34690.0000
Price: $34,690.00
8x8in Morse Jaw Crusher, 50Hz

8x8in Morse Jaw Crusher, 50Hz

Model: LC-24F
*
$34690.0000
Price: $34,690.00

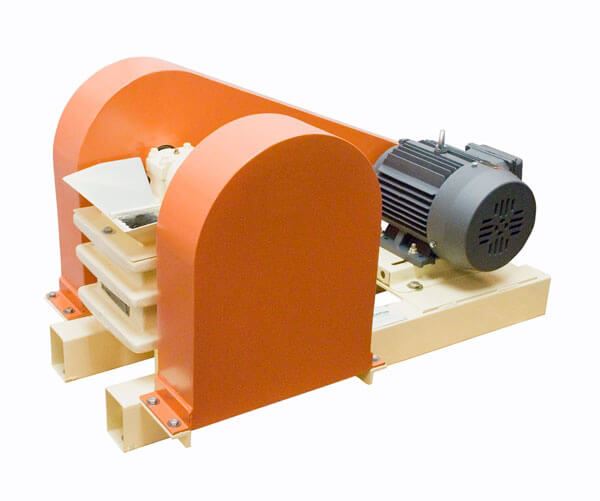

High horsepower, Heavy Duty Morse Jaw Crushers are built for high throughput and oversize feed. They reduce particle size and initiate fracturing in bulk material samples as a first step in sample preparation before testing.

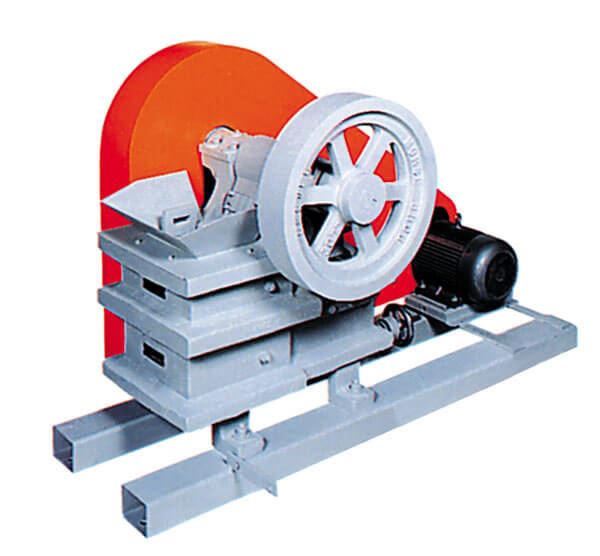

Morse Jaw Crushers use overhead action and corrugated jaw plates to force-feed material and avoid back-flow or "pop out" of particles that occurs on units with smooth jaw plates. Particle sizes to minus 0.25in (6.4mm) is set via the handwheel adjustment of a single toggle. Jaw plates are heat-treated for abrasion resistance and reversible to promote long service life. The durable bronze bearing inserts can be easily replaced in the field. Cast iron alloy frame, motor guard, and feed hopper are mounted on a tubular steel frame and all units are equipped with a TEFC three-phase motor for efficiency.

LC-20 models have 4x6in (102x152mm) jaw size; LC-22F are 5x6in (127x152mm) and LC-24 models have 8x8in (203x203mm) jaw size.

Features:

  • Totally enclosed, fan-cooled, three-phase motor
  • Heat-treated, steel alloy jaw and cheek plates
  • Easily-replaceable bronze bearing inserts
  • Heavy cast frames and flywheels can withstand high loads
  • Reversible jaw plates promote extended service life

Included Items:

  • Morse Jaw Crusher, 50 or 60Hz (4x6in, 5x6in or 8x8in)
Jaw Size

LC-20 and LC-20F: 4 x 6in (102 x 152mm) D x W

LC-22 and LC-22F: 5 x 6in (127 x 152mm) D x W

LC-24 and LC-24F: 8 x 8in (203 x 203mm) D x W

Maximum Feed Size

LC-20 and LC-20F: 3in (76.2mm)

LC-22 and LC-22F: 4in (101.6mm)

LC-24 and LC-24F: 6.5in (165mm)

Final Size

LC-20 and LC-20F: 6.0mm

LC-22, LC-22F, LC-24, and LC-24F: 6.4mm

Capacity

LC-20 and LC-20F: 400-1,200lb (182-545kg) per hour

LC-22 and LC-22F: 1,000-2,500lb (454-1134kg) per hour

LC-24 and LC-24F: 1,500-4,000lb (682-1818kg) per hour

Grinding Media Steel alloy
Application rocks, ores, minerals
Electrical

LC-20: 230/460V / 60Hz, 3hp / 3-Phase

LC-20F: 220/380/440V / 50Hz, 3hp / 3-Phase

LC-22: 230/460V / 60Hz, 5hp / 3-Phase

LC-22F: 220/380/440V / 50Hz, 5hp / 3-Phase

LC-24: 230/460V / 60Hz, 10hp / 3-Phase

LC-22F: 220/380/440V / 50Hz, 10hp / 3-Phase

Note: Select operating Voltage during Add to Cart

Product Dimensions

LC-20 and LC-20F: 42 x 24 x 24in (107 x 61 x 61cm) WxDxH

LC-22 and LC-22F: 54 x 30 x 38in (137 x 76 x 97cm) WxDxH

LC-24 and LC-24F: 73 x 39 x 38in (185 x 99 x 97cm) WxDxH

Estimated Shipping Weight

LC-20: 600.0lbs (272.16kg)

LC-20F: 600.0lbs (272.16kg)

LC-22: 1600.0lbs (725.76kg)

LC-22F: 1600.0lbs (725.76kg)

LC-24: 3700.0lbs (1678.32kg)

LC-24F: 3700.0lbs (1678.32kg)
