Hardgrove Grindability Tester

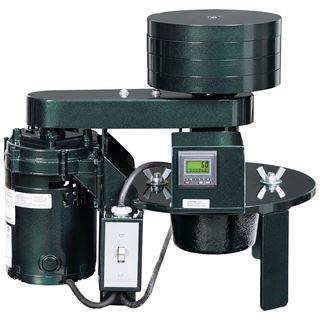

Hardgrove Grindability Tester (115V / 60Hz)

Hardgrove Grindability Tester (115V / 60Hz)

Model: LC-100
$9500.0000
Price: $9,500.00
Hardgrove Grindability Tester (230V / 50Hz)

Hardgrove Grindability Tester (230V / 50Hz)

Model: LC-100F
$11183.0000
Price: $11,183.00

LC-100 Hardgrove Grindability Tester measures relative ease of pulverization of coals compared to standard coals in accordance with ASTM D409 Hardgrove Machine Method. The resulting Hardgrove Grindability Index (HGI) provides a measure of energy required in a grinding process or a measure of yield for a given energy input.

A prepared 50g sample of No.16—No.30 sieve size coal and eight 1in (25.4mm) diameter polished steel grinding balls are placed in a stationary bowl having a machined circular track. An upper grinding ring with matching track is rotated at 20rpm to drive the balls while a fixed load of 64lb (29kg) is maintained by weighting the motor-driven spindle attached to the upper ring. A counter/switch assembly automatically stops the tester after 60 revolutions, and amount of grinding is determined by sieving on a No.200 sieve.

The unit is made from durable steel and cast iron materials throughout to ensure reliable, maintenance-free operation. Upper and lower grinding elements and 8 grinding balls are included with each model.

New Hardgrove units must be user-calibrated with a set of four LCA-30 Reference Samples having approximately 40, 60, 80, and 100 Hardgrove Grindability Index (HGI) values. The LC-82 Motorized Disk Mill (available separately) meets ASTM requirements for sample preparation for the LC-100.

Features:

  • Provides reliable and maintenance-free operation
  • Meets ASTM D409 standards

Included Items:

  • Hardgrove Grindability Tester (115V/60Hz or 230V/50Hz)
  • Grinding Elements
  • 8 Grinding Balls

Accessories:

  • LCA-30 Reference Samples with four different HGI values for calibrating new grindability machine
Maximum Particle Size 0.04in (1mm)
Final Size 75µm
Max. Feed Capacity 50g/batch
Grinding Elements (8) 1in (25.4mm) Steel Grinding Balls
Electrical

LC-100: 115V / 60Hz / 5Amps

LC-100F: 230V / 50Hz / 5Amps

Product Dimensions 20 x 16 x 16in (508 x 406 x 406mm), WxDxH
Estimated Shipping Weight

LC-100: 180.0lbs (81.65kg)

LC-100F: 265.0lbs (120.20kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Maximum Particle Size 0.04in (1mm)
Final Size 75µm
Max. Feed Capacity 50g/batch
Grinding Elements (8) 1in (25.4mm) Steel Grinding Balls
Electrical

LC-100: 115V / 60Hz / 5Amps

LC-100F: 230V / 50Hz / 5Amps

Product Dimensions 20 x 16 x 16in (508 x 406 x 406mm), WxDxH
Estimated Shipping Weight

LC-100: 180.0lbs (81.65kg)

LC-100F: 265.0lbs (120.20kg)

Meets Standard(s):
