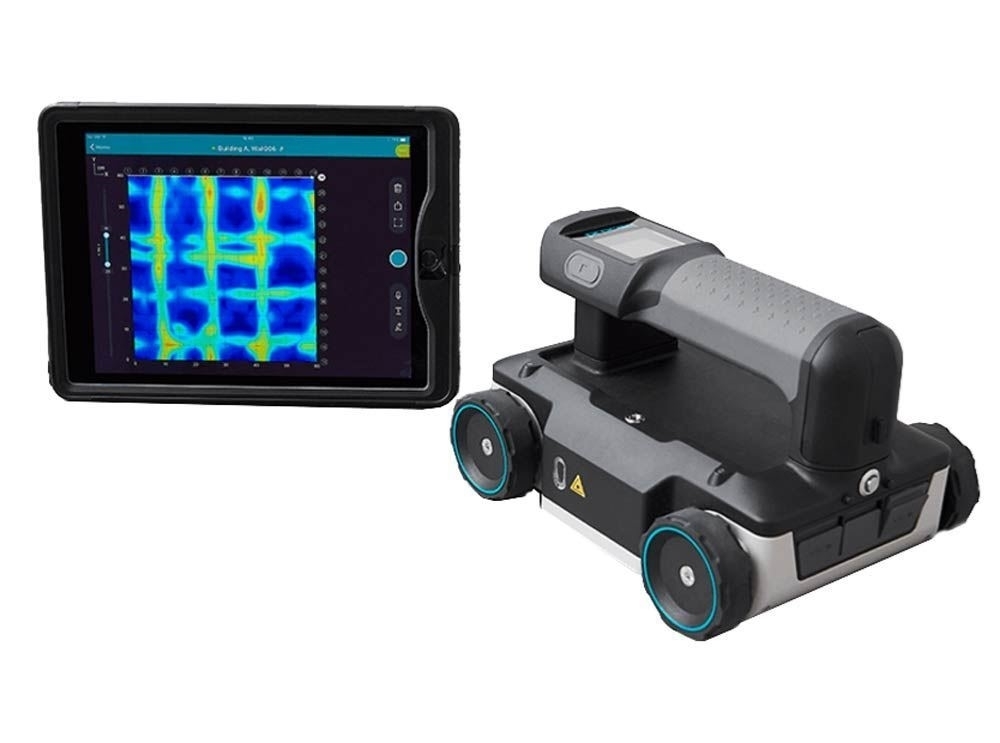

Proceq GP8000 Ground Penetrating Radar (GPR) is a handheld ground penetrating radar system featuring stepped frequency continuous wave (SFCW) technology for unparalleled subsurface evaluation of concrete bridges, buildings, pavements, and other concrete construction. Using SFCW technology, scanning covers all frequencies from 0.2 to 4.0GHz in a single pass. This versatility enables the rapid assessment of concrete integrity, as-built verification, thickness measurement, and hit prevention, allowing for marking of drilling, cutting, and coring locations.

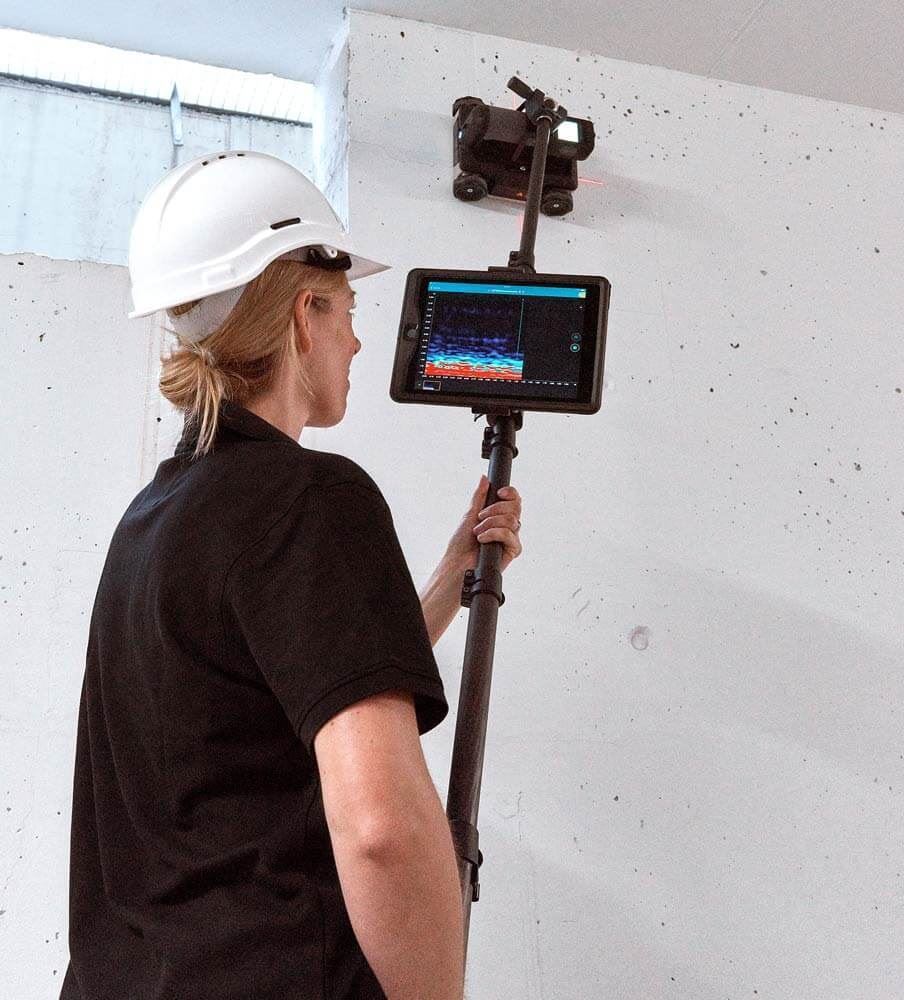

This handheld GPR system detects steel reinforcing bars and mesh, secondary layers of reinforcement, tendon ducts, cables, conduits, and other embedments. Voids, inclusions, and discontinuities are also identified, and slab or wall thicknesses are measured from a single side.

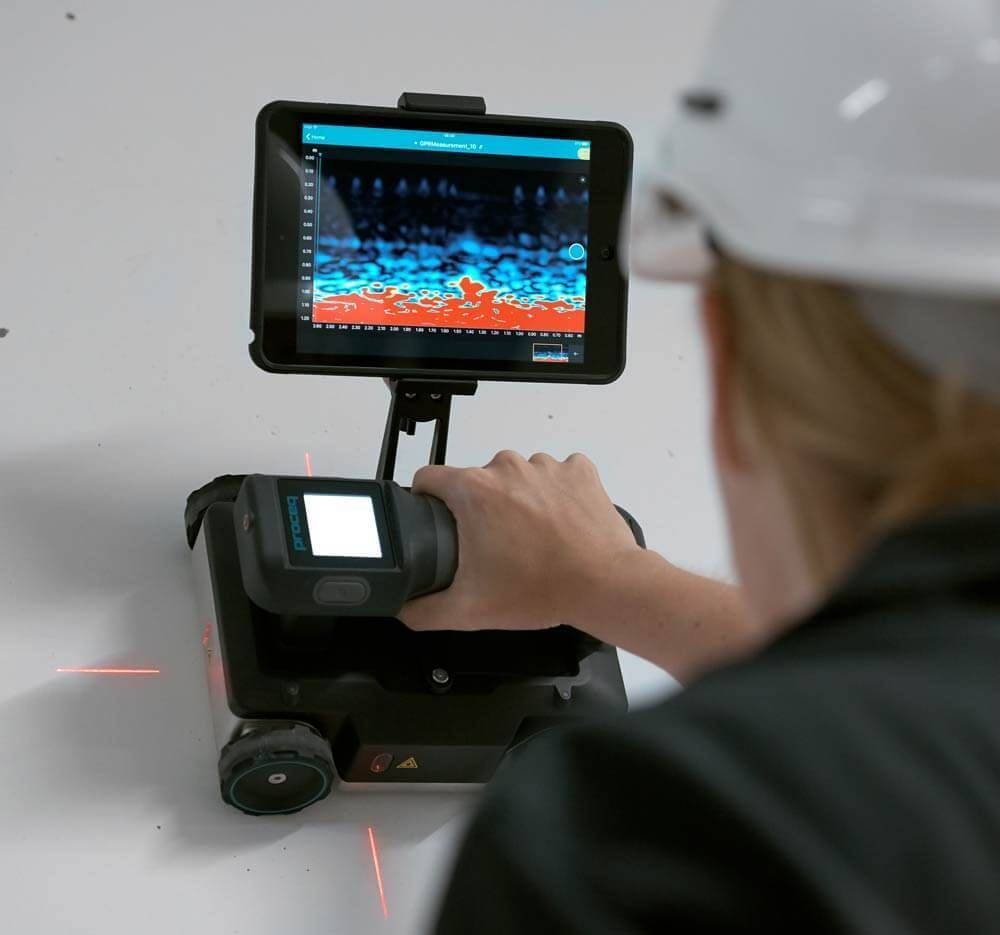

The probe antenna is housed in a four-wheel scan car with 8mm of ground clearance and laser guidance for accurate GPR data acquisition. Powered by battery packs using eight rechargeable or easily replaceable AA batteries, the unit operates for up to 3 hours under continuous use. The Wi-Fi module provides completely independent operation from the iPad and features a wireless range of up to 20m.
CT-158 GPR Pro provides a multitude of capabilities. It integrates wirelessly with a user-supplied Apple iPad running iPadOS 13.6 or later. This system leverages powerful post-processing capacity, high visual resolution, and reporting and collaboration features built into the iPad as an ideal platform to view, collect, and distribute results. Visualizations, graphics, and report data can be shared instantly to the cloud from any location.
CT-158 includes the sensor unit, two battery packs, Wi-Fi module, carrying strap, chalk, two sizes of grid paper, carrying case, and Pro software license. Free support, updates, and new releases are provided for a five-year period after the initial purchase. The software remains fully functional after five years, and full support and upgrades can be extended with the option to subscribe to continued support. The user can replace or upgrade Apple iPad hardware and operating systems at any time for improved performance without needing to replace the GPR sensor.
When using Pro software with an augmented reality (AR) capable iPad, 2D and 3D visualization is overlaid on the real-world environment when looking through the iPad to provide real-time, in situ imaging of subsurface conditions with the highest resolution in the industry. The Pro software also enables detection of electrical lines with live current and features cloud connectivity for live data sharing and reporting.
Data is tracked and secured in the cloud using an automatic logbook feature in the Pro software app. This allows post-processing and data review from any iPad signed into the connected app. All measurements, changes, and settings are tracked and included with the scan. Geolocation, photos, audio notes, and comments can also be added to the scan for quick reporting of details to off-site personnel.
Pro measurement modes include line scans or an area scan on a grid up to 1,076ft2 (100m2). Rebars up to 60in (1,500mm) deep are detected and rendered on the display. Review modes include migrated and non-migrated views, 3D, augmented reality (AR), split view, and time-slice view. CSV and HTML data, as well as JPG, PNG, and SEGY images, can be shared with clients and stakeholders.
CT-157 GPR Lite serves as a streamlined system, ideal for fast thickness measurement and detection of rebar and live wire. It provides essential functionality for routine use and integrates wirelessly with a user-supplied Apple iPad running iPadOS 13.6 or later. Lite measurement modes include line scans or an area scan on a 24x24in (600x600mm) grid. Rebars up to 31.5in (800mm) deep are detected and recorded. Review modes include migrated and non-migrated views, as well as a basic time-slice view.
CT-157 includes the sensor unit, two battery packs, Wi-Fi module, carrying strap, chalk, two sizes of grid paper, carrying case, and Lite software license. Free support, updates, and new releases are provided for a five-year period after the initial purchase. The software remains fully functional after five years, and full support and upgrades can be extended with the option to subscribe to continued support. At any time, the user can choose to upgrade to the Pro software for an additional fee, and the user can replace or upgrade Apple iPad hardware and operating systems at any time for improved performance without needing to replace the GPR sensor.
Features
- Accurately detect rebar, live wires, embedments, and more
- Ergonomic design and user-friendly interface
- Assess a multitude of concrete structures, including pavement, bridges, and more
Included Items

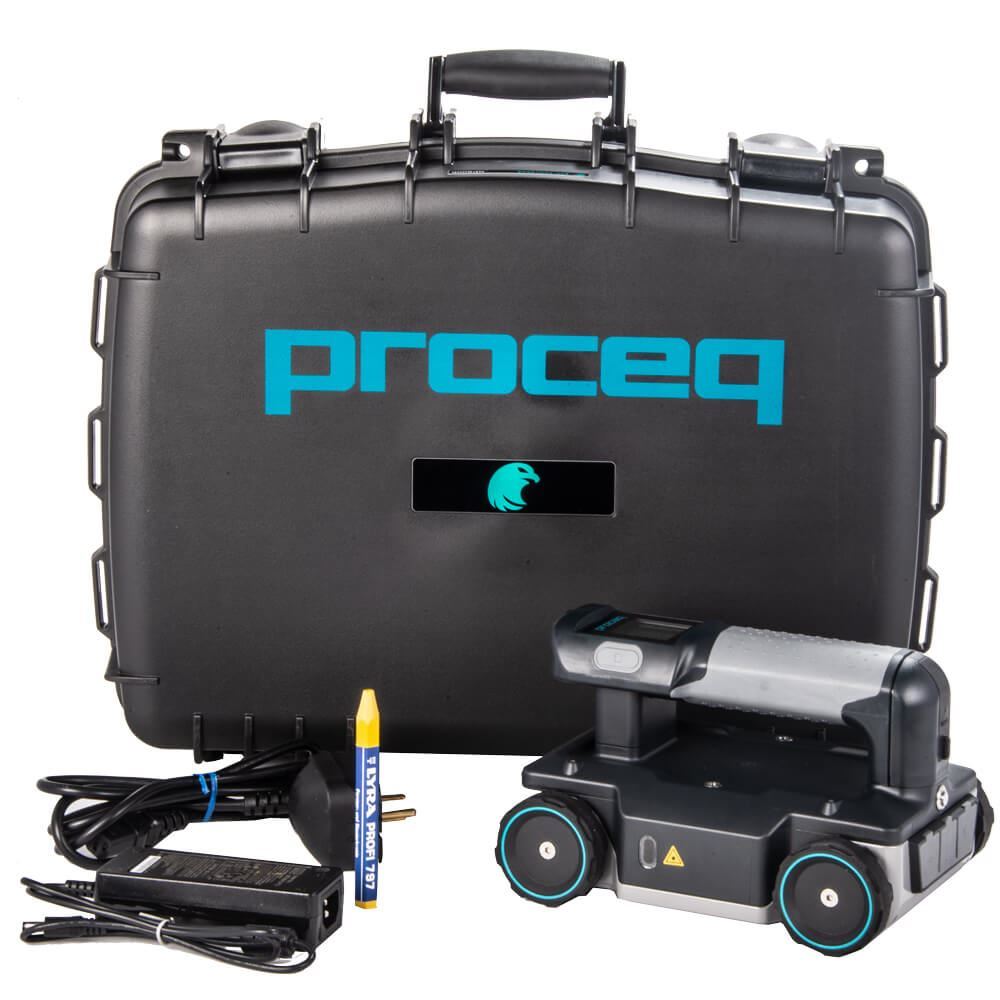

- GP8000 GPR Unit
- Carrying case
- Carrying strap
- (2) battery packs with flight-safe rechargeable NiMH batteries
- Power supply
- Chalk
- (2) sizes of grid paper
- Quick Start Guide
