Gilson Wet-Vac® Sieve Shaker

Product Files
Gilson Wet-Vac® Sieve Shaker for 12in Sieves (115V / 60Hz)

Gilson Wet-Vac® Sieve Shaker for 12in Sieves (115V / 60Hz)

Model: WV-1
Call for pricing
Gilson Wet-Vac® Sieve Shaker for 12in Sieves (230V / 50Hz)

Gilson Wet-Vac® Sieve Shaker for 12in Sieves (230V / 50Hz)

Model: WV-1F
Call for pricing
Gilson Wet-Vac® Sieve Shaker for 8in Sieves (115V / 60Hz)

Gilson Wet-Vac® Sieve Shaker for 8in Sieves (115V / 60Hz)

Model: WV-2
Call for pricing
Gilson Wet-Vac® Sieve Shaker for 8in Sieves (230V / 50Hz)

Gilson Wet-Vac® Sieve Shaker for 8in Sieves (230V / 50Hz)

Model: WV-2F
Call for pricing
Gilson Wet-Vac® Sieve Shaker for 8in/12in Sieves (115V / 60Hz)

Gilson Wet-Vac® Sieve Shaker for 8in/12in Sieves (115V / 60Hz)

Model: WV-3
Call for pricing
Gilson Wet-Vac® Sieve Shaker for 8in/12in Sieves (230V / 50Hz)

Gilson Wet-Vac® Sieve Shaker for 8in/12in Sieves (230V / 50Hz)

Model: WV-3F
Call for pricing

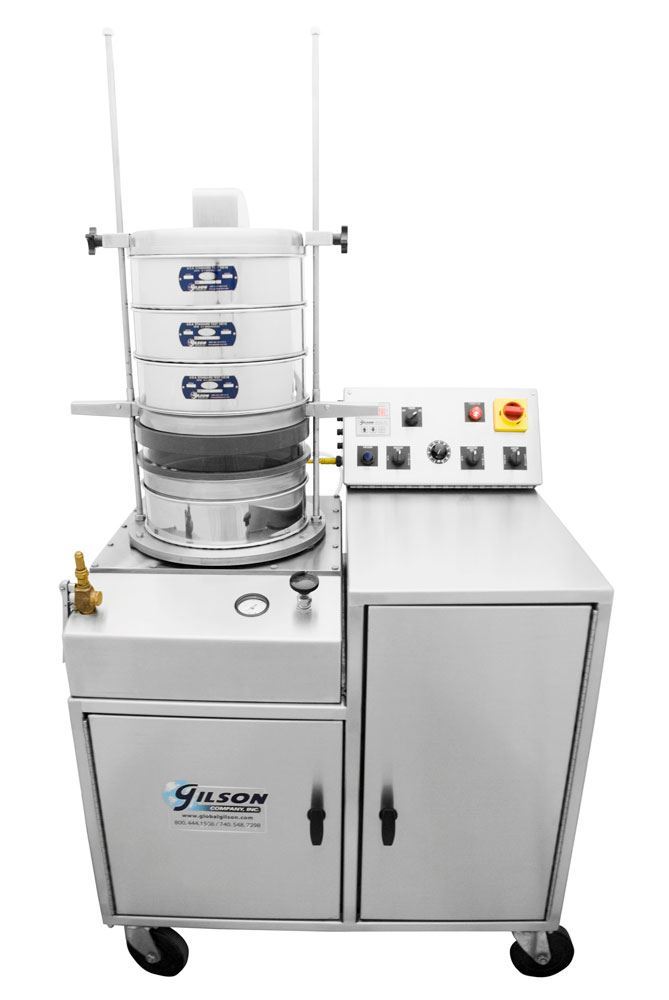

Gilson Wet-Vac® Sieve Shaker is a self-contained particle sizing system for mainly wet sieving applications to assure particle separation efficiency. The innovative design includes rotary spray distribution, water recycling, vacuum assist, and full vibration control. Wet sieving is especially useful for coal and mining/minerals, marine sediments, soils, pipeline slurries, and other non-soluble materials. Wet-Vac® tests closely simulate actual production conditions in wet-process industries.

The Wet-Vac® filtration enables complete recovery of fines and has separate modes of dry, wet, or dry-to-wet sieving methods that enhance flexibility and improve test accuracy. A rotating spray bar in the sieve cover gently saturates the materials, promoting the gravity flow of fines through the sieve stack while preventing agglomeration. An upward spray below allows for constant water flow.

A vacuum of 3in (76mm) of mercury is applied throughout the test cycle to assist the passage of fines further. Powerful electromagnetic vibration with amplitude control disperses material for increased sieving speed and accuracy. Fines are retained on filter paper secured in a special holder that permits the paper to be changed during a test cycle if necessary. Water is recycled through a 7gal (26.5L) holding tank, and pressure is adjustable to approximately 35psi (2.4bar). Valves and fittings also permit direct connections to a water tap and drain for a once-through operation.

Controls, gauges, and indicators for water, vibration, and vacuum are situated for easy access to the control panel. The built-in timer tracks total operational time up to 99 minutes, even when interruptions are necessary. The custom-welded stainless steel cabinet houses the water tank, pump, vibrating assembly, valving, and other components, and is mounted on locking casters.

WV-1 Models accept 12in/300mm sieves.

WV-2 Models accept 8in/200mm sieves.

WV-3 Models have cover assemblies and lifting rings to accommodate 8in/200mm and 12in/300mm sieves.

Sieve Shaker
Model
8in/200mm Sieve Capacity
(Full-Height / Half-Height)
12in/300mm Sieve Capacity
(Full-Height / Half-Height)
WV-18 / 16
WV-25 / 8
WV-35 / 88 / 16

Features:

  • Ideal particle sizing system for dry, wet, or dry-to-wet sieving applications
  • Convenient controls, gauges, and indicators are easily accessible on the ergonomic control panel
  • Timer tracks total operation time when interruptions occur
  • Secure, locking casters keep units in place for added safety

Included Items:

  • Gilson Wet-Vac® Sieve Shaker
  • Hand spray nozzle and hose
  • Clear acrylic cylinder

Accessories:

Related blogs:

Sieve Frame Diameter 8in, 12in, 200mm, & 300mm
Particle Size Range No.16–No.635 (1.18mm–20µm)
Motion/Agitation Vibratory
Sieve Capacity with Pan

Full Height: (5) 8in/200mm Sieves or (8) 12in/300mm Sieves

Half Height: (16) 8in/200mm Sieves or (16) 12in/300mm Sieves

Timing Capacity Up to 99 minutes
Mounting Capability No
Electrical

WV-1, WV-2 & WV-3: 115V / 60Hz / 16 Amps

WV-1F, WV-2F & WV-3F: 230V / 50Hz / 16 Amps

Product Dimensions 34 x 26 x 64in (864 x 660 x 1,626mm), WxDxH
Estimated Shipping Weight

WV-1: 440.0lb (199.58kg)

WV-1F: 465.0lb (210.92kg)

WV-2: 440.0lb (199.58kg)

WV-2F: 465.0lb (210.92kg)

WV-3: 440.0lb (199.58kg)

WV-3F: 465.0lb (210.92kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Sieve Frame Diameter 8in, 12in, 200mm, & 300mm
Particle Size Range No.16–No.635 (1.18mm–20µm)
Motion/Agitation Vibratory
Sieve Capacity with Pan

Full Height: (5) 8in/200mm Sieves or (8) 12in/300mm Sieves

Half Height: (16) 8in/200mm Sieves or (16) 12in/300mm Sieves

Timing Capacity Up to 99 minutes
Mounting Capability No
Electrical

WV-1, WV-2 & WV-3: 115V / 60Hz / 16 Amps

WV-1F, WV-2F & WV-3F: 230V / 50Hz / 16 Amps

Product Dimensions 34 x 26 x 64in (864 x 660 x 1,626mm), WxDxH
Estimated Shipping Weight

WV-1: 440.0lb (199.58kg)

WV-1F: 465.0lb (210.92kg)

WV-2: 440.0lb (199.58kg)

WV-2F: 465.0lb (210.92kg)

WV-3: 440.0lb (199.58kg)

WV-3F: 465.0lb (210.92kg)

Meets Standard(s):
