Gillmore Needle Apparatus

Model: HM-310
Price: $410.00

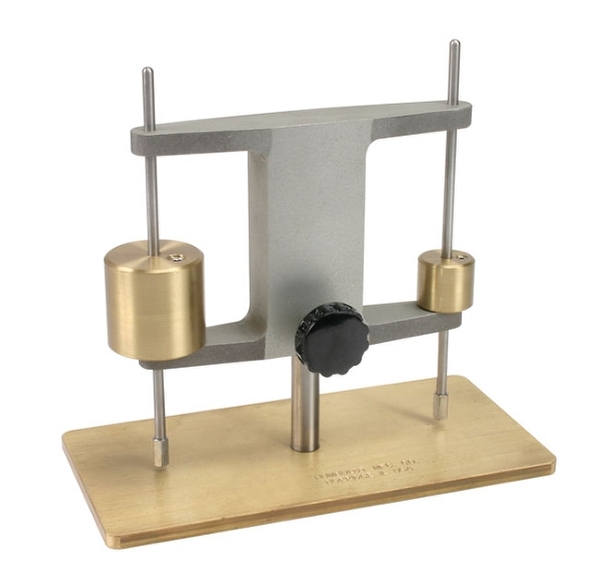

Gillmore Needle Apparatus is used to determine initial and final set times of Portland cement, masonry cement, hydraulic hydrated lime, and certain mortars in accordance with ASTM C266 and other standards. The adjustable support has horizontal arms to guide two weighted needles with flat-end cylindrical stainless steel tips. The base has an ample flat shelf for positioning specimens. In testing the molded specimen for the time of setting, the initial-set needle is 1/4lb (113.4g) and 1/12in (2.12mm) diameter. Final-set needle is 1lb (453.6g) and 1/24in (1.06mm) diameter.


  • Meets several ASTM and AASHTO test methods for set-time testing
  • Includes initial and final-set needles
  • Large base to position specimens

Included Items:

  • Gillmore Needle Apparatus

Related blogs:

Product Dimensions 6 x 3.5 x 4in (152 x 89 x 102mm), WxDxH
Estimated Shipping Weight 10.0lb (4.54kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Product Dimensions 6 x 3.5 x 4in (152 x 89 x 102mm), WxDxH
Estimated Shipping Weight 10.0lb (4.54kg)
