Marshall Compactors, Automatic, 4in Mold

Marshall Compactor, Automatic, 4in Mold (64 Blows/Min, 115V / 60Hz)

Marshall Compactor, Automatic, 4in Mold (64 Blows/Min, 115V / 60Hz)

Model: MS-1
$2480.0000
Price: $2,480.00
Marshall Compactor, Automatic, 4in Mold (64 Blows/Min, 230V / 50Hz)

Marshall Compactor, Automatic, 4in Mold (64 Blows/Min, 230V / 50Hz)

Model: MS-1F
$2680.0000
Price: $2,680.00
Marshall Compactor, Automatic, 4in Mold (55 Blows/Min, 115V / 60Hz)

Marshall Compactor, Automatic, 4in Mold (55 Blows/Min, 115V / 60Hz)

Model: MS-1B
$2480.0000
Price: $2,480.00
Marshall Compactor, Automatic, 4in Mold (55 Blows/Min, 230V / 50Hz)

Marshall Compactor, Automatic, 4in Mold (55 Blows/Min, 230V / 50Hz)

Model: MS-1BF
$2680.0000
Price: $2,680.00

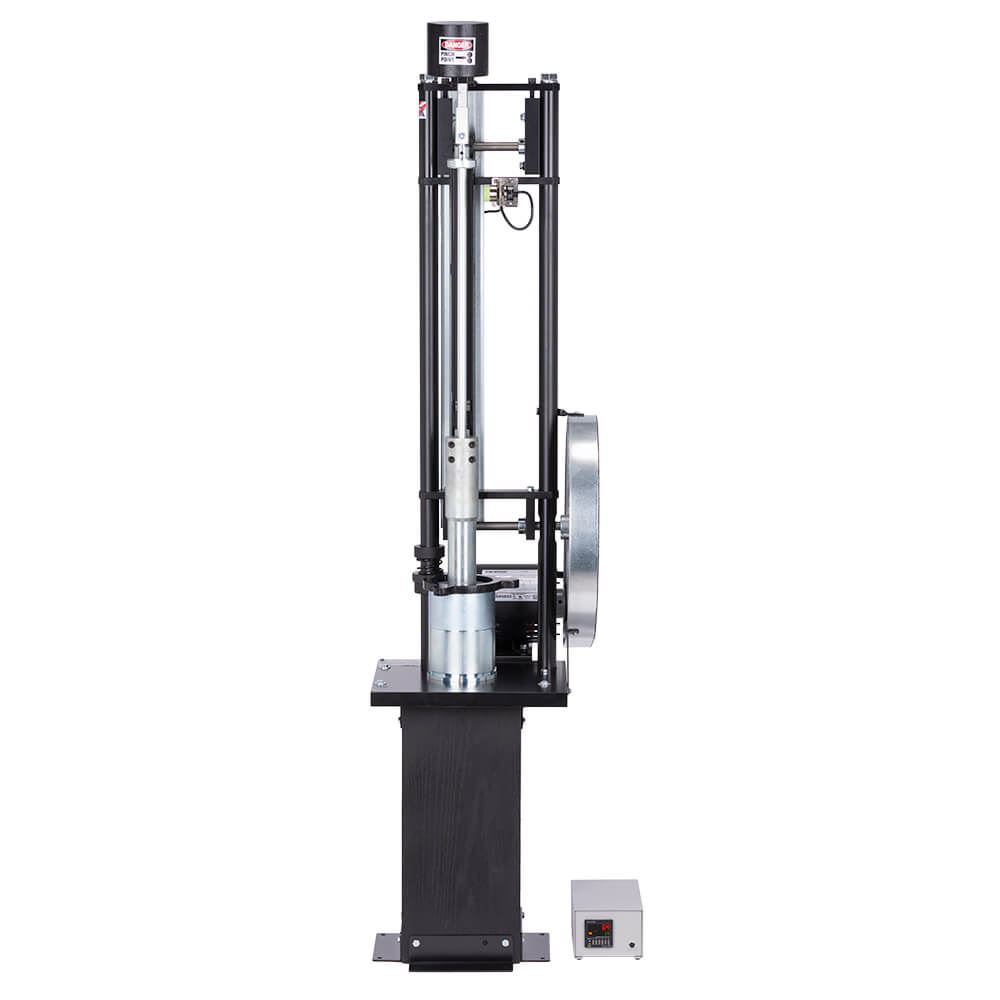

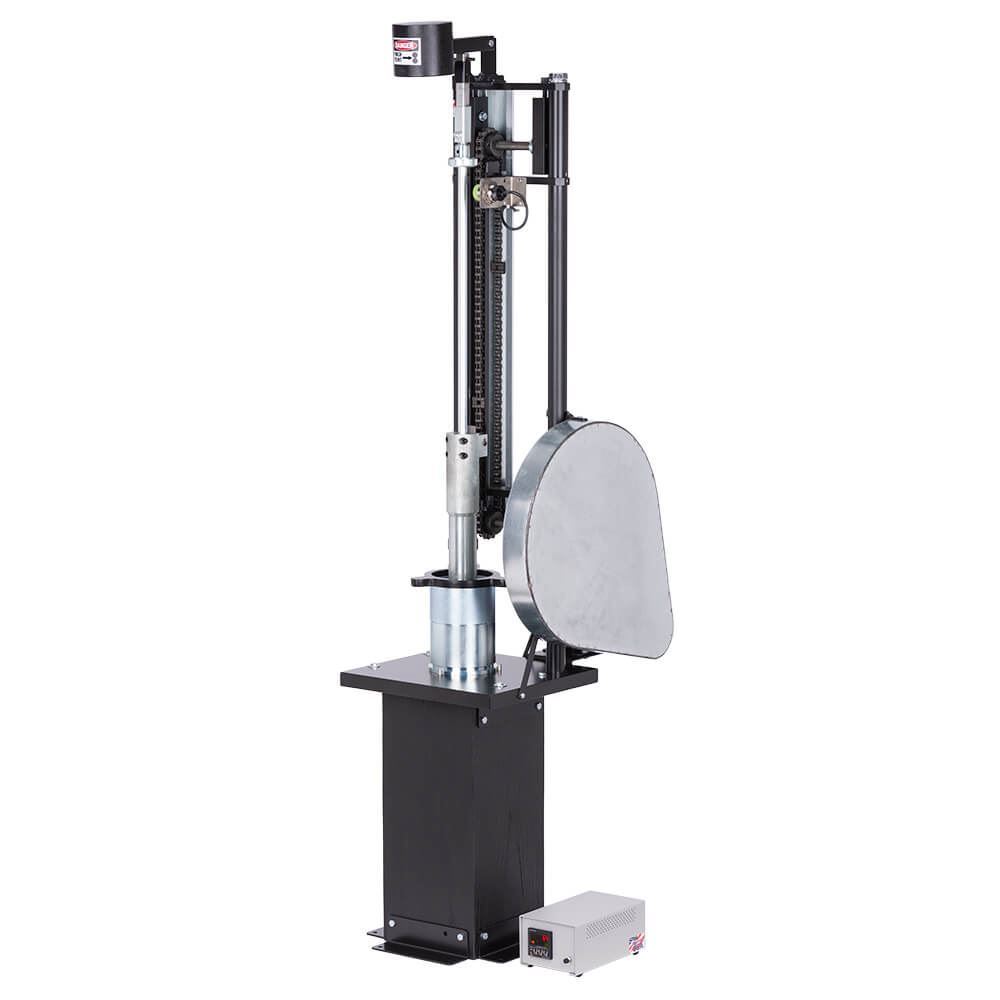

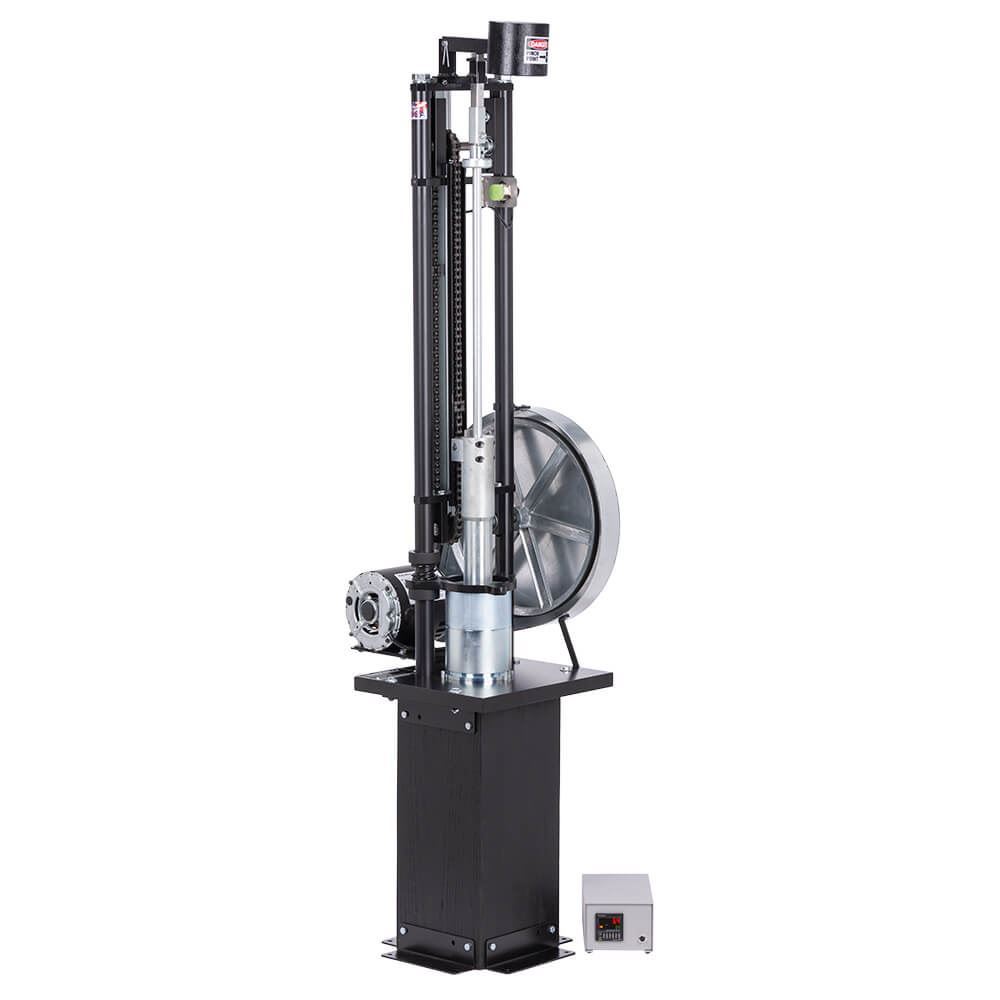

Marshall Compactor, Automatic, 4in Mold compacts asphalt samples in a stationary 4in (102mm) mold with an automatic counter controlling the specified number of blows per minute. Operation stops at completion. The unit includes an ASTM-compliant oak pedestal with steel plate, a 10lb (4.5kg), flat-face hammer, and an MSA-100 Stationary Marshall Compaction Mold Set which includes 4in mold, base, and collar.

MS-1 models meet ASTM D6926 with 64 blows per minute.

MS-1B models operate at 55 blows per minute.

Features:

  • Automatic system for compacting Marshall samples in stationary 4in molds
  • Automated counter controls the number of blows and stops at the completion
  • Compaction rate of either 55 or 64 blows per minute

Included Items:

  • Marshall Compactor, Automatic, 4in Mold with 64 or 55 blows/min (115V/60Hz or 230V/50Hz)
  • ASTM-compliant Oak Pedestal with steel plate
  • 10lb (4.5kg) flat-face hammer
  • 4in Stationary Marshall Compaction Mold Set

Accessories:

Electrical

MS-1: 115V / 60Hz / 7Amps

MS-1F: 230V / 50Hz / 3.4Amps

Product Dimensions 20 x 12 x 66in (508 x 305 x 1,676mm) WxDxH
Estimated Shipping Weight 226.0lb (102.51kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Electrical

MS-1: 115V / 60Hz / 7Amps

MS-1F: 230V / 50Hz / 3.4Amps

Product Dimensions 20 x 12 x 66in (508 x 305 x 1,676mm) WxDxH
Estimated Shipping Weight 226.0lb (102.51kg)
Meets Standard(s):
