8" Sieve, Brass/Stainless, 4" Deep, #325 with Backing Cloth

Model: WT-84C #325 BU
$236.0000
Price: $236.00

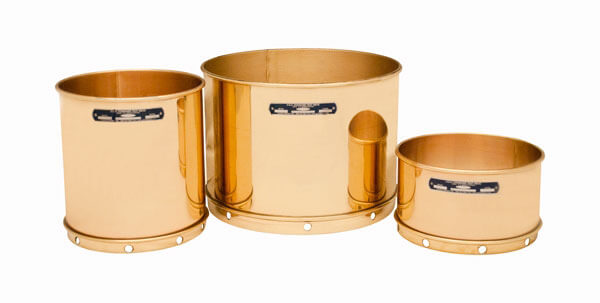

8in (203mm) diameter ASTM E11 Deep Frame Wet-Wash Test Sieve is constructed of brass frame and stainless steel mesh with No. 325 (45µm) openings. Overall frame depth is 4in (102mm) and is supplied with No. 30 Backing Cloth.

Features:

  • Optimal for fines content determinations or sample preparation for particle size testing
  • Compliant with ASTM E11
  • Deep frames contain wash water
  • Nesting capability with standard sieves

Included Items:

  • 8in (203mm) Deep Frame Wet-Wash Sieve, Brass Frame / Stainless Steel Mesh, 4in (102mm) depth
  • Certificate of Conformance to ASTM E11 requirements
  • No. 30 Backing Cloth

Accessories:

  • Sieve Pans nest underneath sieves to collect fines
  • Sieve Covers prevent sample loss during agitation
  • Verification Services provide NIST traceable documentation of opening sizes
  • Sieve Cleaning Brushes ensure full recovery of specimens and proper care of sieves
Frame Diameter 8in (203mm)
Frame Height Above Cloth 4in (102mm)
Material Brass Frame / Stainless Steel Cloth
Backing Cloth Included Yes
ASTM E11 Opening Size No.325 (45µm)
Estimated Shipping Weight 3.0lbs (1.36kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Frame Diameter 8in (203mm)
Frame Height Above Cloth 4in (102mm)
Material Brass Frame / Stainless Steel Cloth
Backing Cloth Included Yes
ASTM E11 Opening Size No.325 (45µm)
Estimated Shipping Weight 3.0lbs (1.36kg)
Meets Standard(s):
