8in Sieve, Brass/Stainless, 4in Deep, #170

Model: WT-84C #170
More Information
$308.0000
Price: $308.00

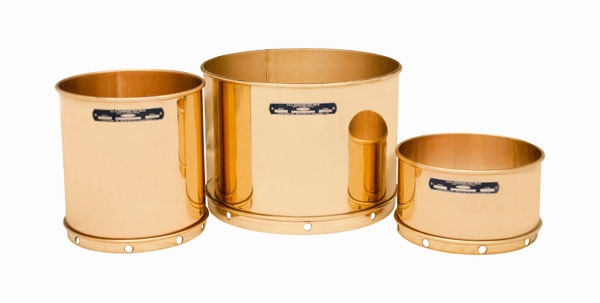

8in (203mm) diameter ASTM E11 Deep Frame Wet-Wash Test Sieve is constructed of the brass frame and stainless steel cloth with No.170 (90µm) openings. The overall frame depth is 4in (102mm).

Features:

  • Optimal for fines content determinations or sample preparation for particle size testing
  • Compliant with ASTM E11
  • Deep frames contain wash water
  • Nesting capability with standard sieves

Included Items:

  • 8in (203mm) Deep Frame Wet-Wash Sieve, Brass Frame / Stainless Steel Cloth, 4in (102mm) depth
  • Certificate of Conformance to ASTM E11 requirements

Accessories:

ASTM E11 Opening Size No.170 (90µm)
Sieve Frame Diameter 8in (203mm)
Frame Height Above Cloth 4in (102mm)
Material Brass Frame / Stainless Steel Cloth
Backing Cloth Included No
Estimated Shipping Weight 3.0lb (1.36kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

ASTM E11 Opening Size No.170 (90µm)
Sieve Frame Diameter 8in (203mm)
Frame Height Above Cloth 4in (102mm)
Material Brass Frame / Stainless Steel Cloth
Backing Cloth Included No
Estimated Shipping Weight 3.0lb (1.36kg)
Meets Standard(s):
