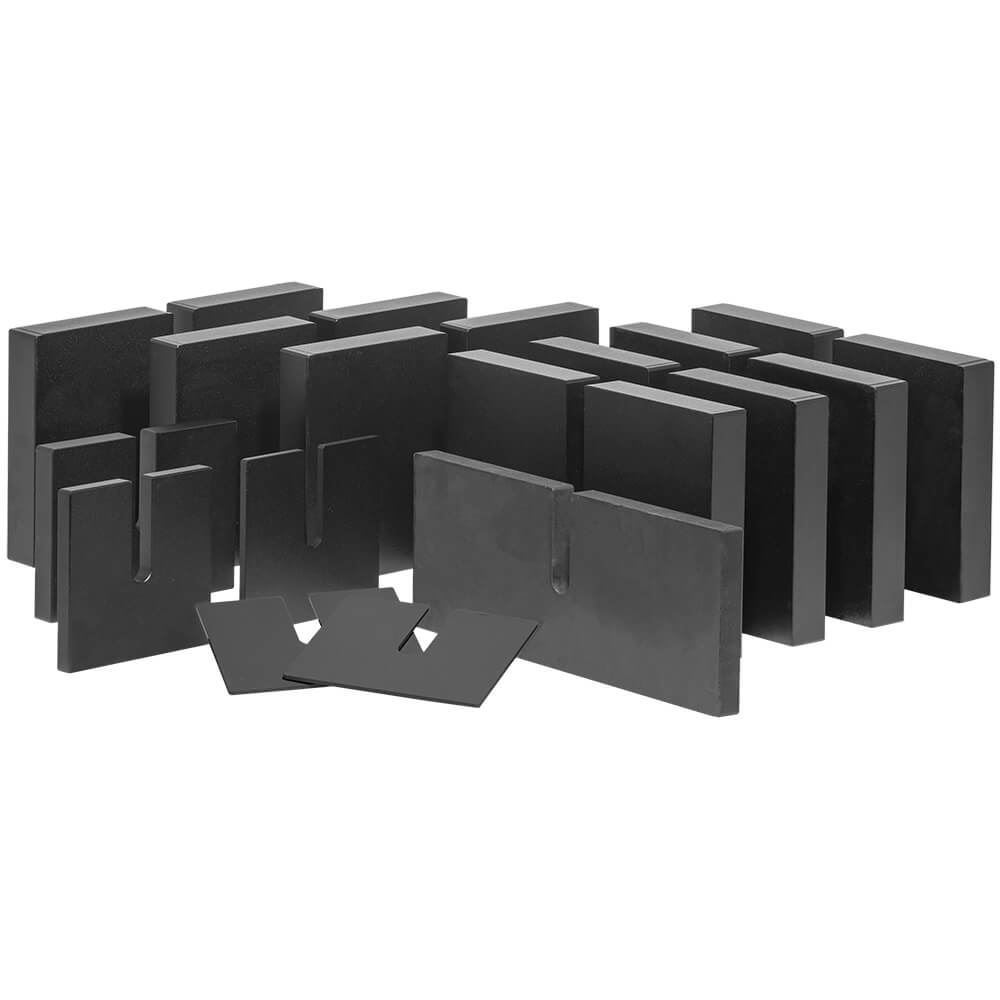

218.2lb Weight Set

HMA-729 218.2lb Weight Set offers a sequence of different weights in pound units with a total mass of 218.2lb for Dead-Weight Direct/Residual Shear Machines or HM-353 Dead-Weight Consolidation Load Frame. When used with a loading beam ratio of 10:1, a total load of 2,182lbf can be applied to the specimen. For a 2.50in (63.5mm) diameter specimen, the maximum pressure would be 32tsf.

Features:

• The total mass of 218.2lb
• The total load of 2182lbf with 10:1 beam ratio

Included Items:

• Two 0.852lb weights (1/8tsf)
• One 1.704lb weight (1/4tsf)
• One 3.409lb weight (1/2tsf)
• One 6.818lb weight (1tsf)
• One 13.635lb weight (2tsf)
• Seven 27.27lb weights (4tsf)
