3in Acrylic Frame Sieve, Stainless, No.5 (4.0mm)

Model: GAA-22
More Information
$94.0000
Price: $94.00

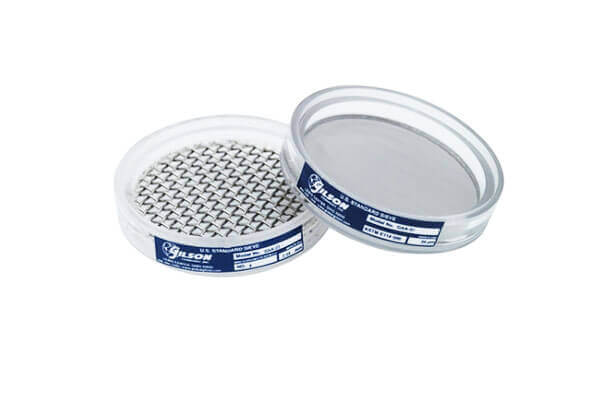

3in (74mm) diameter Acrylic Frame Test Sieve has ASTM E11 stainless steel woven-wire cloth with No.5 (4.0mm) openings. The overall height is 0.80in (20.3mm) and the stacked height is 0.72in (18.3mm).

Required for the GA-6 Gilsonic AutoSiever Sonic Sifter and recommended as an alternative to metal frame sieves for the SS-3 Gilson 3in Vibratory Sieve Shaker.

Features

  • Individually serial numbered
  • Clear frames make it easy to observe samples during testing
  • Short stacking height enables twice as many sieves in a stack compared to metal frame sieves
  • Compliant with ASTM E11 requirements for Compliance Test Sieves

Included Items

  • 3in Acrylic Frame Test Sieve, Stainless, No.5 (4.0mm)
  • Certificate of Conformance to ASTM E11 requirements

Accessories

ASTM E11 Opening Size No.5 (4.0mm)
Overall Frame Height 0.80in (20.3mm)
Stacked Frame Height 0.72in (18.3mm)
Sieve Frame Diameter 3in (76mm)
Material Acrylic Frame/Stainless Steel Cloth
Estimated Shipping Weight 0.5lb (0.23kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

ASTM E11 Opening Size No.5 (4.0mm)
Overall Frame Height 0.80in (20.3mm)
Stacked Frame Height 0.72in (18.3mm)
Sieve Frame Diameter 3in (76mm)
Material Acrylic Frame/Stainless Steel Cloth
Estimated Shipping Weight 0.5lb (0.23kg)
Meets Standard(s)
