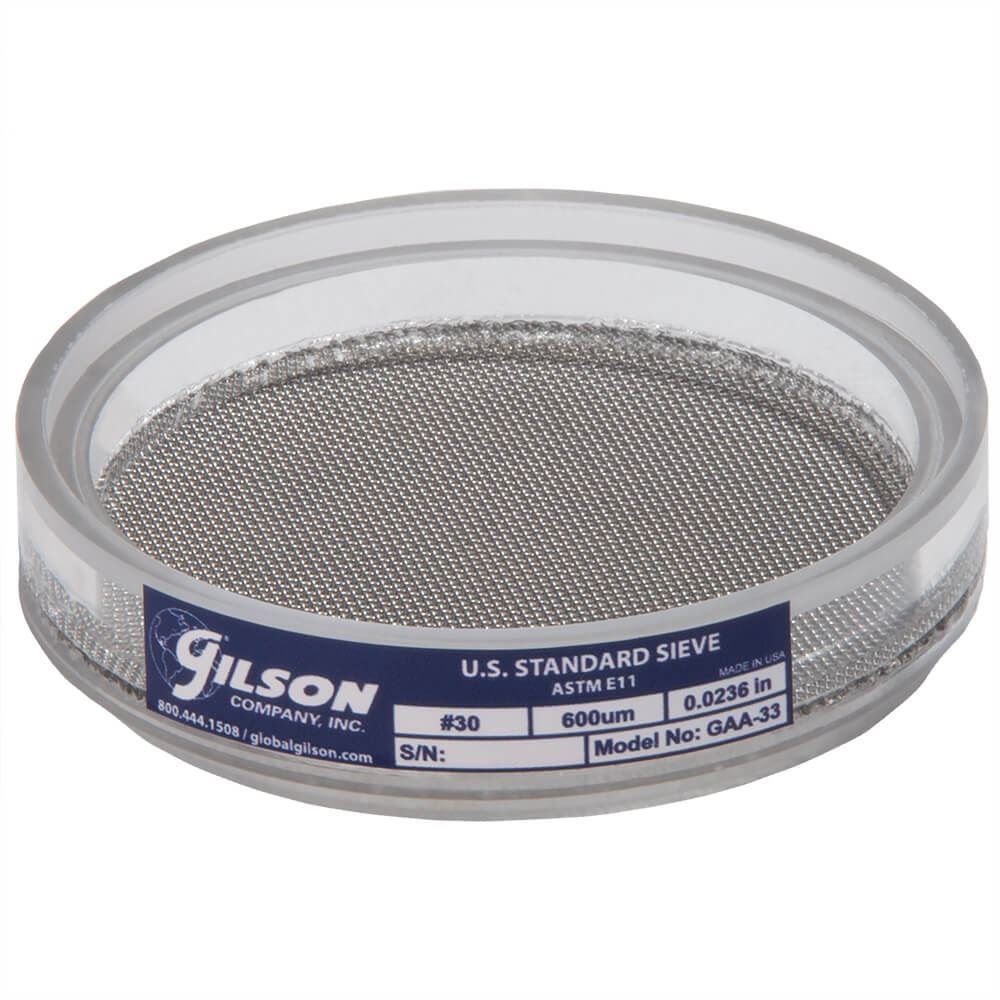

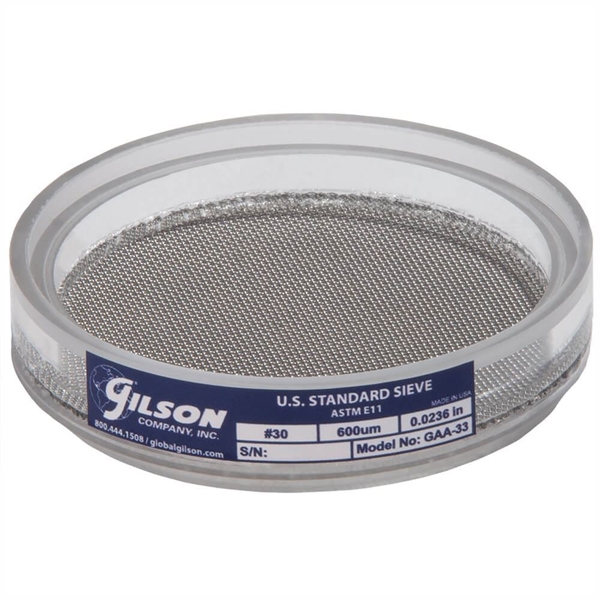

3in Acrylic Frame Sieve, Stainless, No.30 (600µm)

3in (76mm) diameter Acrylic Frame Test Sieve has ASTM E11 stainless steel woven-wire cloth with No.30 (600µm) openings. The overall height is 0.80in (20.3mm), and the stacked height is 0.72in (18.3mm).

Required for the GA-6 Gilsonic AutoSiever Sonic Sifter and recommended as an alternative to metal frame sieves for the SS-3 Gilson 3in Vibratory Sieve Shaker.

Features

• Individually serial numbered
• Clear frames make it easy to observe samples during testing
• Short stacking height enables twice as many sieves in a stack compared to metal frame sieves
• Compliant with ASTM E11 requirements for Compliance Test Sieves

Included Items

• 3in Acrylic Frame Test Sieve, Stainless, No.30 (600µm)
• Certificate of Conformance to ASTM E11 requirements

Accessories

• Stainless Sieve Pans nest underneath sieves to collect fines.
• Stainless Sieve Covers prevent sample loss during agitation.
• 3in Acrylic Sieve Adapter is necessary to use a stainless steel pan with a 3in Acrylic Sieve.
• Verification Services provide NIST traceable documentation of opening sizes.
