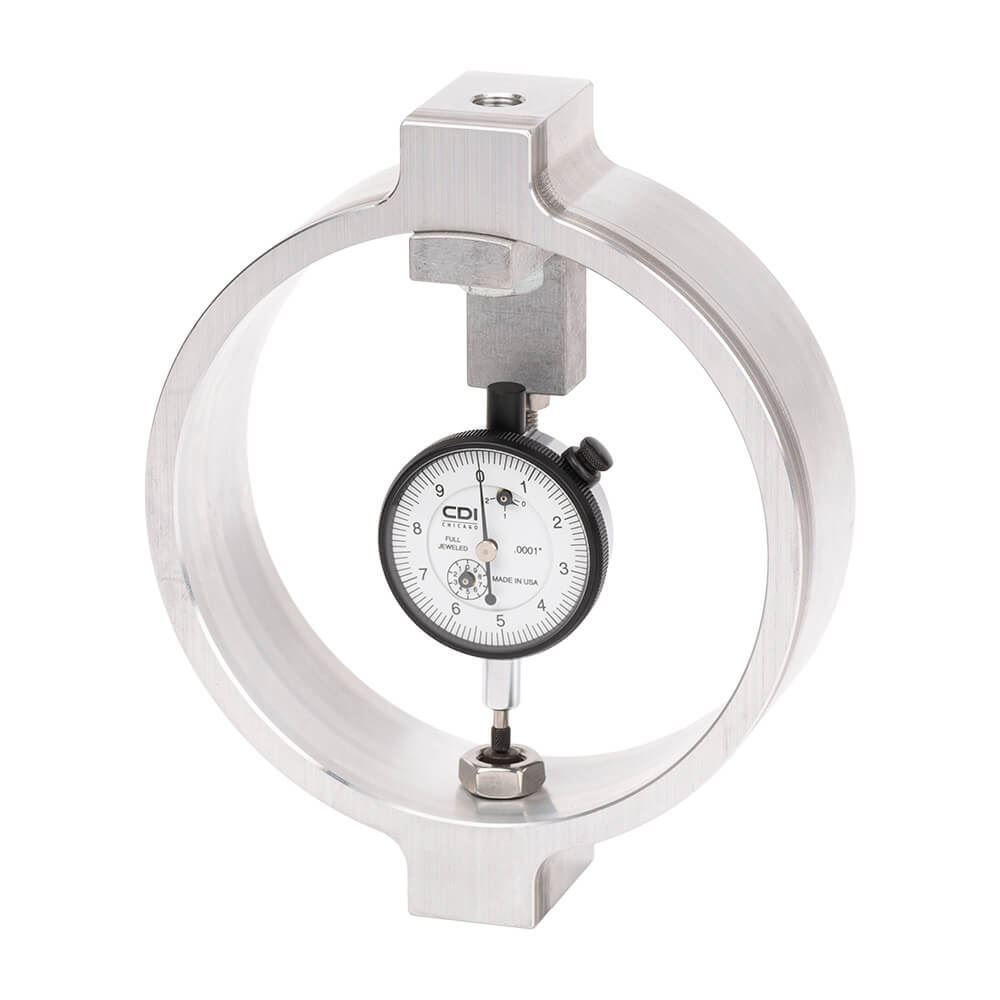

2,000lbf Load Ring

Model: HM-425
Price: $595.00

HM-425 2,000lbf Load Ring is used in California Bearing Ratio (CBR) field testing and other soil testing applications. Made of high-strength aluminum alloy, Load Rings for force measurements have repeatable elastic deformation under varying loads. Loads are measured with an accuracy of ±0.5% using the included mechanical dial indicator with 0.0001in resolution. Measurements are plotted on an included calibration chart to derive force values. Other Load Rings are available in different capacities ranging from 250 to 10,000lbf.


  • Used in CBR and other laboratory testing
  • Accurate to ±0.5%
  • Convenient plotting of force values on included calibration chart

Included Items:

  • HM-425 2,000lbf Load Ring
  • Mechanical Dial Indicator with 0.0001in resolution
Load Capacity 2,000lbf
Estimated Shipping Weight 5.0lb (2.27kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Load Capacity 2,000lbf
Estimated Shipping Weight 5.0lb (2.27kg)
