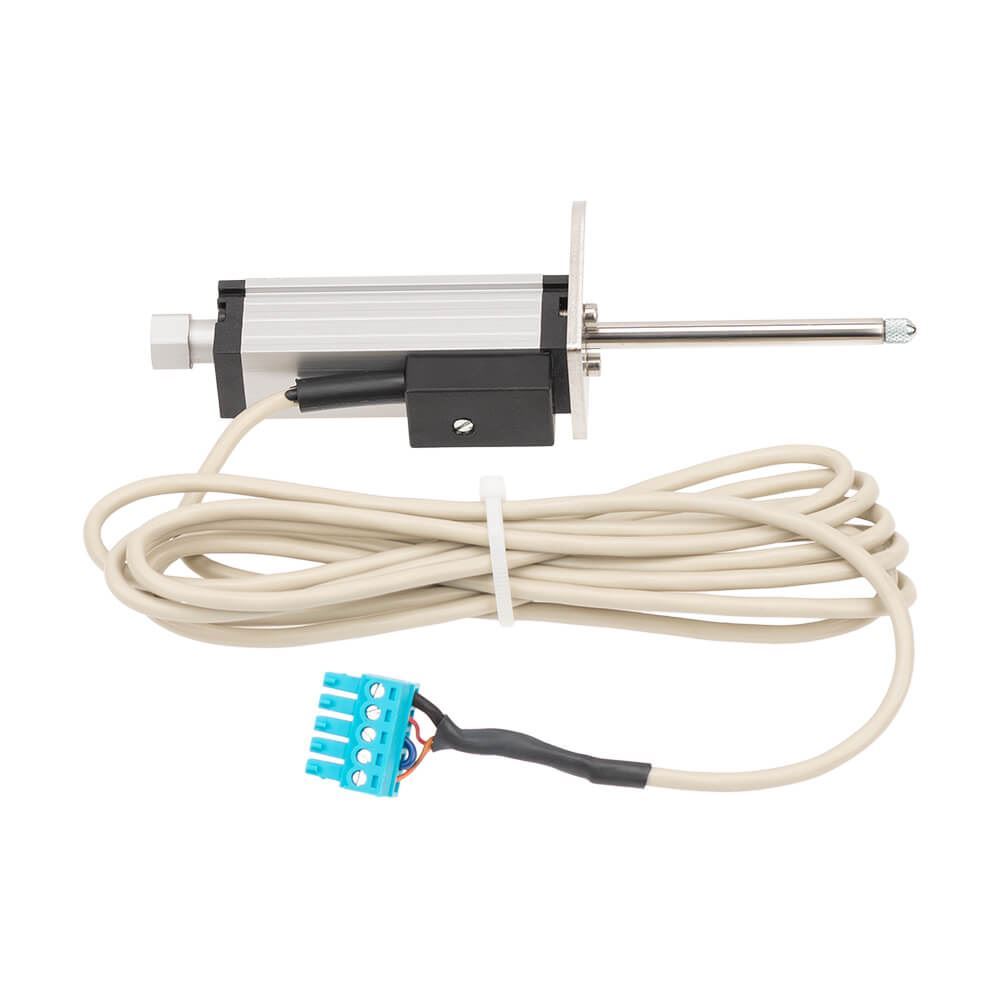

1in Linear Variable Displacement Transducer

Model: HM-739
Price: $385.00

Linear Variable Displacement Transducers provide a digital output related to the displacement of a reference surface. Transducer length is 1in (25mm). The linear displacement transducers feature anodized aluminum housing, stainless steel actuating shaft with anti-rotation device, and include the industry-proven double bearing system on both the actuator shaft and spring to reduce side load errors. Each transducer has a repeatability of 0.002mm, and includes two fixing clamps, screws and gauging head with hardened ball point.


  • Optimal solution for digital displacement measurement
  • Repeatability to 0.002mm
  • Variety of range options available to suit your application
  • Industry-proven double bearing system reduces side load errors

Included Items:

  • 1in Linear Variable Displacement Transducer
  • Two fixing clamps
  • Screws
  • Gauging head with hardened ball point
Range 0–1in (0–25.4mm)
Estimated Shipping Weight 2.0lb (0.91kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Range 0–1in (0–25.4mm)
Estimated Shipping Weight 2.0lb (0.91kg)
