1.6ft³ Hopper Laboratory Split-O-Matic w/ 8 Chutes per Stage

Product Files

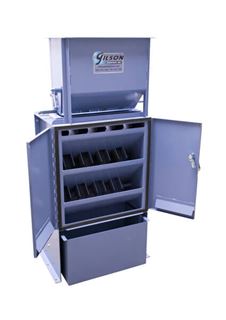

1.6ft³ Hopper Laboratory Split-O-Matic w/ 8 Chutes at 45° per Stage

1.6ft³ Hopper Laboratory Split-O-Matic w/ 8 Chutes at 45° per Stage

Model: SM-4L
$3866.0000
Price: $3,866.00
1.6ft³ Hopper Laboratory Split-O-Matic w/ 8 Chutes at 60° per Stage

1.6ft³ Hopper Laboratory Split-O-Matic w/ 8 Chutes at 60° per Stage

Model: SM-4LC
Call for pricing

The Gilson SM-4L Series Laboratory Split-O-Matic® Splitter with 1.6ft³ (45L) hopper capacity is optimal for large samples that must be quickly and accurately reduced. With a single pass, this unit processes bulk samples of granular materials into small fractions for efficient preparation of test specimens. This Splitter is well-suited for aggregates, sand, gravel, ores, coal and coke or other free-flowing granular materials up to 1in (25mm) topsize.

Exclusive Gilson three stage design allows the user to select sample fractions of 1/2, 1/4, or 1/8 of bulk sample. A selection lever sets internal sample fraction positions, directing selected fraction to the sample pan and the balance to the reject pan. V-bottom chutes precisely align material flow for more accurate divisions. Sample hoppers have a gate-release mechanism for greater control of sample dividing and even distribution of material over the chutes. The SM-4L and SM-4LC have 8 chutes per stage and chute bar width of 2in (51mm). Chutes are sloped at 45° or 60°.

Laboratory Splitter has heavy, welded-steel construction with painted and baked finish. Front panel doors latch shut for superior dust control and open wide for easy cleaning. Sample pans are included, and are size-matched to hopper capacity. Bottom flange is suitable for anchored or freestanding lab use.

Features:

  • Optimal for quickly and accurately reducing large samples
  • Efficiently prepares test samples in a single pass
  • Gate-release hopper offers greater accuracy and control of sample dividing
  • Three-stage design delivers testing versatility with user-selectable sample fractions
  • Meets ASTM and AASHTO standards

Included Items:

  • Gilson 1.6ft³ Hopper Laboratory Split-O-Matic® Splitter w/8 Chutes, 45° or 60° Chute Angle
  • Sample Hopper
  • Sample Pans
Hopper Capacity 1.6ft³ (45L)
Chutes per Stage 8
Chute Angle SM-4LC: 60° or SM-4L: 45°
Sample Fractions 1/2, 1/4, 1/8
Chute Width 2in (51mm)
Maximum Particle Size 1in (25mm)
Product Dimensions without Hopper 25 x 16 x 53in (635 x 406 x 1,346mm), W x D x H
Estimated Shipping Weight

SM-4L: 415.0lb (188.24kg)

SM-4LC: 530.0lb (240.41kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Hopper Capacity 1.6ft³ (45L)
Chutes per Stage 8
Chute Angle SM-4LC: 60° or SM-4L: 45°
Sample Fractions 1/2, 1/4, 1/8
Chute Width 2in (51mm)
Maximum Particle Size 1in (25mm)
Product Dimensions without Hopper 25 x 16 x 53in (635 x 406 x 1,346mm), W x D x H
Estimated Shipping Weight

SM-4L: 415.0lb (188.24kg)

SM-4LC: 530.0lb (240.41kg)

Meets Standard(s):
