Universal Flexural Sets

Universal Flexural Set for 250, 400 or 500 Series Compression Machines

Universal Flexural Set for 250, 400 or 500 Series Compression Machines

Model: MCA-4
$2227.0000
Price: $2,227.00
Universal Flexural Set for 300 Series Compression Machines

Universal Flexural Set for 300 Series Compression Machines

Model: MCA-34
$2207.0000
Price: $2,207.00

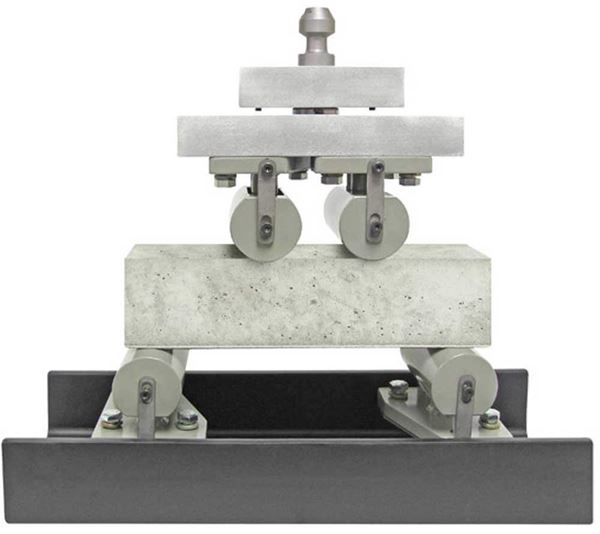

Universal Flexural Set is used to measure flexural strength and determine the modulus of rupture for 6x6in (152x152mm)and 4x4in (101.6x101.6mm) concrete beams, with a 12—30in (305—762mm) span for center or third point loading. The set is compatible with Gilson Concrete Compression Machines and Hveem Testing Machine. The set includes a head assembly with loading blocks and a base with bearing blocks. The head assembly attaches to the compression machine with a locking stem system. Meets ASTM C78/78M, C293/293M, and AASHTO T 97 and T 177 standards for flexural strength testing of concrete beams.

Features:

  • Rugged steel construction
  • Center or third point loading
  • Locking stem system

Included Items:

  • Universal Flexural Set
  • Head assembly and base

Related blogs:

Specimen Size 6 x 6in (152 x 152mm) WxD
Upper Platen Dimensions

MCA-4: 6.25 x 10.5 x 7.13in (165 x 267 x 181mm), WxDxH

MCA-34: 6.25 x 10.5 x 7.13in (165 x 267 x 181mm), WxDxH

Lower Platen Dimensions

MCA-4: 9 x 22.5 x 4.25in (229 x 572 x 108mm), WxDxH

MCA-34: 9 x 22.5 x 4.25in (229 x 572 x 108mm), WxDxH

Estimated Shipping Weight 151.0lb (68.49kg)
