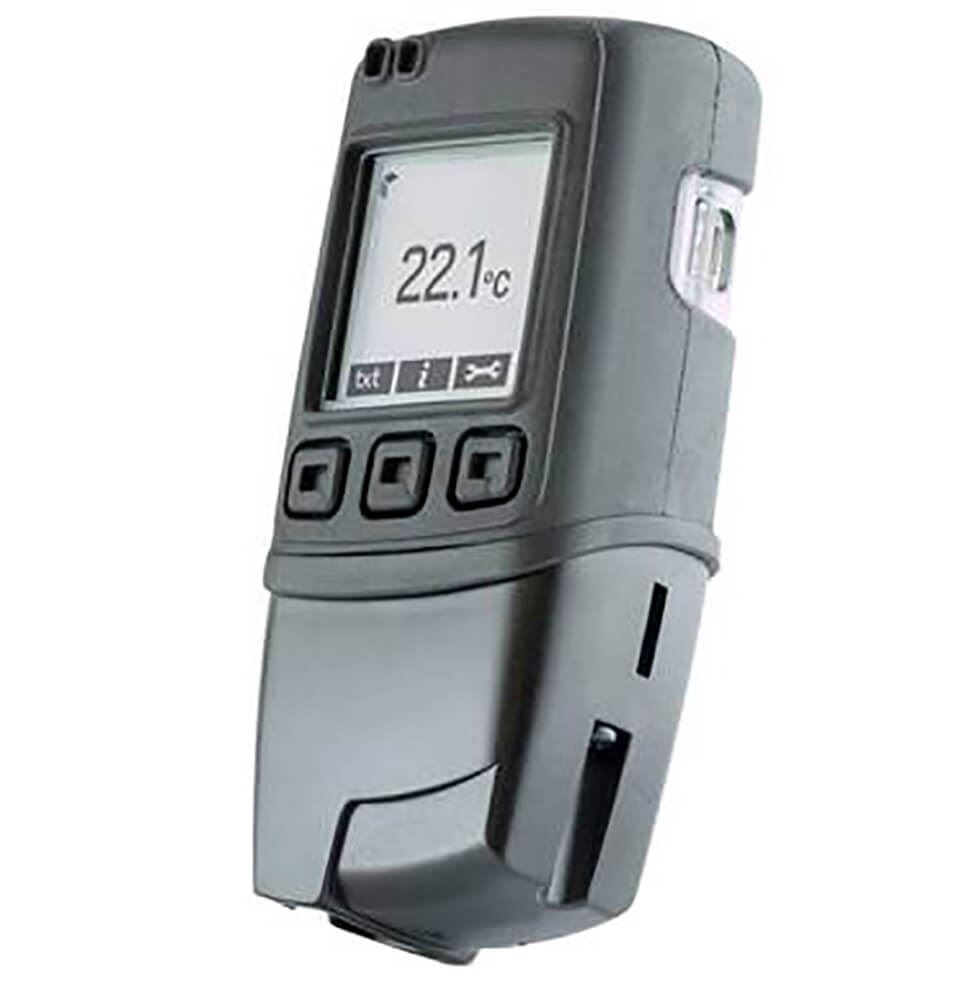

Thermocouple Data Logger w/ Graphic Screen

Model: MA-491
$171.0000
Price: $171.00

Thermocouple Data Logger with Graphic Screen is supplied with a 5ft (1.5m) K-type thermocouple with 32 to 392°F (0 to 200°C) measurement range. Resolution is 0.2°F (0.1°C). It is also compatible with J and T-type thermocouples. Accuracy for the logger is ±2°F (1°C). The logger stores over 250,000 temperature readings from the thermocouple. MA-491 features logging rates between 2 seconds and 1 hour, with immediate, delayed, push-button, or temperature-triggered start mode. Data can be downloaded through connection to a computer’s USB port by using the free downloadable software. The software is compatible with 32- and 64-bit versions of Windows 7, 8, and 10 and allows the operator to download, graph, annotate data and/or export in Excel, PDF and jpg formats.

The high contrast dot-matrix LCD graphic display has three buttons to navigate through the on-screen menu. This menu provides access to real-time trend analysis, data summaries, and the ability to start, stop and restart the data logger independently of the host-PC. The max/min reading can be reset on-screen, creating an event marker in the data which can later be viewed in the graphing software and data file. The data logger includes two lithium AA batteries, which typically last a year before replacing.

Features:

  • Stores over 250,000 temperature readings from K, J, and T-type thermocouples
  • Logging rate of between 2 seconds and 1 hour
  • Free downloadable software

Included Items:

  • Thermocouple Data Logger w / Graphic Screen
  • Two lithium AA batteries

Accessories:

Temperature Range With included Type K thermocouple: 32—392°F (0—200°C)
Resolution 0.2°F (0.1°C)
Accuracy ± 2°F (±1°C)
Product Dimensions 4 x 1.9 x 1.2in (102 x 48.5 x 30.5mm), LxWxD
Estimated Shipping Weight 1.0lb (0.45kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Temperature Range With included Type K thermocouple: 32—392°F (0—200°C)
Resolution 0.2°F (0.1°C)
Accuracy ± 2°F (±1°C)
Product Dimensions 4 x 1.9 x 1.2in (102 x 48.5 x 30.5mm), LxWxD
Estimated Shipping Weight 1.0lb (0.45kg)
