Despatch Electric Oven, Standard (2.3ft³ Chamber)

Despatch Electric Oven, Standard

Despatch Electric Oven, Standard (2.3ft³ Chamber, 120V / 11.6 Amps)

Model: DOL-24A
$3300.0000
Price: $3,300.00
Despatch Electric Oven, Standard

Despatch Electric Oven, Standard (2.3ft³ Chamber, 240V / 5.8 Amps)

Model: DOL-24AF
$3300.0000
Price: $3,300.00

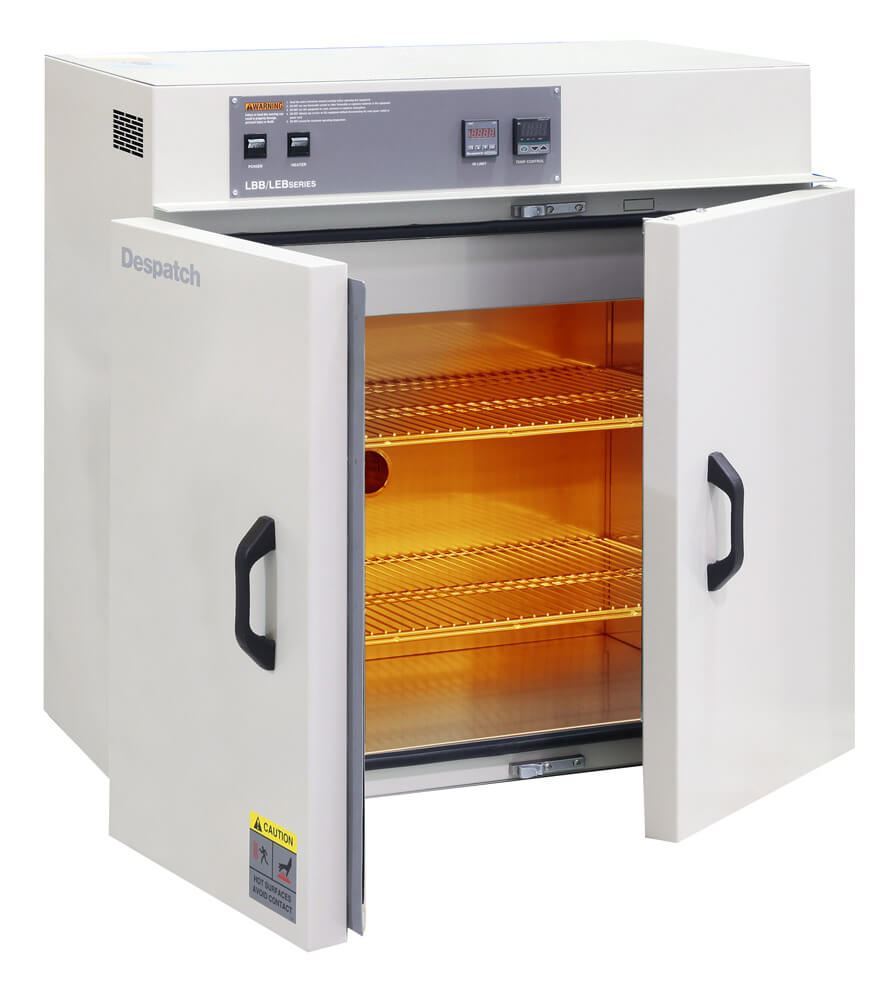

Model DOL-24A and DOL-24AF Standard Despatch Electric Ovens have 2.3ft3 (66L) capacity and forced-air convection. The model DOL-24 series ovens come with two standard shelves with a 50lb (23kg) capacity. Each also comes with a 15 amp cord and NEMA plug.

A single setpoint digital proportioning controller and rocker switches control power and heat. Top-mounted fan and side plenums optimize heat distribution, promoting faster and more even drying. Rated temperature uniformity is ±3° at 150°C.

Optional DOBA-2 Count-Down Timer shuts down heater at the end of each cycle time. Default range is 99.9 hours; but can be changed to 999, 9.99, or .999 hours or minutes.

Features:

  • 2.3ft3 (66L) capacity
  • Forced air convection
  • Maximum temperature 400°F (204°C)

Included Items:

  • 2.3ft3 Standard Despatch Electric Oven, 120 or 240V
  • Two standard shelves with 50lb (23kg) capacity
  • 15 amp Cord and NEMA Plug

Accessories:

Convection Forced-Air
Uniformity ±3°C
Maximum Temperature 400°F (204°C)
Chamber Volume 2.3ft³ (66L)
Electrical 120V / 50-60Hz / 11.6 Amps or 240V / 50-60Hz / 5.8 Amps
Power Supply 15 amp
Plug Rating

DOL-24A: NEMA 5-15 Plug

DOL-24AF: NEMA 6-15 Plug

Chamber Dimensions 18 x 18 x 12in (46 x 46 x 31cm), WxDxH
Product Dimensions 24 x 24.5 x 26in (61 x 63 x 67cm) WxDxH
Estimated Shipping Weight 205.0lbs (92.99kg)
