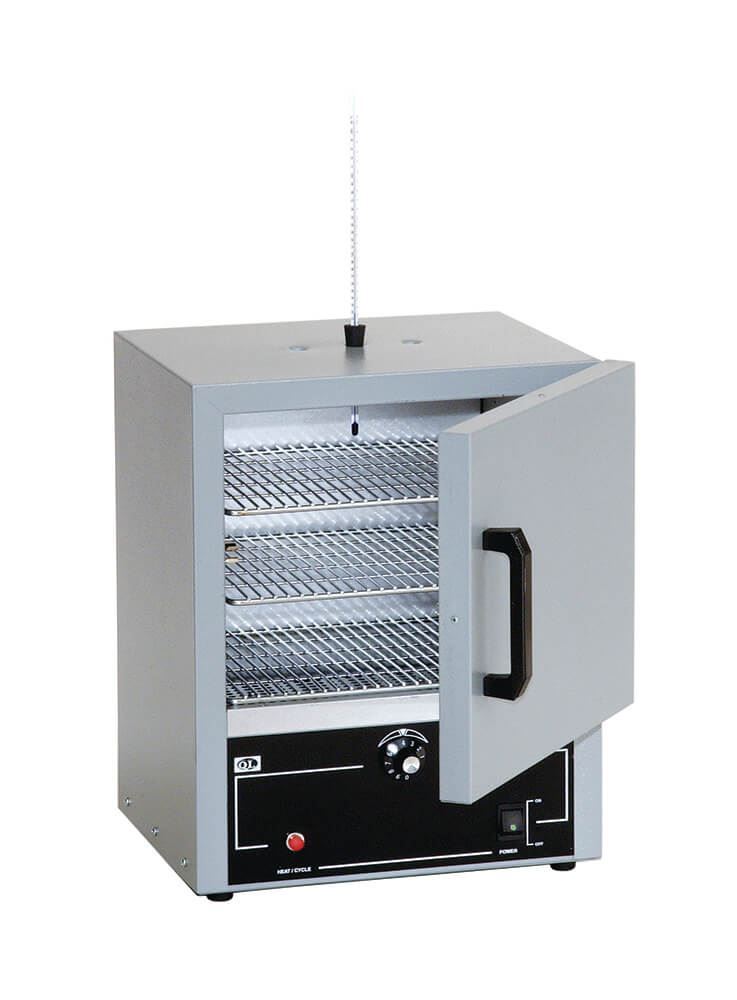

The BO-10R series Quincy Lab Oven has a 0.7ft3 (20L) capacity with gravity convection, bimetallic thermostat controller, 450°F (232°C) maximum temperature and ±3°C uniformity for drying and controlled heating applications. Chamber dimensions are 12x10x10in (30x25x25cm) WxDxH.
Single-door with a high-impact thermoplastic handle, these ovens have one fixed and two adjustable shelves; additional shelves are sold as optional accessories. Control panel includes an illuminated on/off rocker switch and heat/cycle pilot light. Cabinets are heavy steel double-wall construction; the painted exterior has a durable, scratch-resistant hammer-tone finish. The interior is corrosion-resistant aluminized steel, with one-inch high-density mineral wool insulation between interior and exterior walls.
Gravity convection models have a special perforated heat shield to absorb and more evenly distribute radiant heat. The included BOA-7 Spirit-Filled Thermometer allows for precise temperature monitoring.
BO-10R operates on 115V/60Hz and comes with cord and NEMA 5-15P plug. BO-10RF operates on 230V/50-60Hz electrical and comes with a cord and NEMA 6-15P plug.
Inquire for optional factory installed BOA-5 12-Hour Timer to shut off operation at a preset time up to 12 hours. A Hold feature allows for continuous operation.
BO-10R: 115V / 60Hz / 5.2Amps
BO-10RF: 230V / 50-60Hz / 2.6Amps
BO-10R: NEMA 5-15P Plug
BO-10RF: NEMA 6-15P Plug
