Quincy Lab Oven, Forced-Air (1.1ft³ Chamber)

Quincy Lab Oven, Forced-Air (1.1ft³ Chamber, 120V / 60Hz)

Quincy Lab Oven, Forced-Air (1.1ft³ Chamber, 120V / 60Hz)

Model: BO-120
$800.0000
Price: $800.00
Quincy Lab Oven, Forced-Air (1.1ft³ Chamber, 230V / 50-60Hz)

Quincy Lab Oven, Forced-Air (1.1ft³ Chamber, 230V / 50-60Hz)

Model: BO-120F
$819.5000
Price: $819.50

The BO-120 Quincy Lab Oven series has a 1.1ft3 (31L) capacity with forced-air convection, hydraulic thermostat, 450°F (232°C) maximum temperature and ±3°C uniformity for drying and controlled heating applications. Chamber dimensions are 13x13x12in (33x33x30cm) WxDxH.

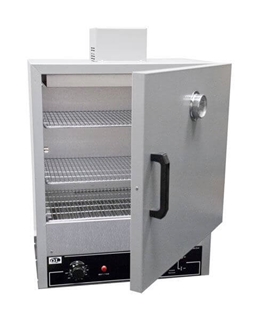

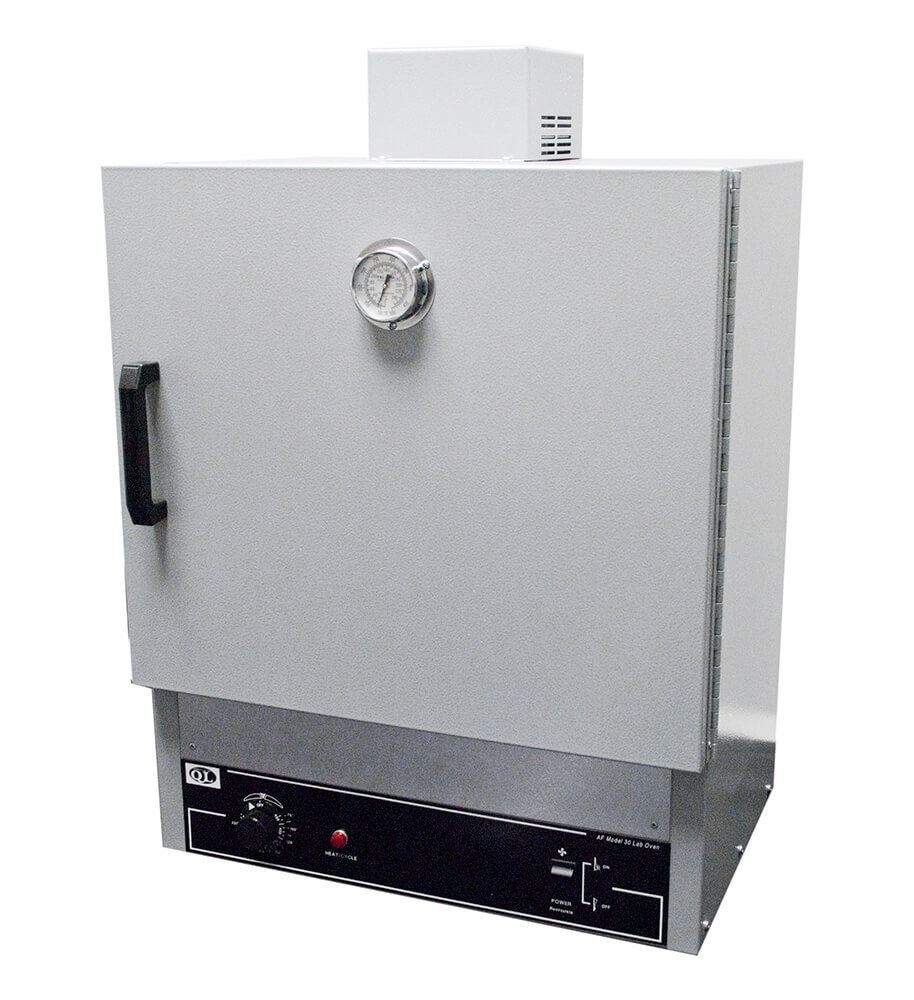

Single-door with a high-impact thermoplastic handle, these ovens have one fixed and two adjustable shelves; additional shelves are sold as optional accessories. Control panel includes an illuminated on/off rocker switch and heat/cycle pilot light. Cabinets are heavy steel double-wall construction; the painted exterior has a durable, scratch-resistant hammer-tone finish. The interior is corrosion-resistant aluminized steel, with one-inch high-density mineral wool insulation between interior and exterior walls.

Forced-air convection models include a special fan and air transfer plenum that allows the oven to maintain a more uniform temperature, and a door-mounted dual-range °F/°C dial thermometer. Unique engineering features include energy-efficient, low-watt density Incoloy-sheathed elements which allow for quick run-up and recovery times.

BO-120 operates on 120V/60Hz and comes with cord and NEMA 5-15P plug. BO-120F operates on 230V/50-60Hz electrical and comes with a cord and NEMA 6-15P plug. Inquire for optional factory installed BOA-5 12-Hour Timer to shut off operation at a preset time up to 12 hours. A Hold feature allows for continuous operation.

Features:

  • 1.1ft3 (31L) capacity
  • 450°F (232°C) maximum temperature with ±3°C uniformity for drying and controlled heating applications
  • Hydraulic thermostat
  • Forced-Air convection
  • Special fan and air transfer plenum maintain uniform temperature
  • Door-mounted dial thermometer
  • 3 shelf capacity accommodates variety of uses

Included Items:

  • 1.1ft3 Lab Oven (120V/60Hz or 230V/50-60Hz)
  • Three shelves
  • Cord and plug
  • Door-mounted dial thermometer

Accessories:

Convection Forced-Air
Uniformity ±3°C
Maximum Temperature 450°F (232°C)
Chamber Volume 1.1ft³ (31L)
Electrical

BO-120: 120V / 60Hz / 8.8Amps

BO-120F: 230V / 50-60Hz / 4.6Amps

Plug Rating

BO-120: NEMA 5-15P Plug

BO-120F: NEMA 6-15P Plug

Chamber Dimensions 13 x 13 x 12in (33 x 33 x 30cm), WxDxH
Product Dimensions 15 x 15 x 25in (38 x 38 x 64cm), WxDxH
Estimated Shipping Weight 66.0lbs (29.94kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Convection Forced-Air
Uniformity ±3°C
Maximum Temperature 450°F (232°C)
Chamber Volume 1.1ft³ (31L)
Electrical

BO-120: 120V / 60Hz / 8.8Amps

BO-120F: 230V / 50-60Hz / 4.6Amps

Plug Rating

BO-120: NEMA 5-15P Plug

BO-120F: NEMA 6-15P Plug

Chamber Dimensions 13 x 13 x 12in (33 x 33 x 30cm), WxDxH
Product Dimensions 15 x 15 x 25in (38 x 38 x 64cm), WxDxH
Estimated Shipping Weight 66.0lbs (29.94kg)
