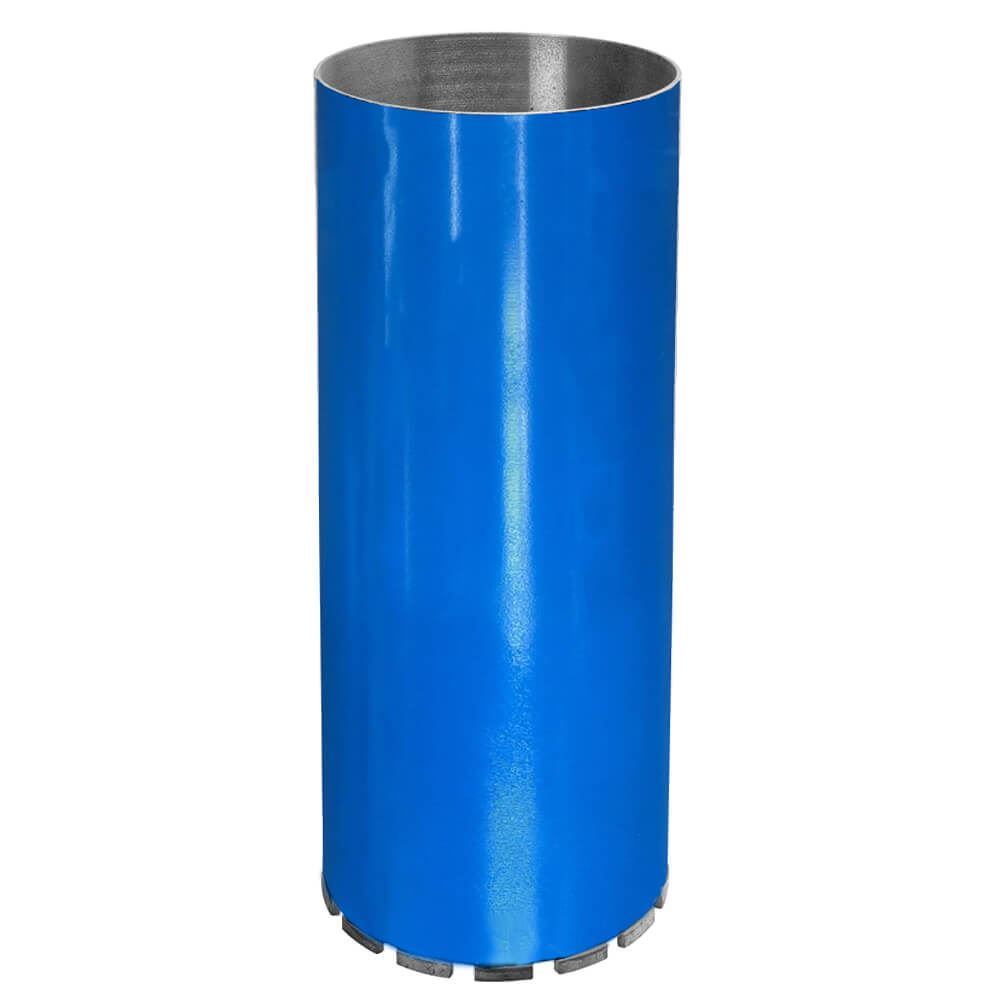

CDA-120 2in (50.8mm) Concrete Core Drill Bit (Open-Head) is used with Gasoline or Electric-Powered Core Drills to obtain drilled cores of hardened concrete or asphalt for laboratory testing or evaluation. The Coring Bit attaches to the drilling machine with a properly sized Expander Set. Diamond Bits perform well in high-output, heavy-use applications, and can be refurbished when worn. Diamond Coring Bits are designed for wet-use with reinforced concrete and similar hard materials. Fast-cutting when used for indicated applications. The standard 14in (356mm) length allows for cutting cores in lengths up to 12in (305mm).
Expander Sets for Open-Head Concrete Coring Bits are required to connect Open-Head Concrete Coring Bits to the drilling machine, and are purchased separately in sizes corresponding to the bit. Final core diameter is approximately 0.25in (6.4mm) smaller than nominal outside diameter.
- Fast-cutting capability for concrete and asphalt materials
- Attaches to drill machine with size-specific Expander Set
- Meets ASTM and AASHTO standards
- 2in Concrete Core Drill Bit (Open-Head)
