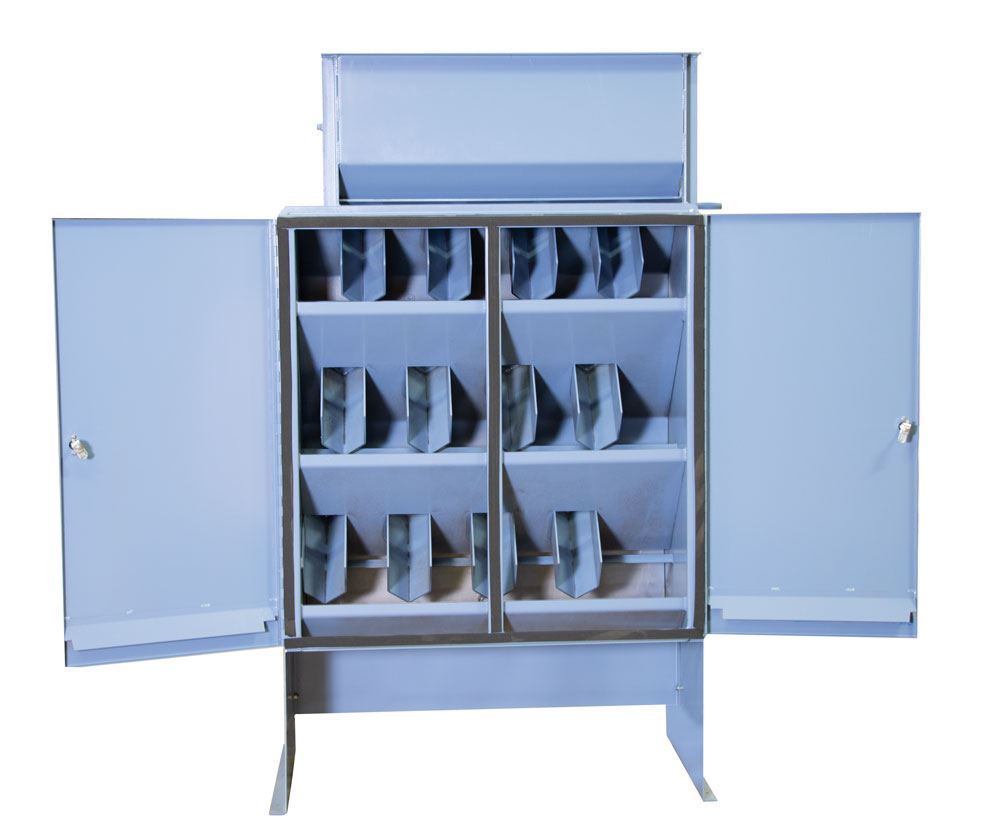

3ft³ Hopper Laboratory Split-O-Matic with 8 Chutes per Stage

Product Files
3ft³ Hopper Laboratory Split-O-Matic with 8 Chutes at 45° per Stage

3ft³ Hopper Laboratory Split-O-Matic with 8 Chutes at 45° per Stage

Model: SM-3L
$14851.0000
Price: $14,851.00
3ft³ Hopper Laboratory Split-O-Matic with 8 Chutes at 60° per Stage

3ft³ Hopper Laboratory Split-O-Matic with 8 Chutes at 60° per Stage

Model: SM-3LC
$21642.0000
Price: $21,642.00

3ft³ (85L) Laboratory Split-O-Matic Splitter is optimal for large samples that must be quickly and accurately reduced. With a single pass, this unit processes bulk samples of granular materials into small fractions for efficient preparation of test specimens. This Splitter is well-suited for aggregates, sand, gravel, ores, coal, coke, or other free-flowing granular materials up to 2in (51mm) topsize.

The exclusive three-stage design allows the user to select sample fractions of 1/2, 1/4, or 1/8 of the bulk sample. A selection lever sets internal sample fraction positions, directing selected fraction to the sample pan and the balance to the reject pan. V-bottom chutes precisely align material flow for more accurate divisions. Sample hoppers have a gate-release mechanism for greater control of sample dividing and even distribution of material over the chutes. The SM-3L and SM-3LC have eight chutes per stage and a chute bar width of 4in (102mm). Chutes are sloped at 45° or 60°.

Laboratory Splitter has heavy, welded-steel construction with a painted and baked finish. Front panel doors latch shut for superior dust control and open wide for easy cleaning. Sample pans are included and are size-matched to hopper capacity. Bottom flange is suitable for anchored or freestanding lab use.

Features:

  • Optimal for quickly and accurately reducing large samples
  • Efficiently prepares test samples in a single pass
  • Gate-release hopper offers higher accuracy and control of sample dividing
  • Three-stage design delivers testing versatility with user-selectable sample fractions
  • V-bottom chutes precisely align material flow for more accurate divisions
  • Meets ASTM and AASHTO standards

Included Items:

  • 3ft³ Hopper Laboratory Split-O-Matic Splitter w/8 Chutes
  • Sample Hopper
  • Sample Pans

Related blogs:

Maximum Particle Size 2in (51mm)
Hopper Capacity 3.0ft³ (85L)
Chutes per Stage 8
Chute Angle

SM-3L: 45°

SM-3LC: 60°

Chute Width 4in (102mm)
Sample Fractions 1/2, 1/4, 1/8
Product Dimensions without Hopper 42 x 25 x 99in (1,067 x 635 x 2,515mm), WxDxH
Estimated Shipping Weight

SM-3L: 850.0lb (385.56kg)

SM-3LC: 106.0lb (48.08kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Maximum Particle Size 2in (51mm)
Hopper Capacity 3.0ft³ (85L)
Chutes per Stage 8
Chute Angle

SM-3L: 45°

SM-3LC: 60°

Chute Width 4in (102mm)
Sample Fractions 1/2, 1/4, 1/8
Product Dimensions without Hopper 42 x 25 x 99in (1,067 x 635 x 2,515mm), WxDxH
Estimated Shipping Weight

SM-3L: 850.0lb (385.56kg)

SM-3LC: 106.0lb (48.08kg)

Meets Standard(s):
