Holmes Enclosed Sample Splitters

0.24ft³ Capacity Holmes Enclosed Sample Splitter, w/ 3/8in Chutes

0.24ft³ Capacity Holmes Enclosed Sample Splitter, w/ 3/8in Chutes

Model: SP-1015FX
$2080.0000
Price: $2,080.00
0.36ft³ Capacity Holmes Enclosed Sample Splitter, w/ 1/2in Chutes

0.36ft³ Capacity Holmes Enclosed Sample Splitter, w/ 1/2in Chutes

Model: SP-1017FX
$2284.0000
Price: $2,284.00
0.48ft³ Capacity Holmes Enclosed Sample Splitter, w/ 3/4in Chutes

0.48ft³ Capacity Holmes Enclosed Sample Splitter, w/ 3/4in Chutes

Model: SP-1018FX
$2208.0000
Price: $2,208.00
1.4ft³ Capacity Holmes Enclosed Sample Splitter, w/ 1/2in Chutes

1.4ft³ Capacity Holmes Enclosed Sample Splitter, w/ 1/2in Chutes

Model: SP-1060
$2817.0000
Price: $2,817.00
1.4ft³ Capacity Holmes Enclosed Sample Splitter, w/ 1/2in Chutes & Stainless Contact Parts

1.4ft³ Capacity Holmes Enclosed Sample Splitter, w/ 1/2in Chutes & Stainless Contact Parts

Model: SP-1060X
$3399.0000
Price: $3,399.00
1.4ft³ Capacity Holmes Enclosed Sample Splitter, w/ 3/4in Chutes

1.4ft³ Capacity Holmes Enclosed Sample Splitter, w/ 3/4in Chutes

Model: SP-1070
$2450.0000
Price: $2,450.00
1.4ft³ Capacity Holmes Enclosed Sample Splitter, w/ 3/4in Chutes & Stainless Contact Parts

1.4ft³ Capacity Holmes Enclosed Sample Splitter, w/ 3/4in Chutes & Stainless Contact Parts

Model: SP-1070X
$3509.0000
Price: $3,509.00
1.4ft³ Capacity Holmes Enclosed Sample Splitter, w/ 1in Chutes

1.4ft³ Capacity Holmes Enclosed Sample Splitter, w/ 1in Chutes

Model: SP-1050
$2266.0000
Price: $2,266.00
1.4ft³ Capacity Holmes Enclosed Sample Splitter, w/ 1in Chutes & Stainless Contact Parts

1.4ft³ Capacity Holmes Enclosed Sample Splitter, w/ 1in Chutes & Stainless Contact Parts

Model: SP-1050X
$3233.0000
Price: $3,233.00

Holmes Enclosed Sample Splitters are suggested for samples of fine, dusty powders, or where moisture retention is important. Holmes splitters have 60° chute slopes, feed guide, and enclosure, as preferred for coal and coke applications to meet ASTM D2013 and D346.

Small Enclosed FX Series Splitters have twenty-four chutes, 0.375in (9.5mm), 0.5in (12mm), or 0.75in (19mm) wide, depending on the model. SP-1017FX and SP-1018FX models have a built-in feed guide to introduce sample evenly across chutes through an open vertical slot. Model SP-1015FX has no feed guide, and the sample is poured directly into chutes. Riffle chutes, sample pans, and feed guides are stainless steel.

Large Enclosed SP-1050, SP-1060, and SP-1070 Splitters are manufactured with fixed chute widths of 0.5in (12mm), 0.75in (19mm), or 1in (25mm), all with a built-in feed guide. Lugs on pan top-ends fit slotted brackets on feed guides for pour feeding. Models with stainless steel contact surfaces are designated with an “X” suffix on the model number. Other models have galvanized surfaces. Dolly accessory SPA-502 has four 2.25in (63mm) diameter casters on the mounting base for mobility in the lab.

Enameled steel enclosure reduces dust to help confine and control the airborne respirable quartz, silica, or crystalline particles. Two sample pans are included; extras are suggested for pouring to feed guide for repetitive splits.

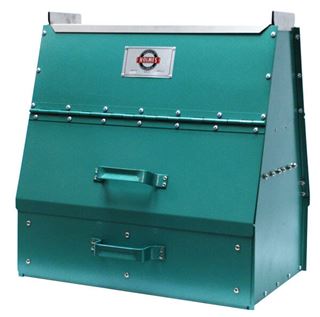

SP-1015FX Small Enclosed (Fixed Width) Sample Splitters with 0.375” Chute Width have a 0.24ft³ (6.8L) capacity and 24 chutes. This model has no feed guide, and the sample is poured directly onto chutes. Dimensions are 11x15x22in (279x381x559mm), and contact parts are composed of stainless steel.

SP-1017FX Small Enclosed Sample Splitters with 0.5” Chute Width have a 0.36ft³ (10.2L) capacity and 24 chutes. The built-in feed guide distributes samples evenly across chutes through an open vertical slot. Dimensions are 15x15x22in (381x381x559mm), and contact parts are composed of stainless steel.

SP-1018FX Small Enclosed Splitters with 0.75” Chute Width have a 0.48ft³ (19.1mm) capacity and 24 chutes. A feed guide distributes material evenly across chutes through an open vertical slot. Dimensions are 21x15x22in (533x381x559mm), and contact parts are composed of stainless steel.

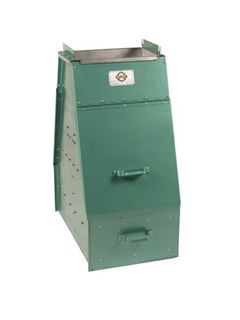

SP-1060 & SP-1060X Large Enclosed Splitters with 0.5” Chute Width have a 1.4ft³ (39.6mm) capacity and 28 chutes. Dimensions are 17x31x34in (432x787x863.6mm). The contact surface of “X” suffix models are stainless steel, and the standard model has galvanized steel surfaces.

SP-1070 & SP-1070X Large Enclosed Splitters with 0.75” Chute Width have a 1.4ft³ (39.6mm) capacity and 18 chutes. Dimensions are 17x31x34in (432x787x863.6mm). The standard model has galvanized steel contact surfaces, and the “X” model has stainless steel surfaces.

SP-1050 & SP-1050X Large Enclosed Splitters with 1” Chute Width have a 1.4ft³ (39.6mm) capacity and 14 chutes. Dimensions are 17x31x34in (432x787x863.6mm). Galvanized contact surfaces. “X” model features stainless steel contact surfaces.

Features:

  • Ideal for sampling fine, dusty powders or where moisture retention is important
  • 60° chute slopes feed guides, and enclosures are optimal for coal and coke applications
  • Compliant with multiple ASTM and AASHTO standards

Included Items:

  • Holmes Enclosed Sample Splitter, Small with 0.375, 0.5 or 0.75in Chutes, or
    Holmes Enclosed Sample Splitter, Large with 0.5, 0.75 or 1in Chutes (galvanized or stainless steel surfaces)
  • Two sample drawers

Accessories:

  • SPA-151 Drawer is an extra drawer for SP-1015FX
  • SPA-171 Drawer is an additional drawer for SP-1017FX
  • SPA-181 Drawer is an extra drawer for SP-1018FX
  • SPA-501 Galvanized Drawer is an extra drawer for SP-1050, SP-1060 and SP-1070
  • SPA-501X Stainless Drawer is an extra drawer for SP-1050X, SP-1060X and SP-1070X
  • SPA-502 Dolly is useful for easy mobility in the lab
Maximum Particle Size

SP-1015FX: 0.187in (4.75mm)

SP-1017FX: 0.25in (6.35mm)

SP-1018FX: 0.375in (9.52mm)

SP-1060 Models: 0.25in (6.35mm)

SP-1070 Models: 0.375in (9.52mm)

SP-1050 Models: 0.5in (12.7mm)

Capacity

SP-1015FX: 0.24ft³ (6.8L)

SP-1017FX: 0.36ft³ (10.2L)

SP-1018FX: 0.48ft³ (13.6L)

SP-1060 Models: 1.40ft³ (39.6L)

SP-1070 Models: 1.40ft³ (39.6L)

SP-1050 Models: 1.40ft³ (39.6L)

Number of Chute Bars

SP-1015FX: 24

SP-1017FX: 24

SP-1018FX: 24

SP-1060 Models: 28

SP-1070 Models: 18

SP-1050 Models: 14

Chute Width

SP-1015FX: 0.375in (9.5mm)

SP-1017FX: 0.5in (12.7mm)

SP-1018FX: 0.75in (19.1mm)

SP-1060 Models: 0.5in (12.7mm)

SP-1070 Models: 0.75in (19.1mm)

SP-1050 Models: 1in (25.4mm)

Product Dimensions

SP-1015FX: 11 x 15 x 22in (279.4 x 381 x 558.8mm), WxDxH

SP-1017FX: 15 x 15 x 22in (381 x 381 x 559mm), WxDxH

SP-1018FX: 21 x 15 x 22in (533.4 x 381 x 559mm), WxDxH

SP-1060 Models: 17 x 31 x 34in (431.8 x 787.4 x 863.6mm), WxDxH

SP-1070 Models: 17 x 31 x 34in (431.8 x 787.4 x 863.6mm), WxDxH

SP-1050 Models: 17 x 31 x 34in (431.8 x 787.4 x 863.6mm), WxDxH

Estimated Shipping Weight

SP-1015FX: 40.0lb (18.14kg)

SP-1017FX: 50.0lb (22.68kg)

SP-1018FX: 65.0lb (29.48kg)

SP-1060: 120.0lb (54.43kg)

SP-1060X: 120.0lb (54.43kg)

SP-1070: 118.0lb (53.52kg)

SP-1070X: 118.0lb (53.52kg)

SP-1050: 115.0lb (52.16kg)

SP-1050X: 115.0lb (52.16kg)
