Heater/Circulator

Heater/Circulator (120V / 60Hz)

Heater/Circulator (120V / 60Hz)

Model: HM-648
$1150.0000
Price: $1,150.00
Heater/Circulator (240V / 50Hz)

Heater/Circulator (240V / 50Hz)

Model: HM-648F
$1150.0000
Price: $1,150.00

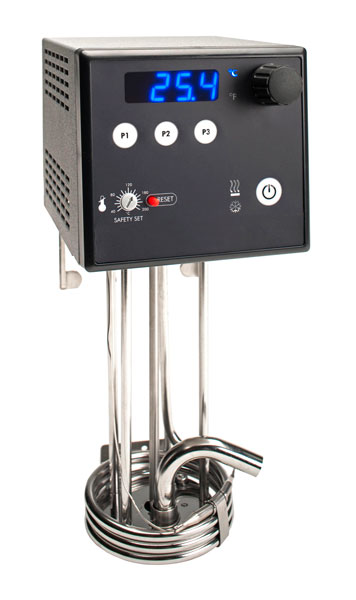

HM-648 Heater/Circulator provides highly accurate temperature control to ±0.09°F (0.05°C) for fluid tanks and baths up to 7.4gal (28L)¹ from ambient + 9° to 302°F (ambient + 5° to 150°C). Heating capacity also easily controls temperatures for most larger concrete curing tanks to specified levels. Temperature range and stability for large tanks is dependent upon tank volume, surface area and ambient temperatures. The PID controller features a LED display that reads out in °C or °F, adjustable overtemperature protection and low-liquid level cut-off. A two-speed circulator switches from 2.4 to 4gpm per minute (9 to 15L) to adapt to a wide range of tank sizes and types. All contact parts are stainless steel. The 1,100 Watt, 7.5in (191mm) long coiled heating element requires only 3in (76mm) immersion, ideal for shallower tanks.1/2in ID tubing can be attached to the adjustable flow director for external circulation. The Circulator clamps to tank walls up to 1.2in (30.2mm) thick. Two-year manufacturer’s warranty. Supplied with a 6ft power cord with grounded plug..

Features:

  • 7.4gal flow rate
  • Stainless steel contact parts
  • Digital LED display readings in °C or °F
  • Accurate temperature control
  • Long heating element

Included Items:

  • Water Bath Heater/Circulator (120V/60Hz or 240V/50Hz)
  • Power Cord w/ grounded plug
Power Requirements 1,100 Watt heating capacity
Flow Rate Up to 7.4gal (28L)
Display LED
Immersion 3—7in (76—178mm)
Mounting Capability Yes
Product Dimensions 5.8 x 4.6 x 12.3in (146 x 12 x 32mm) WxDxH
Estimated Shipping Weight 11.0lb (4.99kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Power Requirements 1,100 Watt heating capacity
Flow Rate Up to 7.4gal (28L)
Display LED
Immersion 3—7in (76—178mm)
Mounting Capability Yes
Product Dimensions 5.8 x 4.6 x 12.3in (146 x 12 x 32mm) WxDxH
Estimated Shipping Weight 11.0lb (4.99kg)
