Draindown Basket

1/4in Mesh Draindown Basket

1/4in Mesh Draindown Basket

Model: HM-56
$155.0000
Price: $155.00
No.8 Mesh Draindown Basket

No.8 Mesh Draindown Basket

Model: HM-56A
$160.0000
Price: $160.00
No.16 Mesh Draindown Basket

No.16 Mesh Draindown Basket

Model: HM-56B
$160.0000
Price: $160.00

Draindown Basket test for uncompacted bituminous mixes effectively measures the amount of asphalt binder that separates from a sample held at elevated temperatures encountered in production, transport, and placement. The test is ideal for Stone Matrix Asphalt (SMA) or open-graded porous asphalt mixtures.

A sample is placed in the basket in a forced-air oven on a pre-weighed paper plate for one hour. The amount of draindown is measured as that portion that separates itself from the sample and is deposited onto the plate outside the basket.

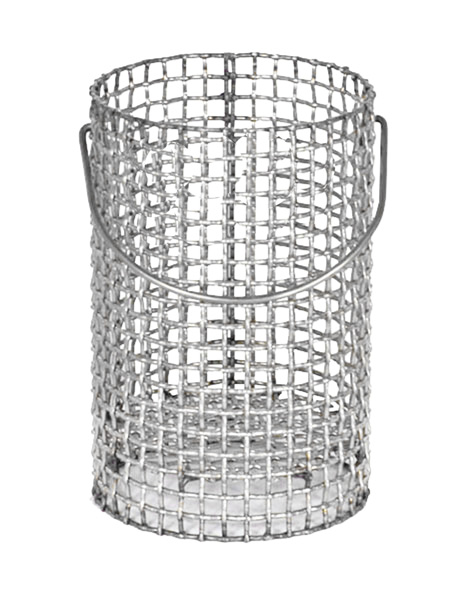

The basket is constructed of quality ASTM E11 stainless steel mesh. Each measure 4.25x5.5in (108x140mm) dia.xH and has a 1in (25mm) bottom skirt with a convenient bail-type handle.

HM-56 is constructed of 1/4in (6.3mm) ASTM E11 stainless steel mesh.

HM-56A is constructed of No.8 (2.36mm) ASTM E11 stainless steel mesh.

HM-56B is constructed of No.16 (1.18mm) ASTM E11 stainless steel mesh.

Features:

  • Optimal for measuring asphalt binder that separates from uncompacted bituminous mixes
  • Ideal for SMA or open-graded porous asphalt mixtures
  • Durable, ASTM E11 stainless steel construction
  • Bail-type handles for easy handling

Included Items:

  • Draindown Basket
ASTM E11 Opening Size

HM-56: 1/4in (6.3mm)

HM-56A: No.8 (2.36mm)

HM-56B: No.16 (1.18mm)

Product Dimensions 4.25 x 5.5in (108 x 140mm), Dia.xH
Estimated Shipping Weight 2.0lb (0.91kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

ASTM E11 Opening Size

HM-56: 1/4in (6.3mm)

HM-56A: No.8 (2.36mm)

HM-56B: No.16 (1.18mm)

Product Dimensions 4.25 x 5.5in (108 x 140mm), Dia.xH
Estimated Shipping Weight 2.0lb (0.91kg)
Meets Standard(s)
