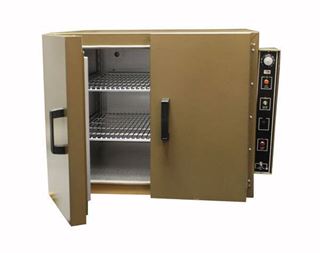

6.6ft³ Bench Oven, 550°F Max (Analog Controller)

6.6ft³ Analog Bench Oven, 550°F Max (230V / 50-60Hz)

6.6ft³ Analog Bench Oven, 550°F Max (230V / 50-60Hz)

Model: BO-550
$1790.0000
Price: $1,790.00
6.6ft³ Analog Bench Oven, 550°F Max with All Stainless Interior (230V / 50-60Hz)

6.6ft³ Analog Bench Oven, 550°F Max with All Stainless Interior (230V / 50-60Hz)

Model: BO-550S
$2113.0000
Price: $2,113.00

6.6ft³ (187L) Bench Ovens have a 550°F (288°C) maximum temperature, ±3.5°C uniformity for drying, and controlled heating applications. Full-width gasket double doors feature high-impact “cool” handles, full-length piano hinges, and 2in (51mm) high-density mineral wool insulation.

The oven holds up to 11 shelves with 80lb (36kg) capacity that can be adjusted on 1.5in (38.1mm) centers and a hydraulic thermostat with a high/low switch controls heating and recovery rates for standard models. Incoloy-sheathed heating elements have low watt density and large .438in (11.1mm) diameter for long service life. UL listed and CSA approved electrical components are 50/60Hz, one phase.

BO-550S is equipped with a factory-installed stainless steel interior.

Features:

  • 6.6ft³ (187L) capacity
  • 550°F maximum temperature with ±3.5°C uniformity for drying and controlled heating applications
  • 11 shelf capacity accommodates a variety of applications
  • Simple high-low switch controls heating and recovery rates

Included Items:

  • 6.6ft³ Bench Oven with or without stainless steel interior
  • Two standard shelves
  • Grounded 6ft (1.8m) cord with plug

Accessories:

Convection Forced-Air
Maximum Temperature 550°F (288°C)
Chamber Capacity 6.6ft³ (187L)
Uniformity ±3.5°C
Chamber Dimensions 26 x 23 x 20in (66 x 58 x 51cm), WxDxH
Electrical 230V/50-60Hz,12.5 Amps, 3,000 Watts
Plug Rating NEMA-6-20P
Product Dimensions 33 x 36 x 24in (84 x 91 x 61cm) WxDxH
Estimated Shipping Weight 195.0lb (88.45kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Convection Forced-Air
Maximum Temperature 550°F (288°C)
Chamber Capacity 6.6ft³ (187L)
Uniformity ±3.5°C
Chamber Dimensions 26 x 23 x 20in (66 x 58 x 51cm), WxDxH
Electrical 230V/50-60Hz,12.5 Amps, 3,000 Watts
Plug Rating NEMA-6-20P
Product Dimensions 33 x 36 x 24in (84 x 91 x 61cm) WxDxH
Estimated Shipping Weight 195.0lb (88.45kg)
