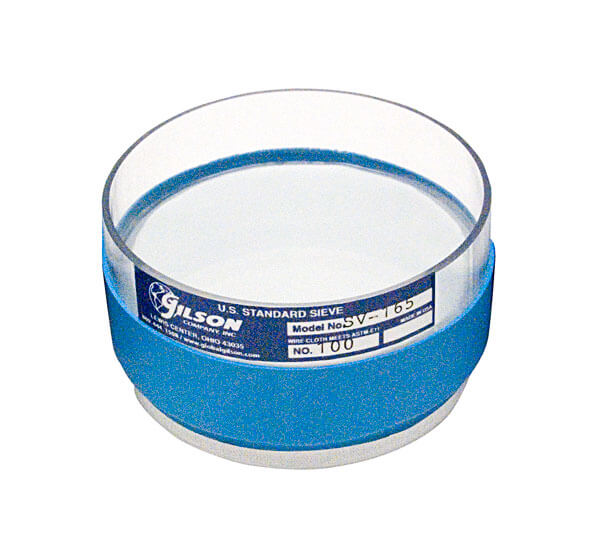

3in Nonmetallic Sieve, 10µm

3in (76mm) diameter Nonmetallic Test Sieve has a woven polyester cloth with a 10µm opening size and a polycarbonate frame. It has a 1.75in (45mm) overall height and a 1.25in (32mm) stacked height. The cloth and frame are assembled with heat-cured acrylic cement and silicone sealant, and an elastic polyolefin band covers the frame joint, providing an effective seal when nesting.

Features

• Manufactured by Gilson for hand sieving small volumes of fine material
• Autoclavable to clean between uses
• Transparent frames make it easy to monitor particle action during separations

Included Items

• 3in (76mm) Nonmetallic Test Sieve with Polyester Mesh, 10µm

Accessories

• Sieve Cover prevents sample loss during agitation.
• Sieve Pan nests underneath sieves to collect fines.
• Sieve Pan with Drain is used for wet-sieving applications.
• Extended Rim Pan can be inserted into a sieve stack to test multiple samples.
• 3/8in Vinyl Tubing is used for wet-sieving applications.
