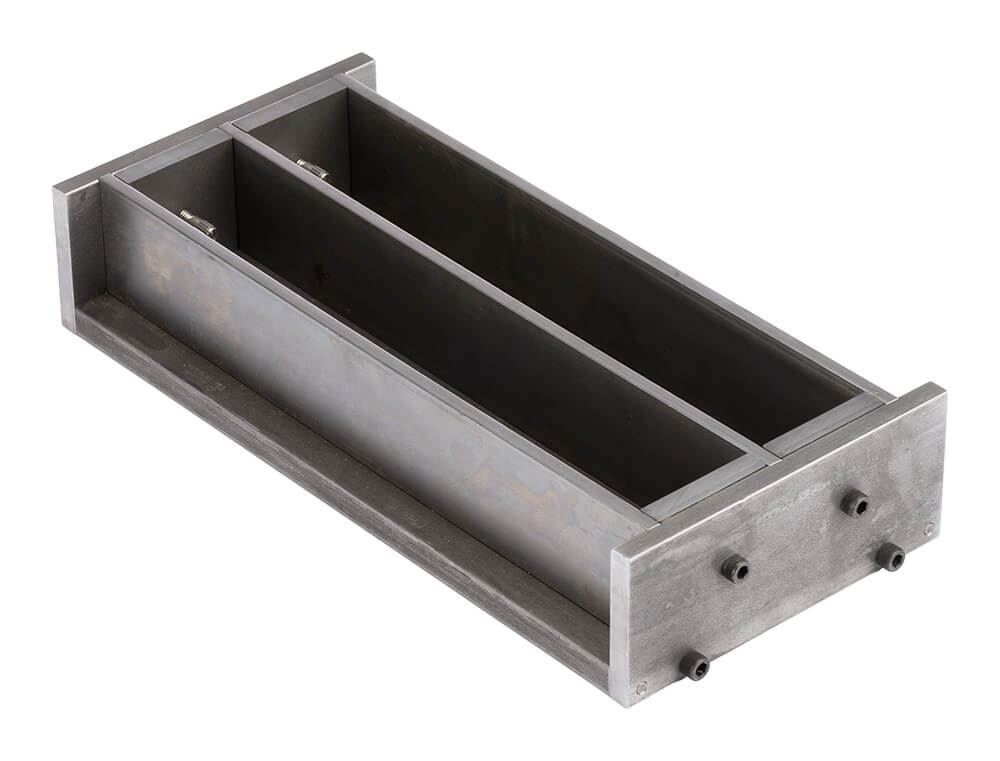

2-Gang Prism Mold, 2x2x10in

Model: HM-255
Price: $209.50

2-Gang Prism Mold, 2x2x10in (51x51x254mm) is used in length-change testing of Portland cement paste, mortar, or concrete. It is also used with the Length Comparator to measure length change in cast prisms from alkali-silica reactivity (ASR) and other such causes. The mold is equipped with a base plate, removable partitions, and end plates of corrosion-resistant steel to provide the required length between ends of HM-268 Gauge Studs cast on ends of bars. Dimensions from the outside end of gauge studs are 11.625in (296mm) with specimen cross-sections of 1x1in (25x25mm).


  • Molds with 2x2in cross-section are made of corrosion-resistant steel
  • Suited for testing different types of concrete material

Included Items:

  • 2-Gang Prism Mold, 2x2x10in


Related blogs:

Specimen Size 2x2x10in (51x51x254mm) WxDxH
Estimated Shipping Weight 21.0lb (9.53kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Specimen Size 2x2x10in (51x51x254mm) WxDxH
Estimated Shipping Weight 21.0lb (9.53kg)
