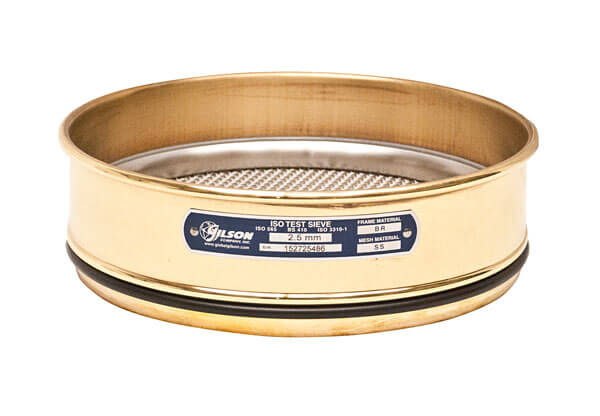

200mm Sieve, Brass/Stainless, Full Height, 100µm with Backing Cloth

Model: V200CF 100U BU
$93.0000
Price: $93.00

200mm diameter ISO Test Sieve has stainless steel woven-wire cloth with 100µm openings and full height brass frame. Each sieve is individually serial numbered. The overall height is 2-5/8in and the stacked height is 2-1/8in. Backing cloth prevents sagging/tearing and improves service life.

Features:

  • Individually serial numbered
  • Compliant with ISO 565, 3310-1 requirements for Compliance Sieves

Included Items:

  • 200mm Sieve, Brass/Stainless, Full Height, 100µm with backing cloth
  • Certificate of Conformance to ISO 565, 3310-1 requirements

Accessories:

  • Sieve Pans nest underneath sieves to collect fines
  • Sieve Covers prevent sample loss during agitation
ISO 565, 3310-1 Opening Size 100µm
Sieve Frame Diameter 200mm
Frame Height Full Height
Stacked Frame Height 2-1/8in
Overall Frame Height 2-5/8in
Material Brass Frame / Stainless Steel Cloth
Backing Cloth Included Yes
Estimated Shipping Weight 2.0lb (0.91kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

ISO 565, 3310-1 Opening Size 100µm
Sieve Frame Diameter 200mm
Frame Height Full Height
Stacked Frame Height 2-1/8in
Overall Frame Height 2-5/8in
Material Brass Frame / Stainless Steel Cloth
Backing Cloth Included Yes
Estimated Shipping Weight 2.0lb (0.91kg)
