10.6ft³ Bench Oven, 450°F Max

10.6ft³ Bench Oven, 450°F Max Temperature (120V)

10.6ft³ Bench Oven, 450°F Max Temperature (120V)

Model: BO-355
$1651.0000
Price: $1,651.00
10.6ft³ Bench Oven, 450°F Max Temperature (230V/50-60Hz)

10.6ft³ Bench Oven, 450°F Max Temperature (230V/50-60Hz)

Model: BO-355F
$1698.0000
Price: $1,698.00
10.6ft³ Stainless Steel Interior Bench Oven, 450°F Max Temperature (120V)

10.6ft³ Stainless Steel Interior Bench Oven, 450°F Max Temperature (120V)

Model: BO-355S
$1991.5000
Price: $1,991.50
10.6ft³ Stainless Steel Interior Bench Oven, 450°F Max Temperature (230V/50-60Hz)

10.6ft³ Stainless Steel Interior Bench Oven, 450°F Max Temperature (230V/50-60Hz)

Model: BO-355SF
$2038.5000
Price: $2,038.50

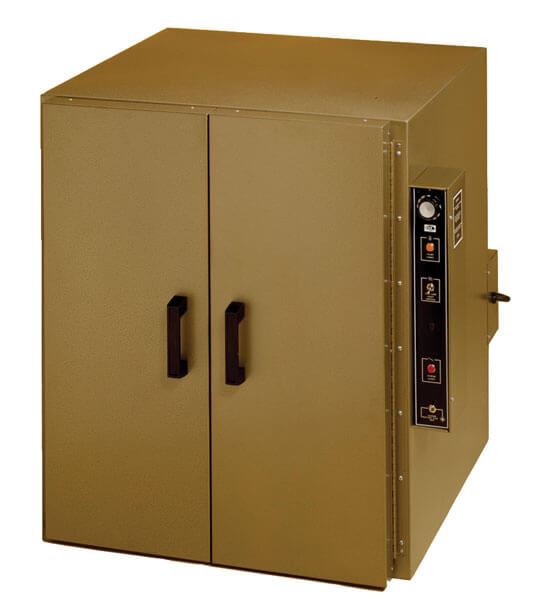

The BO-355 forced-air convection Bench Oven has a 10.6ft3 (300L) capacity, 450°F maximum temperature and ±3.0°C uniformity for drying and controlled heating applications.

Full-width gasketed double doors feature high-impact “cool” handles, full-length piano hinges, and 2in (51mm) high-density mineral wool insulation.

Oven holds up to 17 shelves with 80lb (36kg) capacity that can be adjusted on 1.5in centers and a hydraulic thermostat with a high/low switch controls heating and recovery rates for standard models. Incoloy-sheathed heating elements have low watt density and large 7/16in diameter for long service life. UL listed and CSA approved electrical components are 50/60Hz, one phase.

BO-355 and BO-355S models operate at 115V/50-60Hz, and come with cord and NEMA 5-20P plug. BO-355F and BO-355SF operate at 230V/50-60Hz and are supplied with a NEMA 6-20P plug.

BO-355S series ovens are equipped with a factory-installed stainless steel interior.

Inquire for optional factory installed 12-Hour Timer for Bench and Lab Ovens to shut off operation at a preset time up to 12 hours. A Hold feature allows for continuous operation.

Features:

  • 10.6ft3 (300L) capacity
  • 450°F maximum temperature with ±3.0°C uniformity for drying and controlled heating applications
  • 17 shelf capacity accommodates variety of applications
  • Simple high/low switch controls heating and recovery rates

Included Items:

  • 10.6ft3 Bench Oven (120V or 230V), with or without stainless steel interior
  • Two standard shelves
  • Grounded 6ft (1.8m) cord with plug

Accessories:

Convection Forced-Air
Uniformity ±3°C
Maximum Temperature 450°F (232°C)
Chamber Volume 10.6ft³ (300L)
Plug Rating

BO-355 & BO-355S: NEMA 5-20P Plug

BO-355F & BO-355SF: NEMA 6-20P Plug

Electrical

BO-355 & BO-355S: 115V / 50-60Hz / 16Amps

BO-355F & BO-355SF: 230V / 50-60Hz / 8.9Amps

Chamber Dimensions 26 x 24 x 30in (66 x 61 x 76cm), WxDxH
Product Dimensions 33 x 36 x 34in (84 x 91x 86cm), WxDxH
Estimated Shipping Weight 225.0lbs (102.06kg)
  • Question: What type of hookups are necessary with this model?
    • Answer: The NEMA plug configurations for the 230V units are 15AMP 6-15P or 20AMP 6-20P.
