TR Series Viscosity Spindles

TR8 Viscosity Spindle

TR8 Viscosity Spindle

Model: LPA-708
$1024.0000
Price: $1,024.00
TR9 Viscosity Spindle

TR9 Viscosity Spindle

Model: LPA-709
$1024.0000
Price: $1,024.00
TR10 Viscosity Spindle

TR10 Viscosity Spindle

Model: LPA-710
$1024.0000
Price: $1,024.00
TR11 Viscosity Spindle

TR11 Viscosity Spindle

Model: LPA-711
$1024.0000
Price: $1,024.00
TR Series Viscosity Spindles Set

TR Series Viscosity Spindles Set

Model: LPA-70
$3901.0000
Price: $3,901.00

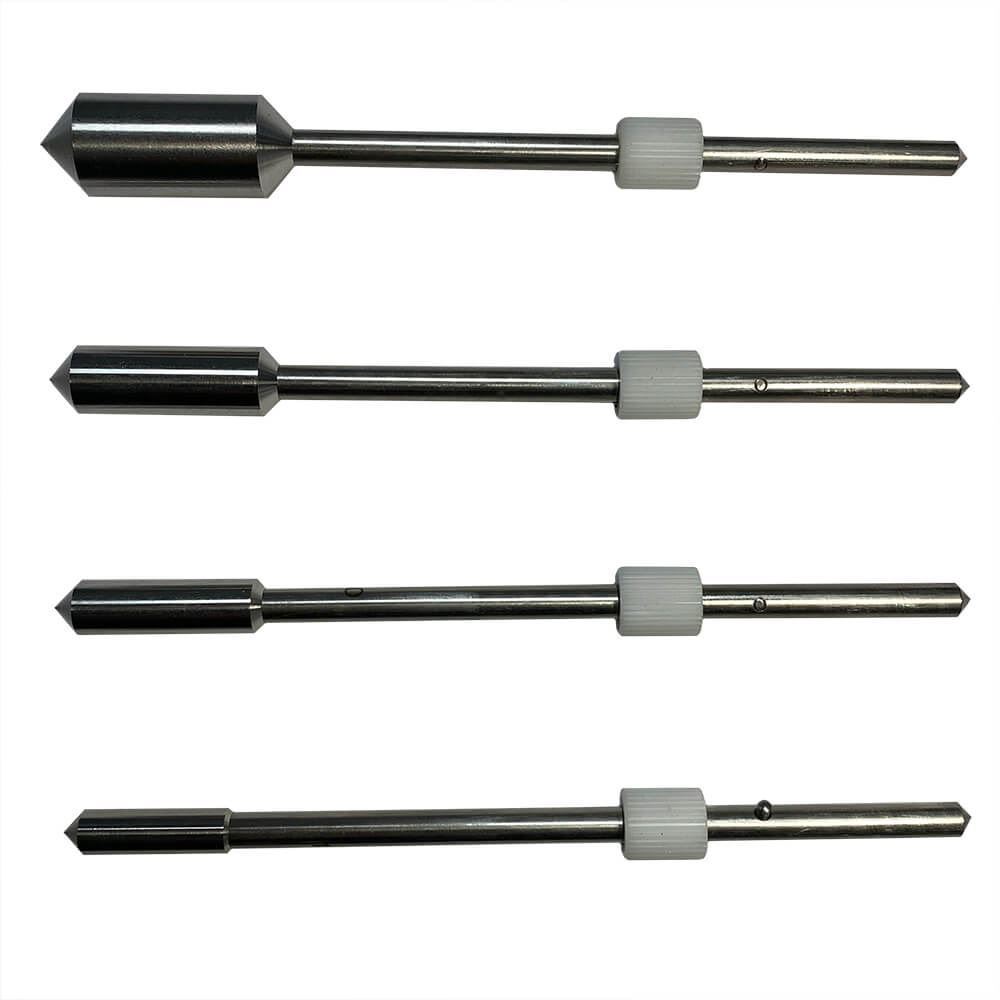

Rotational Viscosity Spindles for LP-72 Standard and LP-74 High-Performance Rotational Viscometers are designated from lower viscosity TR8 to higher viscosity TR11. Order extra Spindles for a wider viscosity range. Spindles can be purchased as individual units or in a complete set of four spindles. Sample Chambers are purchased individually to fit spindles. Additional stainless-steel chambers and spindles are recommended for labs running multiple samples. Inquire for spindles for other viscosity applications.

LPA-708 TR8 spindle has a 0.92N shear rate with a spindle viscosity range for standard Viscometer is 14 to 3,000,000mPa.s and a spindle viscosity range for the high-performance Viscometer is 2 to 7,000,000mPa.s. It is most often used for asphalt binder tests.

LPA-709 TR9 spindle has a 0.34N shear rate with a spindle viscosity range for standard Viscometer is 75 to 16,000,000mPa.s and a spindle viscosity range for the high-performance Viscometer is 12 to 37,000,000mPa.s.

LPA-710 TR10 spindle has a 0.28N shear rate with a spindle viscosity range for standard Viscometer is 146 to 31,000,000mPa.s and a spindle viscosity range for the high-performance Viscometer is 24 to 72,000,000mPa.s.

LPA-711 TR11 spindle has a 0.25N shear rate with a spindle viscosity range for standard Viscometer is 300 to 64,000,000mPa.s and a spindle viscosity range for the high-performance Viscometer is 50 to 149,000,000mPa.s.

LPA-70 is a complete set of the four TR Series Spindles, TR8, TR9, TR10, and TR11.

Features:

  • Stainless-steel construction
  • Fits Standard or High-Performance Rotational Viscometers

Included Items:

  • Rotational Viscosity Spindle (TR8, TR9, TR10, TR11, or full set)

Accessories:

  • Sample Chambers are purchased individually to contain the specimen for temperature conditioning and testing.
Estimated Shipping Weight

LPA-708: 2.0lb (0.91kg)

LPA-709: 2.0lb (0.91kg)

LPA-710: 2.0lb (0.91kg)

LPA-711: 2.0lb (0.91kg)

LPA-70: 8.0lb (3.63kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Estimated Shipping Weight

LPA-708: 2.0lb (0.91kg)

LPA-709: 2.0lb (0.91kg)

LPA-710: 2.0lb (0.91kg)

LPA-711: 2.0lb (0.91kg)

LPA-70: 8.0lb (3.63kg)

Meets Standard(s):
