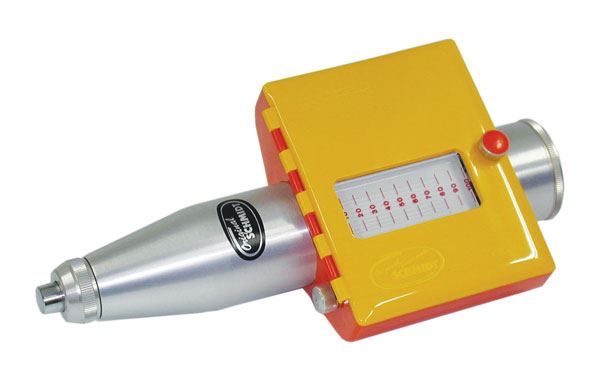

Schmidt Recording Concrete Test Hammer

The HM-101 Schmidt Recording Concrete Test Hammer automatically records concrete rebound test numbers as a bar chart on a paper strip. Each strip chart logs up to 4,000 impacts. This feature eliminates tedious and error-prone recordings of data with paper and pencil, making it even easier to use for nondestructive testing of hardened concrete. HM-101 is supplied with a sturdy plastic carrying case, paper charts and a grinding stone. HMA-363 Replacement Recording Paper is sold separately in a five-roll package.

Features:

• Fast, accurate concrete rebound Test Hammer with automatic logging capability
• 1,400–8,000psi (10–55mPa) range of use

Included Items:

• Schmidt Recording Concrete Test Hammer
• Carrying case
• Paper charts
• Grinding stone

Accessories:

• HM-76B Test Hammer Calibration Anvil used for checking hammer calibration after 1,000 or 2,000 impacts
• HMA-363 Replacement Recording Paper for Concrete Test Hammer records up to 4,000 impacts with each roll
